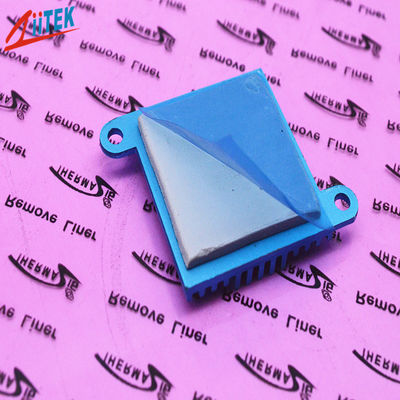

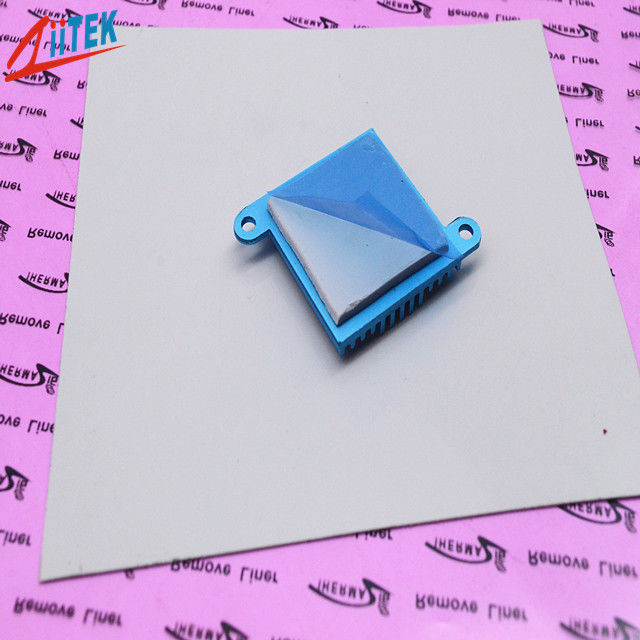

Manufacture Ultra Soft Thermal Conductive Pad 0.5mmT Gray Thermal Gap Pad For Memory Modules
Company Profile
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!
Product descriptions
TlF100-02S series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.
TIF100-02S Datasheet-REV02.pdf
Features
> Good thermal conductivity
> Naturally tacky needing no furtheradhesive coating
> Soft and Compressible for low stressapplications
> Available in varies thickness
Application
> LED Ceilinglamp
> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power
> Waterproof LED Power
> SMD LED module
> LED Flesible strip, LED bar
> LED Panel Light
> LED floor light
> Routers
| Typical Properties of TIF100-02S Series |
| Color |
Gray |
Visual |
| Construction & Compostion |
Ceramic filled silicone elastomer |
****** |
| Thickness range |
0.020“(0.5mm~0.200"(5.0mm”) |
ASTM D374 |
| Hardness |
45±5 (Shore 00) |
ASTM 2240 |
| Specific Gravity |
2.3 g/cc |
ASTM D297 |
| Continuos Use Temp(℃) |
-40~160 |
****** |
| Dielectric Breakdown Voltage |
>5500 VAC |
ASTM D149 |
| Dielectric Constant |
4.5 |
ASTM D150 |
| Volume Resistivity |
1.0X10¹² Ohm-meter |
ASTM D257 |
| Thermal conductivity |
1.5 W/m-K |
ASTM D5470 |
| Outgassing (TML) |
0.35% |
ASTM E595 |
| Flame Rating |
V-0 |
UL 94 |
Standard Thicknesses
0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:
8" x 16"(203mm x406mm),Individual die cut shapesand and custom thickness can be supplied.
Please contact us for confirming
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
