Name: 8.0W Silicone Thermal Pad For CPU GPU For Various Strict Application Fields
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF720QE
Price: 4.10 USD
Availability: InStock

Home Products Silicone Thermal Pad

8.0W Silicone Thermal Pad For CPU GPU For Various Strict Application Fields

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL & RoHS
Model Number:	TIF720QE

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm cartons
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	1000000 pcs/month

Contact Now

Detailed Product Description

Products Name:	8.0W Silicone Thermal Pad For CPU GPU For Various Strict Application Fields	Certification:	RoHS And UL Recognized
Color:	Gray	Hardness:	35±10 Shore 00
Sample:	Sample Avaliable	Thermal Conductivity:	8.0 W/mK
Flam Rating:	94 V0	Thinkness Range:	0.020"（0.5mm）
Keywords:	Thermal Pad
Highlight:	GPU Silicone Thermal Pad , 8.0W Silicone Thermal Pad , CPU Silicone Thermal Pad

8.0W Silicone Thermal Pad For CPU GPU For Various Strict Application Fields

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

TIF720QE is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.

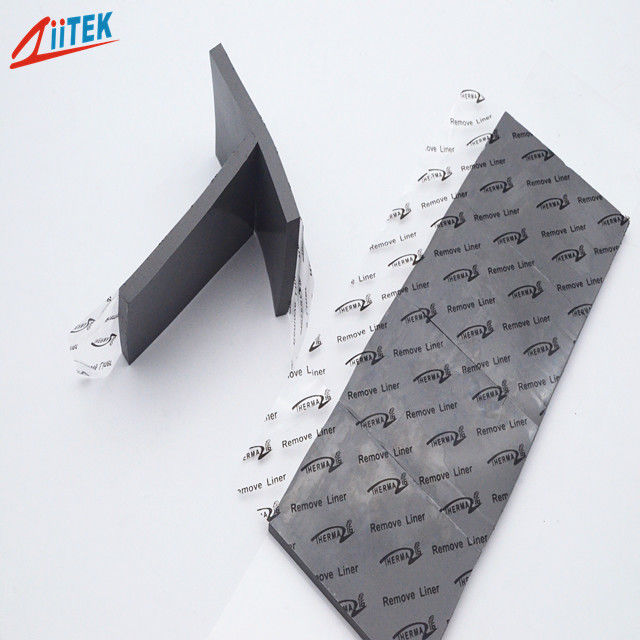

8.0W Silicone Thermal Pad For CPU GPU For Various Strict Application Fields 0

Features

> Good thermal conductive : 8.0W/mK
> Soft and Compressible for low stressapplications
> Broad range of hardnesses available
> High tack surface reduces contact resistance

> Electrically isolating
> High durability

> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses

Applications

> Set top boxes
> Audio and video components
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Micro heat pipe thermal solutions
> Automotive engine control units
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board

Typical Properties of TIF720QE Series
Color	Gray	Visual
Construction & Compostion	Ceramic filled silicone elastomer	*******
Specific Gravity	3.5g/cc	ASTM D297
Thickness range	0.020"(0.5mm)	ASTM C351
Hardness	35±10 Shore 00	ASTM 2240
Dielectric Breakdown Voltage	>5500 VAC	ASTM D412
Operating Temp	-45 ~200℃	*******
Dielectric Constant	5.5 MHz	ASTM D150
Volume Resistivity	1.0X10¹²Ohm-meter	ASTM D257
Fire rating	94 V0	equivalent UL
Thermal conductivity	8.0W/mK	ASTM D5470

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)

Individual die cut shapes and custom thickness can be supplied.

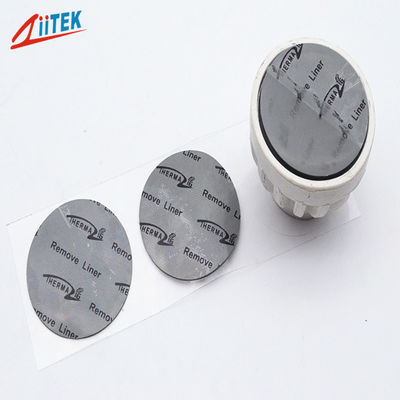

8.0W Silicone Thermal Pad For CPU GPU For Various Strict Application Fields 1

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated.

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
