Name: Insulation Silicone Thermal Pad 8.0W Thermal Gap Filler Cooling Pad 2mmT For Ev Battery
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF780QE
Price: 4.10 USD
Availability: InStock

Home Products Silicone Thermal Pad

Insulation Silicone Thermal Pad 8.0W Thermal Gap Filler Cooling Pad 2mmT For Ev Battery

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL & RoHS
Model Number:	TIF780QE

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm cartons
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	1000000 pcs/month

Contact Now

Detailed Product Description

Products Name:	Insulation Silicone Thermal Pad 8.0W Thermal Gap Filler Cooling Pad 2mmT For Ev Battery	Certification:	RoHS And UL Recognized
Thinkness Range:	2.0mmT	Color:	Gray
Flam Rating:	94 V0	Hardness:	35±10 Shore 00
Thermal Conductivity:	8.0 W/mK	Keywords:	8.0W Thermal Pad
Sample:	Sample Avaliable
Highlight:	Ev Battery Silicone Thermal Pad , 2mmT Silicone Thermal Pad , 8.0W Silicone Thermal Pad

Insulation Silicone Thermal Pad 8.0W Thermal Gap Filler Cooling Pad 2mmT For Ev Battery

Company Profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

TIF780QE is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.

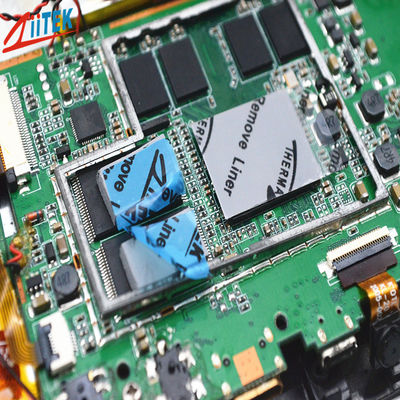

Insulation Silicone Thermal Pad 8.0W Thermal Gap Filler Cooling Pad 2mmT For Ev Battery 0

Features

> Good thermal conductive : 8.0W/mK
> Soft and Compressible for low stressapplications
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized
> Easy release construction
> Electrically isolating
> High durability

Applications

> Set top boxes
> Audio and video components
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics

Typical Properties of TIF780QE Series
Color	Gray	Visual
Construction & Compostion	Ceramic filled silicone elastomer	*******
Specific Gravity	3.5g/cc	ASTM D297
Thickness range	2.0mm	ASTM C351
Hardness	35±10 Shore 00	ASTM 2240
Dielectric Breakdown Voltage	>5500 VAC	ASTM D412
Operating Temp	-45 ~200℃	*******
Dielectric Constant	5.5 MHz	ASTM D150
Volume Resistivity	1.0X10¹²Ohm-meter	ASTM D257
Fire rating	94 V0	equivalent UL
Thermal conductivity	8.0W/mK	ASTM D5470

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)

Individual die cut shapes and custom thickness can be supplied.

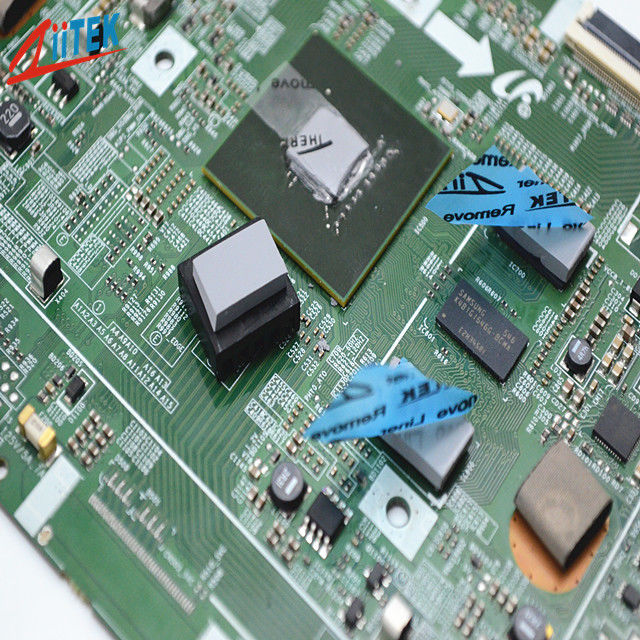

Insulation Silicone Thermal Pad 8.0W Thermal Gap Filler Cooling Pad 2mmT For Ev Battery 1

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.

Tag:

Contact Person: Dana Dai

Tel: +86 18153789196
