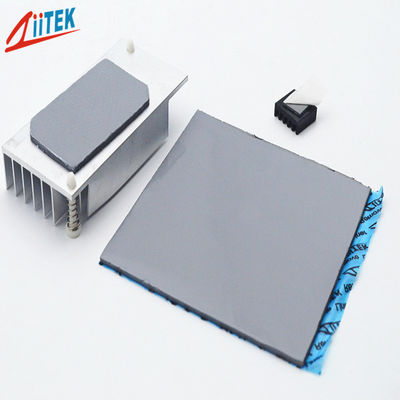

10.0W/mK Thermal Pad for CPU GPU Cooling SSD Thermal Paste Thermal Grease Thermal Pads

Thermal Pad 0.5mm CPU GPU Cooling SSD Thermal Paste Thermal Grease Thermal Pads For Graphics Card

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL

TIF^®100 10055-62 series of thermal interface materials is specifically designed to fill air gaps between heat-generating components and heat sinks or metal baseplates. It offers excellent compliance, alowing it to conform fightly to heat sources with varying shapes and height dferences. Even in confined or iregular spaces,it maintains stable thermal conductivity, enabling efficient heat transfer from discrete components or the entire PCB to the metal housing or heat sink. This significantly improves the heat dissipation efficiency of electronic components, thereby enhancing operational stability and extending device lifespan.

Features:
> Excellent thermal conductivity 10.0W/mK

> Naturally tacky needing no further adhesive coating
> High compliance adapts to various pressure application environments
> Available in varies thicknesses
> Broad range of hardnesses available
> Moldability for complex parts

Applications:
> Heat dissipation structure for radiators

> Telecommunication equipment
> Automotive electronics
> Battery packs for electric vehicles

> Cooling components to the chassis of frame
> High speed mass storage drives
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
> Notebook

Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)



Consult the factory to alternate thickness.



Product Specification
Product Thicknesses: 0.03"(0.75mm)~0.200"(5.00mm)  with increments of 0.01(0.25mm)

Product Sizes:16" x 16"(406mm x406mm)



Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1(Single-sided hardening).

Adhesive Options: A1/A2(Single-sided/Double-sided adhesive).
Notes:FG (Fiberglass) provides enhanced strength, suitable for materials with thicknesses of 0.01 to 0.02 inch (0.25to 0.5mm).

The TIF series is available in custom shapes and various forms.For other thicknesses or more information, please contact us.

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated.



FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.



Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
