High Temperature Resistance Silicone Heating Thermal Conductive Insulation For Gpu Cpu Heatsink
Dongguan Ziitek Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.

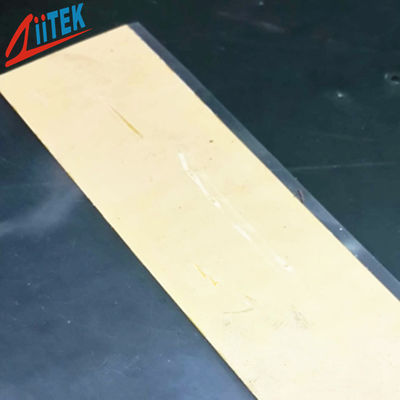

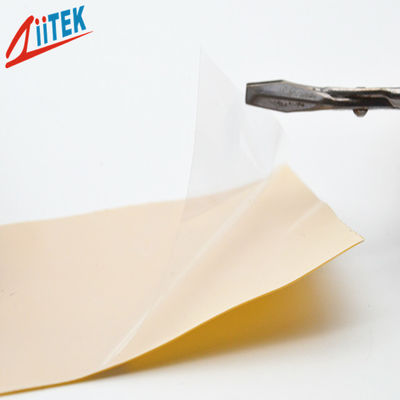

The TIS®805-16-03 Series of products are highly efficient insulating products and they also have thermal conductivity. It achieves the effect of both insulation and heat conduction by adding insulating silicone base material to the heat-conducting material.
Features:
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures
> Easy release construction
> Electrically isolating
> High durability
Applications:
> Car Battery & Power Supply
> Power semiconductors
> Audio and Video components
> Motor controllers
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
| Typical Properties of TIS®805-16-03 Series |
| Property |
Value |
Test Method |
| Color |
Yellow |
Visual |
| Construction &Compostion |
Ceramic filled silicone elastomer /Polyimide film |
****** |
| Thickness range |
0.005inch (0.127mm)
|
ASTM D374 |
| Tensile Strength(MPa) |
12 |
ASTM D412 |
| Density |
2.4 g/cc |
ASTM D297 |
| Continuos Use Temp |
-60 to 180℃ |
****** |
| Breakdown Voltage(V/mm) |
3000 |
ASTM D149 |
| Dielectric Constant @ 1MHz |
6.0
|
ASTM D150 |
| Volume Resistivity |
1.0X1012 Ohm-meter |
ASTM D257 |
| Fire rating |
94 V0 |
UL94(E331100) |
| Thermal conductivity |
1.6W/m-K |
ASTM D5470 |
| Thermal impedance(℃-in²/W)@30psi |
0.5 |
ASTM D5470 |
Standard Thicknesses
0.005inch (0.127mm)
Standard Sizes
12" x 160"(304mm * 48.76M)
The TlS series can be die-cut into different shapes and provided. lf you need different thicknesses, please contact our company.
Packaging Details & Lead time
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
