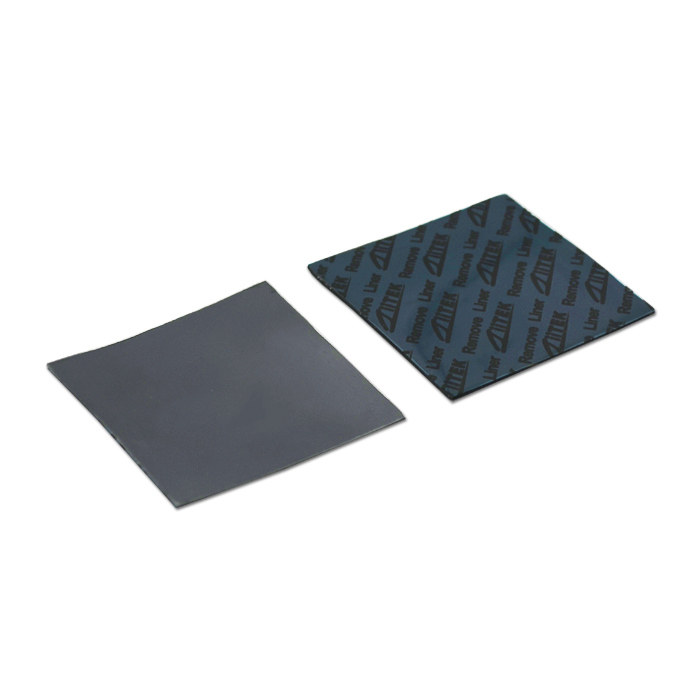

Name: OEM Customized Size Thermal Conductive Pad Thermal Conductive Silicon Pad For Automotive Engine Control Units
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF100-01E Series
Price: 4.10 USD
Availability: InStock

Home Products Silicone Thermal Pad

OEM Customized Size Thermal Conductive Pad Thermal Conductive Silicon Pad For Automotive Engine Control Units

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL & RoHS
Model Number:	TIF100-01E Series

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm cartons
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	1000000 pcs/month

Contact Now

Detailed Product Description

Products Name:	OEM Customized Size Thermal Conductive Pad Thermal Conductive Silicon Pad For Automotive Engine Control Units	Application:	Automotive Engine Control Units
Thickness Range:	0.020"~0.200"(0.5mm~5.0mm)	Dielectric Constant:	4.7 MHz
Dielectric Breakdown Voltage:	>5500 VAC	Keywords:	Silicone Thermal Pad
Fire Rating:	94 V0	Thermal Conductivity:	1.5W/m-K
Color:	Black

OEM Customized Size Thermal Conductive Pad Thermal Conductive Silicon Pad For Automotive Engine Control Units

Company Profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

The TIF^®100-01E Series is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.

Features

> Good thermal conductive: 1.5W/mK
> Available in varies thickness
> UL recognized
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating

Applications

> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules

> Mass storage devices
> Automotive electronics
> Set top boxes

Typical Properties of TIF^®100-01E Series
Property	Value	Test method
Color	Black	******
Construction &Compostion	Ceramic filled silicone elastomer	******
Specific Gravity	2.3 g/cc	ASTM D297
Hardness	35 Shore 00	ASTM 2240
Thickness range	0.020"~0.200"(0.5mm~5.0mm)	ASTM D374
Continuos Use Temp	-45 to 200℃	******
Dielectric Breakdown Voltage	>5500 VAC	ASTM D149
Dielectric Constant	4.7 MHz	ASTM D150
Volume Resistivity	1.0X10¹²Ohm-meter	ASTM D257
Flame rating	94 V0	UL E331100
Outgassing (TML)	0.35%	ASTM E595
Thermal conductivity	1.5 W/m-K	ASTM D5470

Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.

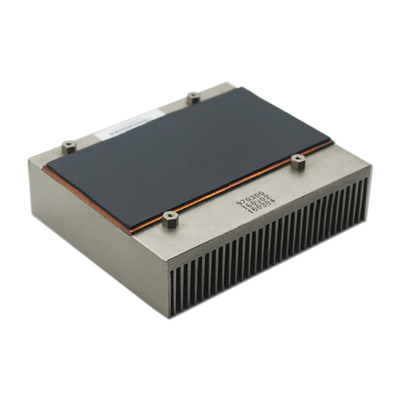

OEM Customized Size Thermal Conductive Pad Thermal Conductive Silicon Pad For Automotive Engine Control Units 0

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Independent R&D team

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
