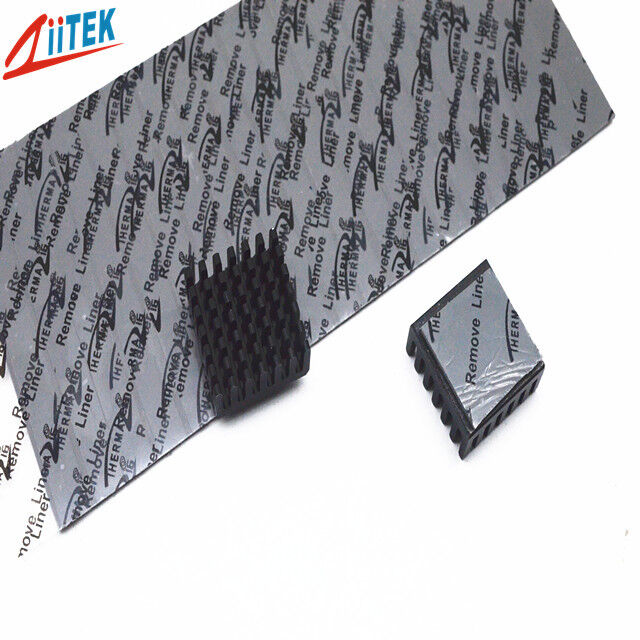

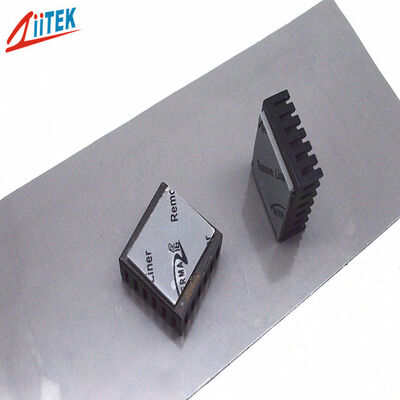

Name: Ultra-Soft 10W/mK Thermal Pad with Ceramic Filled Silicone for High-End Chip Cooling
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF100 10020-11
Price: 4.10 USD
Availability: InStock

Home Products Silicone Thermal Pad

Ultra-Soft 10W/mK Thermal Pad with Ceramic Filled Silicone for High-End Chip Cooling

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL and RoHs
Model Number:	TIF100 10020-11
Document:	TIF100 10020-11_Data Sheet.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm carton
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Products Name:	Ultra Performance 10W/mK Thermal Pad Effectively Fill Gaps Pad For High-end Chip	Thermal Conductive:	10.0W/mK
Hardness:	20 Shore 00	Sample:	Free Sample
Color:	Dark Gray	Thickness:	0.012"~0.200"/(0.30~5.0mm)
Density:	3.3g/cm³	Keywords:	Silicone Thermal Pad
Construction:	Ceramic Filled Silicone Elastomer	Application:	High-end Chip

Ultra Performance 10W/mK Thermal Pad Effectively Fill Gaps Pad For High-end Chip

Product Description

The TIF®100 10020-11 Series is an ultra-soft thermal interface material specifically designed to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with exceptional gel-like softness, achieving a low-stress perfect fit. It effectively addresses issues in high-precision assemblies, including large tolerances, uneven surfaces, and the susceptibility of delicate components to mechanical damage.

Features

Excellent thermal conductivity 10.0W/mK
Super soft and highly compliant
Self-adhesive without the need for additional surface adhesives
High insulation performance

Applications

AI Servers
Semiconductor Packaging
Low-Altitude Aircraft
Optical Communication Products
5G Base Stations

Typical Properties of TIF®100 10020-11 Series

Property	Value	Test Method
Color	Dark White	Visual
Construction & Composition	Ceramic filled silicone elastomer	******
Density (g/cm³)	3.3	ASTM D792
Thickness Range (inch/mm)	0.012~0.020 \| 0.030~0.200 0.30~0.50 \| 0.75~5.0	ASTM D374
Hardness (Shroe 00)	20 \| 20	ASTM 2240
Recommended Operating Temperature	-40 to 200℃	******
Breakdown Voltage (V/mm)	≥5500	ASTM D149
Dielectric Constant @ 1MHz	6.4	ASTM D150
Volume Resistivity	＞1.0×10¹² Ohm-meter	ASTM D257
Flame Rating	V-0	UL 94 (E331100)
Thermal Conductivity	10.0W/m-K 10.0 W/m-K	ASTM D5470 ISO22007

Product Specifications

Standard Thickness: 0.012" (0.30 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"x16" (406 mm x 406 mm)
The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.

Packaging Details & Lead Time

Packaging of Thermal Pad:

With PET film or foam for protection
Use paper card to separate each layer
Export carton inside and outside
Meet with customers' requirement - customized

Lead Time:
Quantity (Pieces): 5000
Est. Time (days): To be negotiated
