High Temperature Thermally Conductive Electrical Insulator Materials for Memory Modules

High Temperature Thermally Conductive Electrical Insulator Materials for Memory Modules

High Temperature Thermally Conductive Electrical Insulator Materials for Memory Modules
video
High Temperature Thermally Conductive Electrical Insulator Materials for Memory Modules
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL & RoHS
Model Number: TIS800K
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1-10 USD/pcs
Packaging Details: 24*23*12CM
Delivery Time: 3-6 work days
Contact Now
Detailed Product Description
Name: High Temperature Thermally Conductive Electrical Insulator Materials For Memory Modules Keyword: Thermally Insulator Materials
Application: Memory Modules Thermal Conductivity: 1.3W/mK
Original Country: China Continuos Use Temp: -40 To 130℃
Color: Light Amber
Highlight:

fiberglass insulation heat resistance

,

thermal insulation sheet

,

Soft Thermally Conductive Electrical Insulator

High Temperature Thermally Conductive Electrical Insulator Materials for Memory Modules

Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.

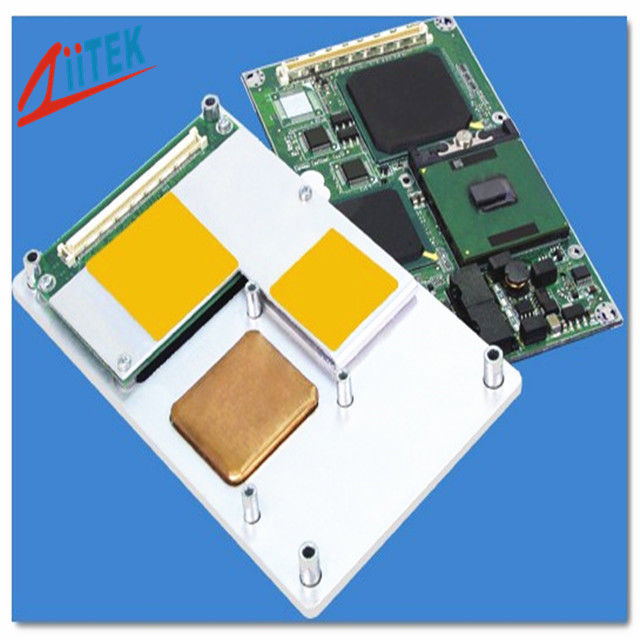

TIS®800K Series is a thermal silicone product featuring a ceramic-filed layer coated on a polyimide film, offering excellntthermal conductivity and heat transfer performance. The TIS®800K model is designed for screw-mounted applications on device openings, with the composite polyimide film providing superior dielectric insulation. Its soft thermal coating enhances gap-filling capability and improves handling during assembly.



High Temperature Thermally Conductive Electrical Insulator Materials for Memory Modules 0
Feature

> Broad range of hardnesses available
> Highly compliant surface characteristic with high thermal conductivity
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures


Application
> Power conversion equipment
> Power semiconductors, MOSFETs & IGBTs
> Audio and Video components
> Automotive control units
> Motor controllers
> General high pressure interface



Typical Properties of TIS®800K series
Product Name TIS®806K TIS®808K TIS®810K Test Method
Color Light Amber Visual
Polyimide Film Thickness(inch/mm) 0.001"/0.025mm ASTM D374
Total Thickness 0.006"/0.152mm 0.008"/0.203mm 0.010"/0.254mm
Density (g/cc) 2.0 ASTM D297
Tensile Strength (Mpa) 10 ASTM D412
Recommended Operating Temperature (℃) -45 to 160℃ Ziitek Test Method
Dielectric Breakdown Voltage (VAC) 6500 7000 7500 ASTM D149
Dielectric Constant 3.8 ASTM D150
Volume Resistivity(Ohm-cm) 3.5X1013 ASTM D257
Flame Rating V-0 UL 94
Thermal conductivity 1.3 W/mK ASTM D5470



Standard Thickness:

0.006" (0.152 mm), 0.008" (0.203 mm), 0.010" (0.254 mm)
For other thickness options, please contact us.


Standard Size:

10"× 100' (254 mm x 25.4 m). The TIS®800K series can be die-cut into various shapes for supply.



High Temperature Thermally Conductive Electrical Insulator Materials for Memory Modules 1
Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract



FAQ:



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge

High Temperature Thermally Conductive Electrical Insulator Materials for Memory Modules 2
