Name: Thermally Conductive Insulator Pad Efficient Heat Dissipation Silicon Pad Insulation For Video Components Motor Controllers
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIS806K-09-01
Price: 4.10 USD
Availability: InStock

Home Products Thermally Conductive Electrical Insulator

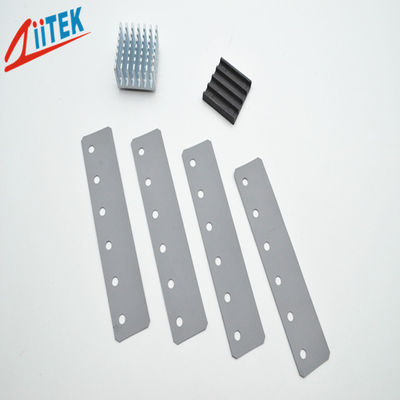

Thermally Conductive Insulator Pad Efficient Heat Dissipation Silicon Pad Insulation For Video Components Motor Controllers

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL & RoHS
Model Number:	TIS806K-09-01

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/pcs
Packaging Details:	241312cm cartons
Delivery Time:	3-6 work days
Supply Ability:	1000000 pcs/month

Contact Now

Detailed Product Description

Product Name:	Thermally Conductive Insulator Pad Efficient Heat Dissipation Silicon Pad Insulation For Video Components Motor Controllers	Thickness Range(inch/mm):	0.006/0.152
Color:	Gray	Keyword:	Thermally Conductive Insulator
Materials:	Ceramic Filled Silicone Elastomer / Polyimide Film	Thermal Conductive:	0.9W/mK
Continous Use Temp:	-60 To 180℃	Compliance:	UL & RoHS
Feature:	Low Thermal Resistant With High Voltage Isolation	Application:	Car Battery & Gpu Cpu Heatsink

Thermally Conductive Insulator Pad Efficient Heat Dissipation Silicon Pad Insulation For Video Components Motor Controllers

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

The TIS^®806K-09-01 Series of products are highly efficient insulating products and they also have thermal conductivity. It achieves the effect of both insulation and heat conduction by adding insulating silicone base material to the heat-conducting material.

Features:
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures

> Easy release construction
> Electrically isolating
> High durability

Applications:
> Car Battery & Power Supply

> Power semiconductors
> Audio and Video components

> Motor controllers

> CPU
> Display card
> Mainboard/mother board
> Notebook
> Mass storage devices
> Automotive electronics
> Set top boxes

Typical Properties of TIS^®806K-09-01 Series
Property	Value	Test Method
Color	Gray	Visual
Construction &Compostion	Ceramic filled silicone elastomer /Polyimide film	******
Thickness range	0.006inch (0.152mm)	ASTM D374
Tensile Strength(MPa)	34	ASTM D412
Density	2.4 g/cc	ASTM D297
Continuos Use Temp	-60 to 180℃	******
Breakdown Voltage(V/mm)	6000	ASTM D149
Dielectric Constant @ 1MHz	5.0	ASTM D150
Volume Resistivity	1.0X10¹⁴Ohm-meter	ASTM D257
Fire rating	94 V0	UL94(E331100)
Thermal conductivity	0.9W/m-K	ASTM D5470
Thermal impedance(℃-in²/W)@30psi	0.58	ASTM D5470

Standard Thicknesses

0.006inch (0.152mm)

Standard Sizes
12" x 160"(304mm * 48.76M)

The TlS series can be die-cut into different shapes and provided. lf you need different thicknesses, please contact our company.

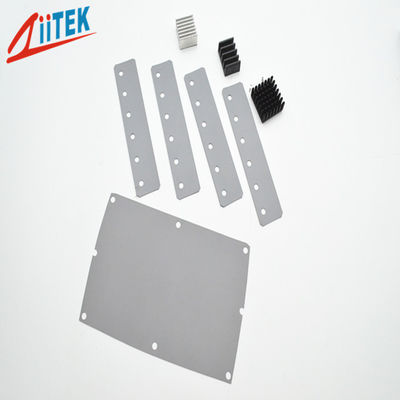

Thermally Conductive Insulator Pad Efficient Heat Dissipation Silicon Pad Insulation For Video Components Motor Controllers 0

Packaging Details & Lead time

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Independent R&D team

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online.
