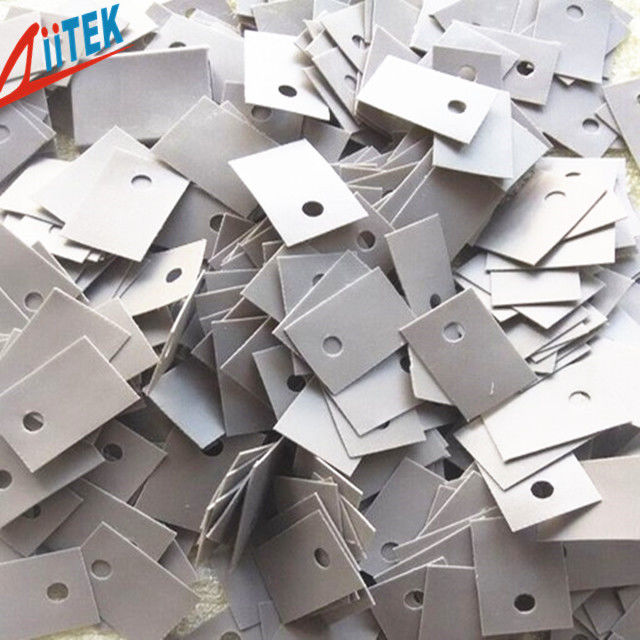

50 ShoreA Thermally Conductive Electrical Insulator Heat Transfer Die Cutting High Voltage Isolation

50 ShoreA Thermally Conductive Electrical Insulator Heat Transfer Die Cutting High Voltage Isolation

50 ShoreA Thermally Conductive Electrical Insulator Heat Transfer Die Cutting High Voltage Isolation
video
50 ShoreA Thermally Conductive Electrical Insulator Heat Transfer Die Cutting High Voltage Isolation
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL & RoHS
Model Number: TIS100-01
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1-10 USD/pcs
Packaging Details: 24*23*12CM
Delivery Time: 3-6 work days
Contact Now
Detailed Product Description
Keyword: Die Cutting China Supplier Silicone Thermal Insulation Sheet Application: Computer
Hardness: 50 ShoreA Feature: Die-cutting Thermal Conductive Insulation Sheet
Name: Silicone Thermal Insulation Sheet Color: Gray
High Light:

industrial insulation materials

,

fiberglass insulation heat resistance

Computer Heat Transfer Thermal Pad Die Cutting China supplier silicone thermal insulation sheet

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.



The TIS™100-01 Series products are the high-efficiency insulation ones with thermal conduction properties. The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.


Features


> Highly compliant surface characteristic with high thermal conductivity
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures


Applications


> Power conversion equipment
> Power semiconductors:To packages, MOSFETs & IGBTs
> Audio and Video components
> Automotive control units
> Motor controllers
> General high pressure interface





                                                        Typical Properties of TIS™100-01 Series



Product Name TISTM100-01
Color Grey Visual
Construction &
Compostion
Ceramic filled silicone rubber ***
Composite Thickness 9/0.23 12/0.3 18/0.45 ASTM2240
Specific Gravity 1.75 ASTM D297
Heat Capacity 1.0 ASTM C351
Hardness 50 ASTM D751
Tensile Strength 425 ASTM D412
Continuos Use Temp (-58 to 356℉) / (-50 to 180℃) ***
Electrical
Dielectric Breakdown Voltage >3500 ASTM D149
Dielectric Constant 5.5 ASTM D150
Volume Resistivity 3.5X10" ASTM D257
Fire rating 94 V0 Equivalent UL
Thermal
Thermal conductivity 1.0 ASTM D5470
Thermal Impedance @50psi 1.52 2.35 3.45 ASTM D5470


Standard Thicknesses:
0.005"(0.127mm) 0.006"(0.152mm) 0.008"(0.203mm) 0.009"(0.228mm)
0.010"(0.254mm) 0.012"(0.304mm) 0.018"(0.457mm)
Consult the factory alternate thickness.


Standard Sizes:
16" x 18"(406mm x 457mm) 16" x 200'(406mm x 60.9M)
Individual die cut shapes can be supplied.


Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on doule side with "A2" suffix.


Reinforcement:
TIS™ series sheets are fiberglass reinforced.


50 ShoreA Thermally Conductive Electrical Insulator Heat Transfer Die Cutting High Voltage Isolation 0
Test Method



Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.

They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.



Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
