Place of Origin: | China |
Brand Name: | Ziitek |
Certification: | RoHS |
Model Number: | TIA800AL |
Minimum Order Quantity: | 1000rolls |
---|---|
Price: | 0.1-10 USD/pcs |
Packaging Details: | 24*23*12cm |
Delivery Time: | 3-6 work days |
Payment Terms: | T/T |
Supply Ability: | 1000000rolls/month |
Feature: | ALUMINUM FOIL Reinforced | Keywords: | Aluminum Foil Double Sided Thermal Tape |
---|---|---|---|
Thermal Conductivity: | 1.6W/mK | Applciation: | Drive Processor |
Backing Type: | Aluminum Foil | Peel Adhesion: | 1200 G/inch |
High Light: | thermally conductive adhesive tape,heat transfer adhesive tape,Aluminum Foil Double Sided Thermal Tape |

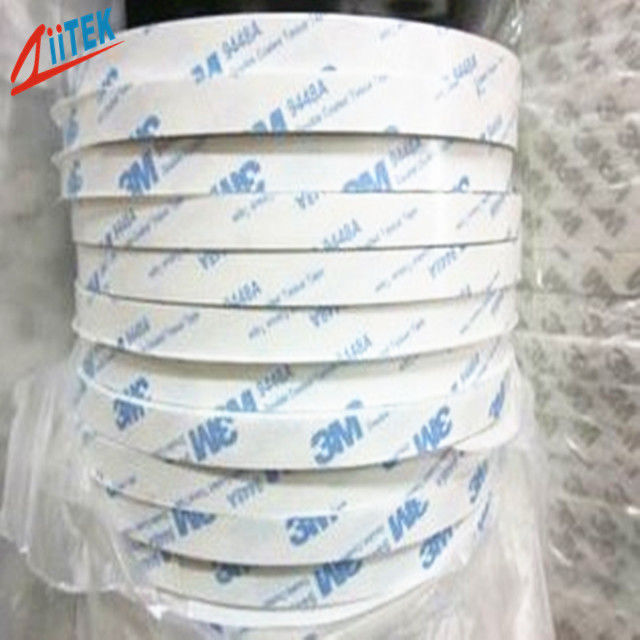

Drive processor applied white thermal conductive 1.6w acrylic adhesive aluminum foil double sided thermal tape
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
The TIA™800AL Series products are mostly used for bonding heat dissipation fins,microprocessors and other power consumption semiconductors. This type of adhesive tape possesses ultimate bonding strength with low thermal impedance, with which in effect can be able to replace the method of lubricating grease and mechanical fixing.
TIA800AL Series Datasheet-(E)-REV01.pdf
Feature
> Thermal Conductivity 1.6W/mK.
> High bond strength to a variety of surfaces
Double sided pressure sensitive adhesive tape.
> High performance, thermally conductive acrylic adhesive.
Application
> Mount heat sink onto BGA graphic processor or drive processor.
> Mount heat spreader onto power converter PCB
or onto motor control PCB.
> High performance, thermally conductive acrylic adhesive .
> Can be used instead of heat cure adhesive,
screw mounting or clip mounting.
Typical Properties of TIA™800AL Series
|
||
Typical Properties | TIA 806AL | Test Method |
Color | White | Visual |
Adhesive Type | Acrylic Adhesive | ******** |
Backing Type | Aluminum Foil | ******** |
Composite Thickness | 0.004" / 0.102mm | ASTM D374 |
Aluminum Foil Thickness | 0.002" / 0.05mm | ASTM D374 |
Total Thickness | 0.006" / 0.152mm | ASTM D374 |
Thickness Tolerance | ±0.001" / ±0.025mm | ASTM D374 |
Voltage Breakdown | > 1000 Vac | ASTM D149 |
Peel Adhesion | 1200 g/inch | JIS K02378 |
Holding Power 25℃/Days | > 120 kg/inch2 | JIS K023711 |
Holding Power 120℃/Hours | > 10 kg/inch2 | JIS K023711 |
Recommend Using Pressure | 10 psi | ******** |
Thermal Conductivity | 1.6 W/mK | ASTM D5470 |
Thermal Impedance@50psi | 0.43 ℃-in²/W |
ASTM D5470 |
Standard Thicknesses:
0.006"(0.152mm)
Consult the factory alternate thickness.
Standard Sizes:
16" x 100'(406mm x 30.48M)
Individual die cut shapes can be supplied.
Reinforcement:
TIA™800AL series rolls type can add with aluminum foil reinforced.
Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.
They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
