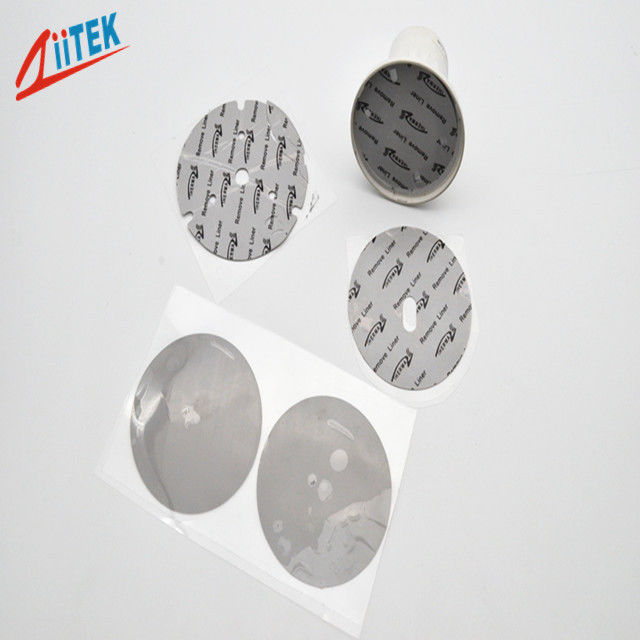

Thermally Conductive Pad For Automotive Engine Control Units For AI Processors AI Servers

Thermally Conductive Pad For Automotive Engine Control Units For AI Processors AI Servers

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL & RoHS
Model Number: TIF120-02F Series
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1-10 USD/PCS
Packaging Details: 24*23*12cm cantons
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 1000000 pcs/month
Contact Now
Detailed Product Description
Products Name: Thermally Conductive Pad For Automotive Engine Control Units For AI Processors AI Servers Thermal Conductivity: 1.5W/m-K
Application: For Automotive Engine Control Units For AI Processors AI Servers Color: Gray
Hardness: 60 Shore 00 Outgassing(TML): 0.35%
Keywords: Thermally Conductive Pad
Highlight:

2.23 G/CC Thermally Conductive Pad

,

94 V0 Thermally Conductive Pad

,

55 Shore 00 Silicone Thermal Pad

Thermally Conductive Pad For Automotive Engine Control Units For AI Processors AI Servers



The TIF120-02F Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.


Company Profile



Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.



Features



> Good thermal conductive: 1.5W/mK
>Electrically isolating

>UL recognized

> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
>Fiberglass reinforced for puncture, shear and tear resistance



Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)



Typical Properties of TIF120-02F Series
Color
Gray
Visual
Construction &Compostion
Ceramic filled silicone elastomer
******
Specific Gravity
2.3 g/cc
ASTM D297
Thickness range 0.020"-0.200"
ASTM C351
Hardness
60 Shore 00
ASTM 2240
Dielectric Breakdown Voltage
>5500 VAC
ASTM D412
Continuos Use Temp
-40 to 160℃
******
Outgassing(TML)
0.35%
ASTM E595
Dielectric Constant
4.0 MHz
ASTM D150
Volume Resistivity
1.0X1012 Ohm-meter
ASTM D257
Fire rating
94 V0
equivalent UL
Thermal conductivity
1.5W/mK
ASTM D5470

Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.


Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.


Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.



Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

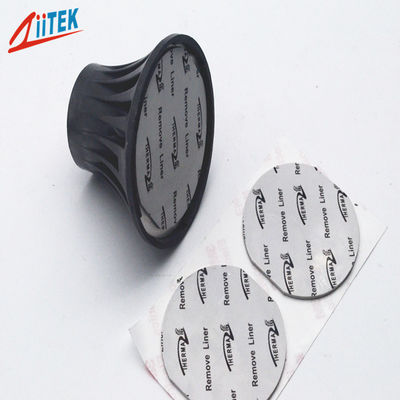

Thermally Conductive Pad For Automotive Engine Control Units For AI Processors AI Servers 0

Why Choose us ?



1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract



FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
