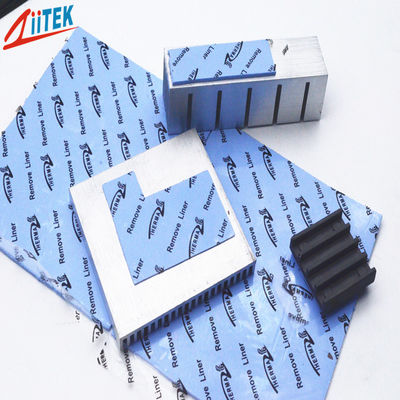

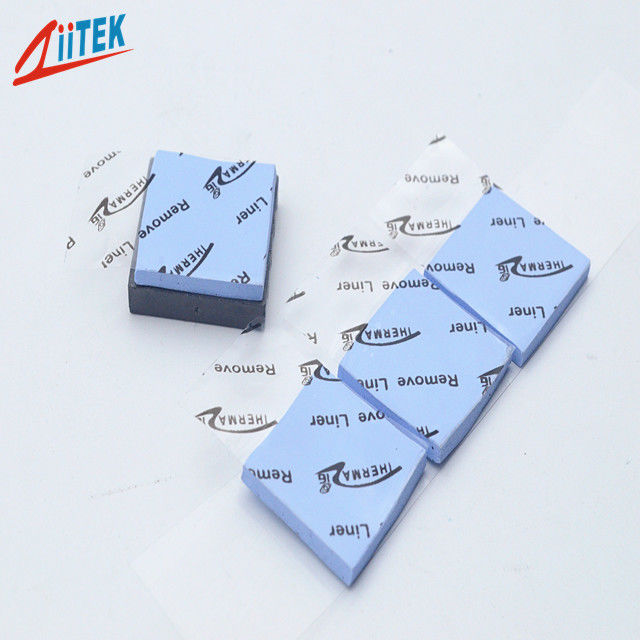

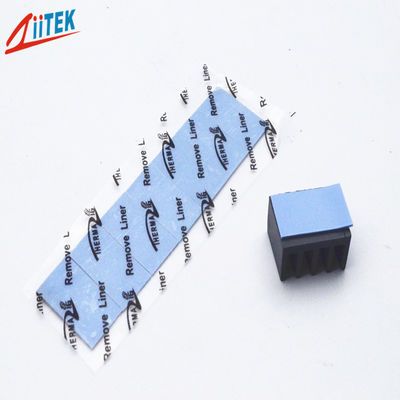

Fiberglass Reinforced Thermal Conductive Pad 0.5-5.0mmT Thickness For Filling Air Gap

Fiberglass Reinforced Thermal Conductive Pad 0.5-5.0mmT Thickness For Filling Air Gap

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL & RoHS
Model Number: TIF1100-05S Series
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1-10 USD/PCS
Packaging Details: 24*23*12cm cantons
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 1000000 pcs/month
Contact Now
Detailed Product Description
Products Name: Fiberglass Reinforced Thermal Conductive Pad 0.5-5.0mmT Thickness For Filling Air Gap Thickness Range: 0.5-5.0mmT
Color: Blue Dielectric Constant: 4.5 MHz
Dielectric Breakdown Voltage: >5500 VAC Fire Rating: 94 V0
Thermal Conductivity: 1.5W/m-K Keywords: Thermal Conductive Pad
Highlight:

Fiberglass Reinforced Thermal Conductive Pad

,

Thermal Conductive Pad 2.5mmT

,

45 Shore 00 Silicone Thermal Pad

Fiberglass Reinforced Thermal Conductive Pad 0.5-5.0mmT Thickness For Filling Air Gap



Company Profile



Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.





The TIF1100-05S Series use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.


Features


> Good thermal conductive: 1.5W/mK
> Available in varies thickness
> UL recognized
> Broad range of hardnesses available

> High tack surface reduces contact resistance
> Soft and Compressible for low stress applications
> Outstanding thermal performance


Applications


> LED TV / LED Lit Lamps
> CD-Rom, DVD-Rom cooling
> SAD-DC Power Adapters
> CPU
> Display card

> Micro heat pipe thermal solutions
> Memory Modules

> Routers

> Telecommunication hardware



Typical Properties of TIF1100-05S Series
Color
Blue
Visual
Construction & Compostion
Ceramic filled silicone elastomer
***
Specific Gravity
2.3 g/cc
ASTM D297
Thickness range 0.020"-0.200"
ASTM C351
Hardness
45 Shore 00
ASTM 2240
Dielectric Breakdown Voltage
>5500 VAC
ASTM D412
Continuos Use Temp
-40 to 160℃
***
Outgassing(TML)
0.35%
ASTM E595
Dielectric Constant
4.5 MHz
ASTM D150



Volume Resistivity
1.0X10"
Ohm-meter
ASTM D257
Fire rating
94 V0
equivalent UL
Thermal conductivity
1.5W/m-K
ASTM D5470

Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.


Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.



Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Fiberglass Reinforced Thermal Conductive Pad 0.5-5.0mmT Thickness For Filling Air Gap 0

Advantage



Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.

They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.



Why Choose us ?



1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract



we can find a more suitable Ziitek materials for every customer.

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.
