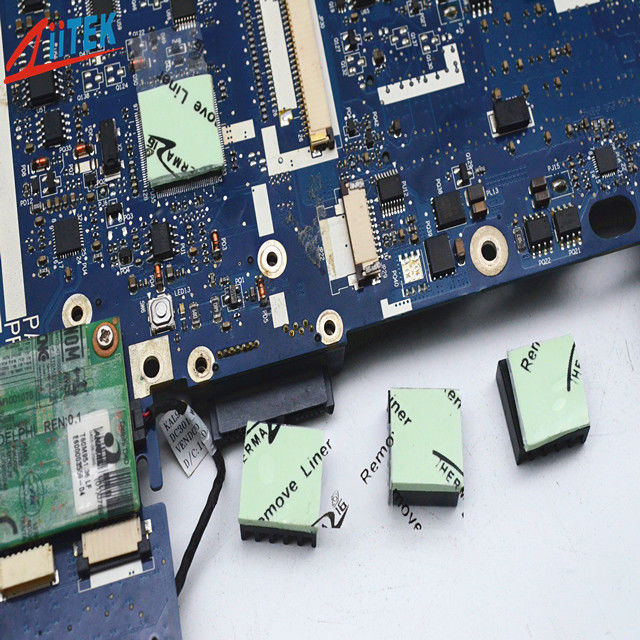

High Performance Silicone Heating Pad 1.5W/MK Silicone Thermal Gap Filler Pad For Telecommunication Hardware
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
The TIF®180-07E Series use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
Features
> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Naturally tacky needing no further adhesive coating
> Broad range of hardnesses available
> High tack surface reduces contact resistance
> Soft and Compressible for low stress applications
> Outstanding thermal performance
Applications
> Monitoring the Power Box
> CD-Rom, DVD-Rom cooling
> AD-DC Power Adapters
> Rainproof LED Power
> display card
> Micro heat pipe thermal solutions
> Waterproof LED Power
> routers
> Telecommunication hardware
| Typical Properties of TIF®100-07E Series |
| Color |
Green |
Visual |
| Construction & Compostion |
Ceramic filled silicone elastomer |
****** |
| Thickness range |
0.020"(0.5mm)~0.200"(5.0mm) |
ASTM D374 |
| Specific Gravity |
2.3 g/cc |
ASTM D297 |
| Hardness |
35 Shore 00 |
ASTM 2240 |
| Operating Temp |
-45 ~ 200℃ |
****** |
| Dielectric Breakdown Voltage |
≥5500 VAC |
ASTM D149 |
| Dielectric Constant @1MHz |
4.7 MHz |
ASTM D150 |
| Volume Resistivity |
≥1.0X1012 Ohm-cm |
ASTM D257 |
| Fire rating |
94 V0 |
UL E331100 |
| Thermal conductivity |
1.5 W/m-K |
ASTM D5470
|
Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied. Please contact us for confirming
Safe disposal method does not require special protection.The storage condition is low temperature anddry, away from open fire and away from direct sunlight. For detailed method, please refer to the product material safety data sheet.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us.
4. We will reply you as soon as possible with Email or online.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge
