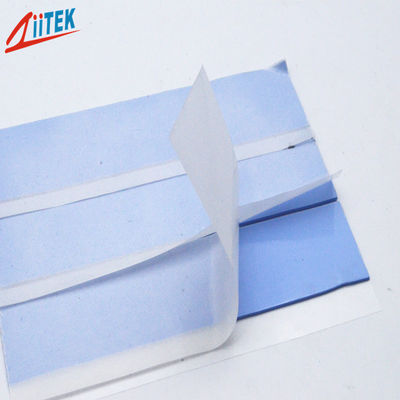

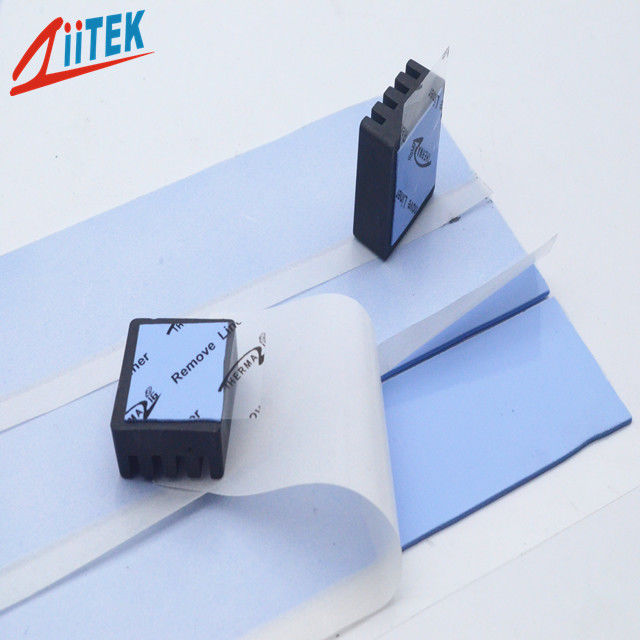

RoHS Compliant Thermal Gap Pad 1.5 W/MK Easy Release Construction For Rainproof LED Power

RoHS Compliant Thermal Gap Pad 1.5 W/MK Easy Release Construction For Rainproof LED Power

RoHS Compliant Thermal Gap Pad 1.5 W/MK Easy Release Construction For Rainproof LED Power
video
RoHS Compliant Thermal Gap Pad 1.5 W/MK Easy Release Construction For Rainproof LED Power
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL & RoHS
Model Number: TIF120-05S Series
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1-10 USD/PCS
Packaging Details: 24*23*12cm cantons
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 1000000 pcs/month
Contact Now
Detailed Product Description
Features: Outstanding Thermal Performance Color: Blue
Thermal Conductivity: 1.5W/mK Applications: Automotive Engine Control Units
Specific Gravity: 2.3g/cc
High Light:

RoHS Compliant Thermal Gap Pad

,

1.5 W/MK Thermal Gap Pad

,

UL Thermal Conductive Silicone Pad

Factory supply RoHS compliant thermal gap pad Easy release construction for Rainproof LED Power

Company Profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.



The TIF120-5S Series is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.



Features

Good thermal conductive
Moldability for complex parts
Soft and compressible for low stress applications
Naturally tacky needing no further adhesive coating
Available in varies thicknesses
Broad range of hardnesses available
Moldability for complex parts
Outstanding thermal performance


Applications



Monitoring the Power Box
AD-DC Power Adapters
Rainproof LED Power
Waterproof LED Power
SMD LED module
LED Flesible strip, LED bar
LED PanelLight
LED floor light
routers




                                           Typical Properties of TIF120-5S Series


Color Blue Visual Dielectric Breakdown Voltage (T= 1mm above) >5500 VAC ASTM D149
Construction Ceramic filled silicone elastomer ********** Dielectric Constant 4.5 MHz ASTM D150
Thermal Conductivity 1.5 W/mK ASTM D5470 Volume Resistivity 1.0X1012 Ohm-meter ASTM D257
Hardness 45 Shore 00 ASTM 2240 Continuous Use Temp – 40 To 160 **********
Specific Gravity 2.3g/cc ASTM D297 Outgassing (TML) 0.35% ASTM E595
Thickness range 0.020"-0.200" (0.5mm-5.0mm) ASTM D374 Flame Rating 94 V0 UL E331100


Standard Thicknesses:
0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm) 0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.



Advantage



Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.

They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.



RoHS Compliant Thermal Gap Pad 1.5 W/MK Easy Release Construction For Rainproof LED Power 0

TIF100-05S Datasheet-REV02.pdf
