| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIFT520-30-11US CPU Thermal Pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Hardness: | 20shore00 | KEYWORD: | Gray Silicone Rubber Pads |
|---|---|---|---|
| Color: | Gray | Part Number: | TIFT520-30-11US |
| Material: | Silicone | Construction: | Ceramic Filled Silicone Elastomer |
| Highlight: | Silicone Thermal Interface Material Pad,0.5mm Thermal Interface Material Pad,0.5mm Thermal Insulation Pad |
||

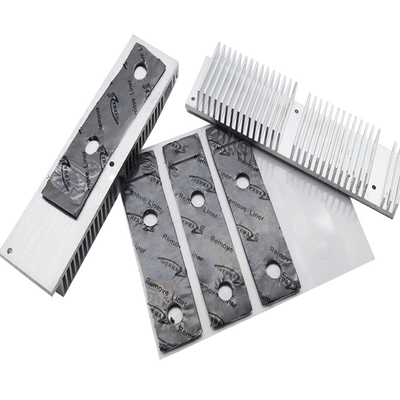

High performance low cost CPU thermal pad TIF520-30-11US with grey color for various electronic device
Company Profile
Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.
| Broad range of hardnesses available 3.0 W/mK |
| Electrically isolating |
|
Outstanding thermal performance
|
| Thickness:0.5mmT |
| Mass storage devices |
| Broad range of hardnesses available |
| Handheld portable electronics |
| Audio and video components |
| Handheld portable electronics |
| GPS navigation and other portable devices |
| CD-Rom, DVD-Rom cooling |
|
Typical Properties of TIF520-30-11US
|
|||
|
Product Name
|
TIF520-30-11US Series
|
||
|
Colour
|
Gray | ||
|
Construction & Compostion
|
Ceramic filled silicone rubber
|
||
|
Specific Gravity
|
2.9 g/cc
|
||
|
Operating Temp
|
-40 ~160 ℃
|
||
|
Hardness
|
20Shore 00
|
||
|
Dielectric Breakdown Voltage
|
>5500 VAC
|
||
|
Flame Rating
|
94 -V0
|
||
|
Dielectric Constant@1MHz
|
4.0 MHz | ||
|
Thermal conductivity
|
3.0W/mK
|
||
|
Thickness
|
0.5mmT | ||
Standard Thicknesses:
0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm) 0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.
Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
