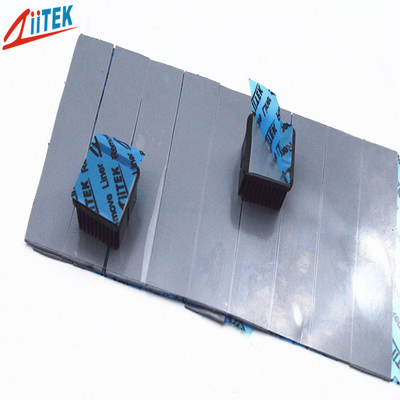

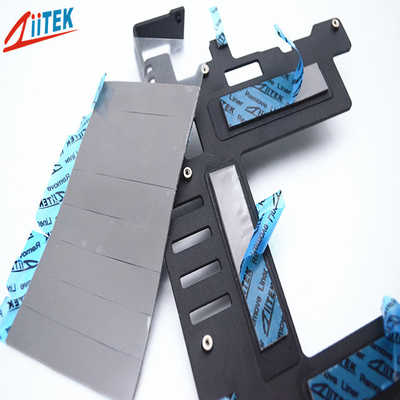

3.5mmT Thermally Conductive Silicone Rubber Pads 20 Shore 00 For LED Panel Light

3.5mmT Thermally Conductive Silicone Rubber Pads 20 Shore 00 For LED Panel Light

3.5mmT Thermally Conductive Silicone Rubber Pads 20 Shore 00 For LED Panel Light
video
3.5mmT Thermally Conductive Silicone Rubber Pads 20 Shore 00 For LED Panel Light
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF5140-40-11US thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Hardness: 20shore00 KEYWORD: Grey Silicone Rubber Pads
Color: Grey Part Number: TIF5140-40-11US
Material: Silicone Thickness: 3.5mmT
High Light:

4.0W/MK Silicone Rubber Pads

,

Thermally Conductive Silicone Rubber Pads

,

3.5mmT Silicone Rubber Pads

4.0W/MK 3.5mmT thermally conductive silicone rubber 20 Shore 00 for LED PanelLight

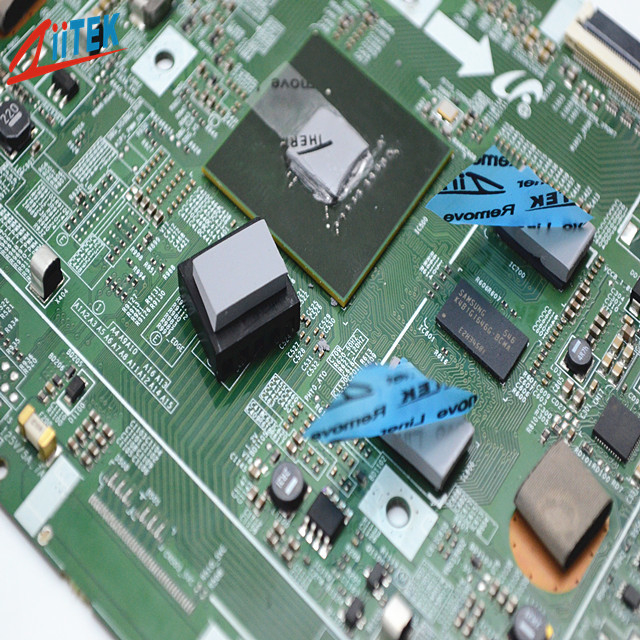

TIF5140-40-11US Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heatgenerating electronic components.



TIF500-40-11US Datasheet-REV02.pdf



Company Profile

With professional R&D capabilities and over 13 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.


Features
<Thickness:3.5mmT
<Good thermal conductive:4.0W/MK

<Moldability for complex parts

<Soft and compressible for low stress applications

<Naturally tacky needing no further adhesive coating

<Available in varies thicknesses

<Broad range of hardnesses available

<Moldability for complex parts

<Outstanding thermal performance

<High tack surface reduces contact resistance

<RoHS compliant




Applications

<LED PanelLight

<LED floor light

<Routers

<Set top boxes

<Audio and video components

<IT infrastructure

<Handheld portable electronics

<Semiconductor automated test equipment (ATE)

<CPU






Typical Properties of TIF 5140-40-11US

Product Name
TIF5140-40-11US Series
Colour
Grey
Construction & Compostion
Ceramic filled silicone rubber
Specific Gravity
3.1 g/cc
Dielectric Constant@1MHz
4.0 MHz
Hardness
20 Shore 00
Outgassing (TML)
0.35%
Continuos Use Temp
-40 to 160℃
Dielectric Breakdown Voltage
>5500 VAC
Thermal conductivity
 4.0W/mK
Thickness
3.5mmT



Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.

Request adhesive on double side with "A2" suffix.



Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.



Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL


3.5mmT Thermally Conductive Silicone Rubber Pads 20 Shore 00 For LED Panel Light 0



Why Choose us ?



1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract



Advantage



Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.

They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.
