RoHS Compliant Silicone Sheets 4.5mmT 4.0W/MK 20 Shore 00 For Set Top Boxes

RoHS Compliant Silicone Sheets 4.5mmT 4.0W/MK 20 Shore 00 For Set Top Boxes

RoHS Compliant Silicone Sheets 4.5mmT 4.0W/MK 20 Shore 00 For Set Top Boxes
video
RoHS Compliant Silicone Sheets 4.5mmT 4.0W/MK 20 Shore 00 For Set Top Boxes
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF5180-40-11US thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Hardness: 20shore00 KEYWORD: Grey Silicone Rubber Pads
Thermal Conductivity: 4.0W/mK Part Number: TIF5180-40-11US
Material: Silicone Thickness: 4.5mmT
High Light:

4.0W/MK Silicone Sheets

,

Silicone Sheets 4.5mmT

,

RoHS Compliant Silicone Sheets

4.0W/mK RoHS compliant, high cost-effective silicone sheets 4.5mmT, 20 Shore 00 for Set top boxes

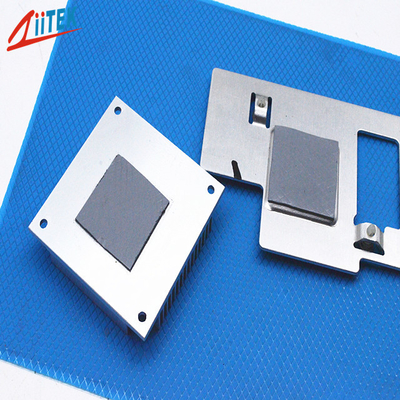

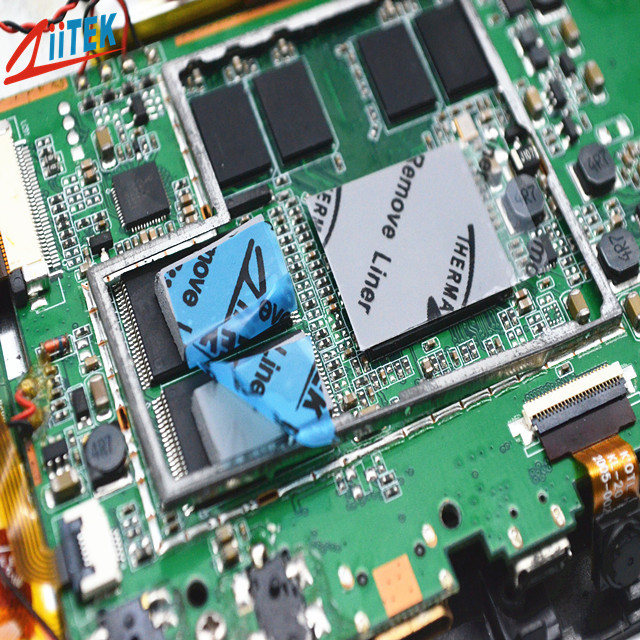

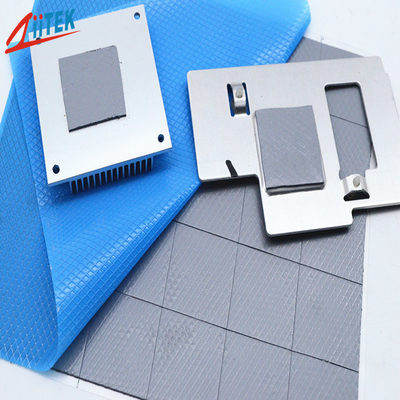

TIF5180-40-11US Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heatgenerating electronic components.



TIF500-40-11US Datasheet-REV02.pdf



Company Profile

 Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market.

Our vast experience allows us to assist our customers best in thermal engineering field.

We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!


Features
<Thickness:4.5mmT
<Good thermal conductive:4.0W/MK

<RoHS compliant

<UL recognized

<Fiberglass reinforced for puncture, shear and tear resistance

<Easy release construction

<Moldability for complex parts

<Soft and compressible for low stress applications

<Electrically isolating

<High durability




Applications


<Set top boxes

<Audio and video components

<IT infrastructure

<GPS navigation and other portable devices

<Automotive engine control units

<Telecommunication hardware

<Handheld portable electronics

<Rainproof LED Power

<Waterproof LED Power

<SMD LED module






Typical Properties of TIF 5180-40-11US

Product Name
TIF5180-40-11US Series
Colour
Grey
Construction & Compostion
Ceramic filled silicone rubber
Specific Gravity
3.1 g/cc
Dielectric Constant@1MHz
4.0 MHz
Hardness
20 Shore 00
Outgassing (TML)
0.35%
Continuos Use Temp
-40 to 160℃
Dielectric Breakdown Voltage
>5500 VAC
Thermal conductivity
 4.0W/mK
Thickness
4.5mmT



Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)



Consult the factory to alternate thickness.





Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated


RoHS Compliant Silicone Sheets 4.5mmT 4.0W/MK 20 Shore 00 For Set Top Boxes  0



Advantage



Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.

They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.



FAQ

Q: What kind of packaging you offer?

A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.



Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.



Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
