| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF5160-18-11US thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Hardness: | 25shore00 | KEYWORD: | Grey Silicone Rubber Pads |
|---|---|---|---|
| Color: | Grey | Part Number: | TIF5160-18-11US |
| Material: | Silicone | Thermal Conductive: | 1.8 W/mK |
| High Light: | Silicone Sheets 1.8 W/MK,UL Recognized Silicone Sheets,Portable Electronics Silicone Sheets |
||

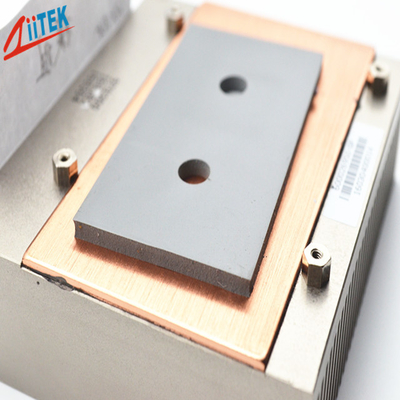

4.0mmT popular,UL recognized silicone sheets 1.8 W/MK, 25shore00 For Handheld portable electronics
Company Profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
<Good thermal conductive: 1.8 W/mK
<Thickness:4.0mmT
<Outstanding thermal performance

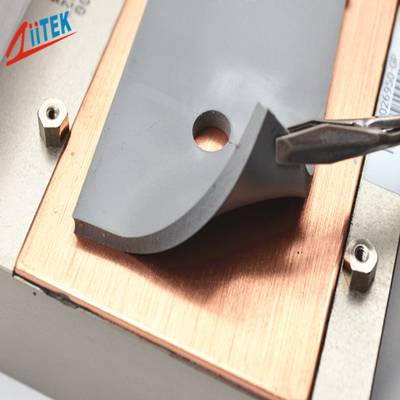

<Naturally tacky needing no further adhesive coating
<Easy release construction
<High tack surface reduces contact resistance
<Handheld portable electronics
<Semiconductor automated test equipment (ATE)
<power supply
<Heat pipe thermal solutions
<CD-Rom, DVD-Rom cooling
<LED Power Supply
<LED Controller
|
Typical Properties of TIF5160-18-11US
|
|||
|
Product Name
|
TIF5160-18-11US Series
|
||
|
Colour
|
Grey |
||
|
Construction & Compostion
|
Ceramic filled silicone rubber
|
||
|
Specific Gravity
|
2.8 g/cc
|
||
|
Dielectric Constant@1MHz
|
4.2 MHz | ||
|
Hardness
|
20 Shore 00
|
||
|
Flame Rating
|
94 -V0
|
||
|
Continuos Use Temp
|
-40 to 160℃
|
||
|
Dielectric Breakdown Voltage
|
>5500 VAC
|
||
|
Thermal conductivity
|
1.8 W/mK
|
||
|
Thickness
|
4.0mmT | ||
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
FACTORY INFORMATION:
Factory Size
5,000-10,000 square meters
Factory Country/Region
Building B8, Industry District Ⅱ, Xicheng, Hengli Township, Dongguan City, Guangdong Province, P.R.China
Annual Output Value
US$1 Million - US$2.5 Million
Company Profile
With professional R&D capabilities and over 13 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.
