Place of Origin: | China |
Brand Name: | Ziitek |
Certification: | UL |
Model Number: | TIF5200-18-11US thermal pad |
Minimum Order Quantity: | 1000 pcs |
---|---|
Price: | 0.1-10 USD/PCS |
Packaging Details: | 25*24*13cm canton |
Delivery Time: | 3-8 work days |
Payment Terms: | T/T |
Supply Ability: | 100000pcs/month |
Hardness: | 25shore00 | KEYWORD: | Grey Silicone Rubber Pads |
---|---|---|---|
Color: | Grey | Part Number: | TIF5200-18-11US |
Material: | Silicone | Thermal Conductive: | 1.8 W/mK |
High Light: | Power Adapters Heat Sink Pad,Heat Sink Pad 1.8 W/MK,5.0mmT Heat Sink Pad |

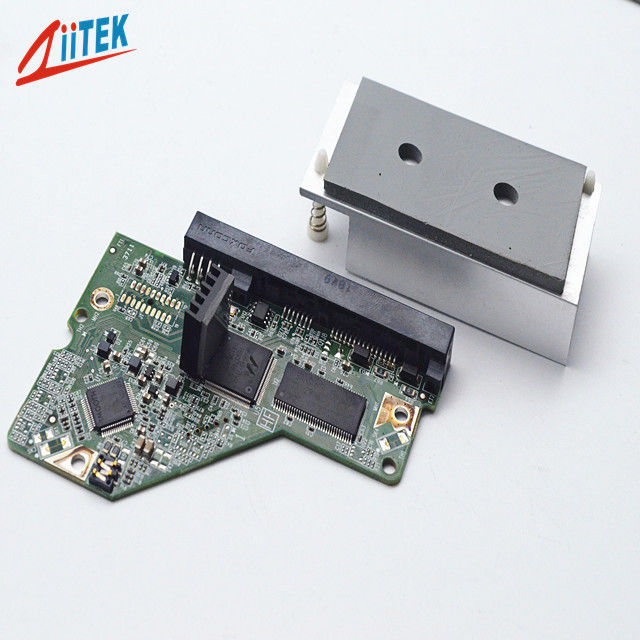

5.0mmT AD-DC Power Adapters applicated,low cost,UL recognized heat sink pad 1.8 W/MK, 25shore00
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
<Good thermal conductive: 1.8 W/mK
<Thickness:5.0mmT
<UL recognized
<Outstanding thermal performance
<High durability
<Soft and compressible for low stress applications
<AD-DC Power Adapters
<Rainproof LED Power
<Waterproof LED Powerpower supply
<Heat pipe thermal solutions
<IT infrastructure
<GPS navigation and other portable devices
Typical Properties of TIF5200-18-11US
|
|||
Product Name
|
TIF5200-18-11US Series
|
||
Colour
|
Grey |
||
Construction & Compostion
|
Ceramic filled silicone rubber
|
||
Specific Gravity
|
2.8 g/cc
|
||
Dielectric Constant@1MHz
|
4.2 MHz | ||
Hardness
|
20 Shore 00
|
||
Flame Rating
|
94 -V0
|
||
Continuos Use Temp
|
-40 to 160℃
|
||
Dielectric Breakdown Voltage
|
>5500 VAC
|
||
Thermal conductivity
|
1.8 W/mK
|
||
Thickness
|
5.0mmT |
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
