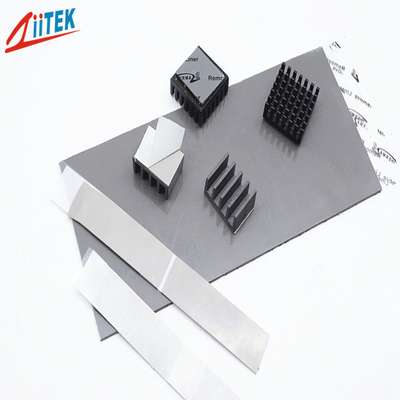

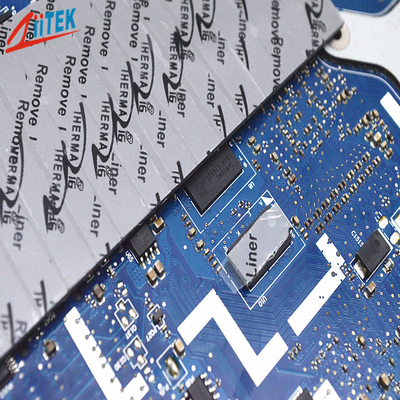

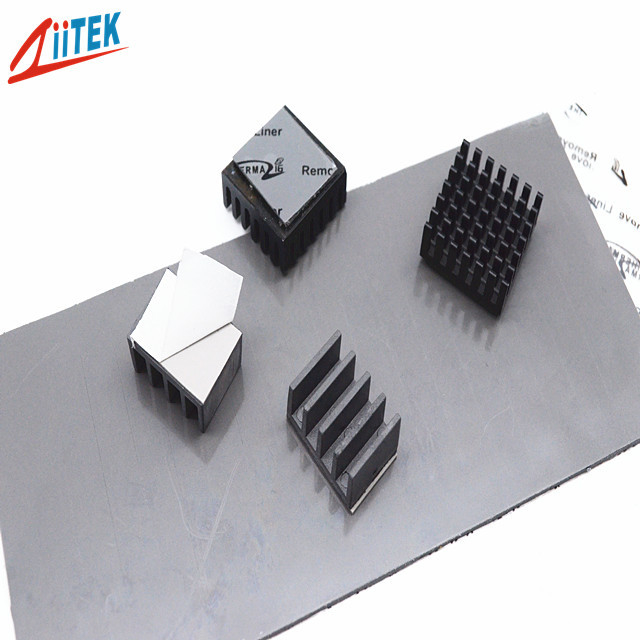

Grey Thermal Conductive Gap Filler 27shore00 For Handheld Portable Electronics

Grey Thermal Conductive Gap Filler 27shore00 For Handheld Portable Electronics

  • Grey Thermal Conductive Gap Filler 27shore00 For Handheld Portable Electronics
  • Grey Thermal Conductive Gap Filler 27shore00 For Handheld Portable Electronics
  • Grey Thermal Conductive Gap Filler 27shore00 For Handheld Portable Electronics
Grey Thermal Conductive Gap Filler 27shore00 For Handheld Portable Electronics
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF5160-30-11U thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Hardness: 27shore00 KEYWORD: Grey Silicone Rubber Pads
Color: Grey Part Number: TIF5160-30-11U
Material: Silicone Thickness: 4.0mmT
High Light:

Grey thermal conductive gap filler

,

thermal conductive gap filler 27shore00

,

27shore00 thermal gap filler

Grey new developed thermal conductive gap filler 27shore00 For Handheld portable electronics



Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.



TIF500-30-11U Datasheet-REV02.pdf


The TIF5160-30-11U  is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

Features
<Broad range of hardnesses available 3.0W/mK
<Thickness:4.0mmT

<Naturally tacky needing no further adhesive coating

<Broad range of hardnesses available

<Moldability for complex parts


Applications

<Handheld portable electronics

<Semiconductor automated test equipment (ATE)

<High speed mass storage drives

<Heat Sinking Housing at LED-lit BLU in LCD

<IT infrastructure

<GPS navigation and other portable devices

<CD-Rom, DVD-Rom cooling







Typical Properties of TIF 5160-30-11U

Product Name
TIF5160-30-11U Series
Colour
Grey
Construction & Compostion
Ceramic filled silicone rubber
Specific Gravity
3.0g/cc
Dielectric Constant@1MHz
4.4 MHz
Hardness
27Shore 00
Flame Rating
94 -V0
Continuos Use Temp
-40to 160℃
Dielectric Breakdown Voltage
>5500 VAC
Thermal conductivity
3.0 W/mK
Thickness
4.0mmT





Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated







Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.

Request adhesive on double side with "A2" suffix.



Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.


Grey Thermal Conductive Gap Filler 27shore00 For Handheld Portable Electronics 0

Ziitek Culture



Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
