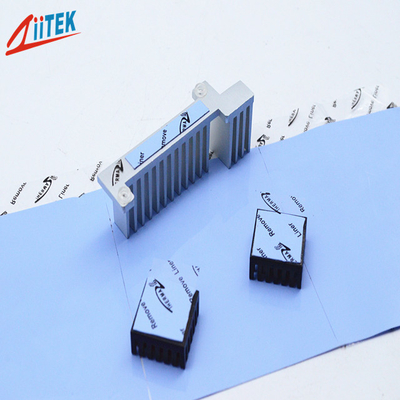

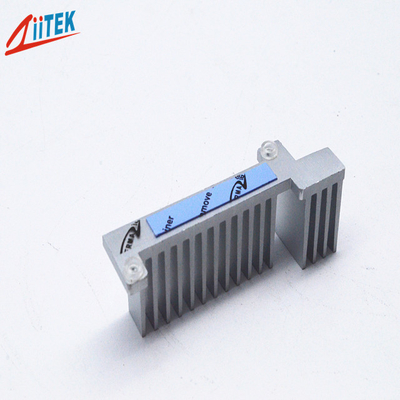

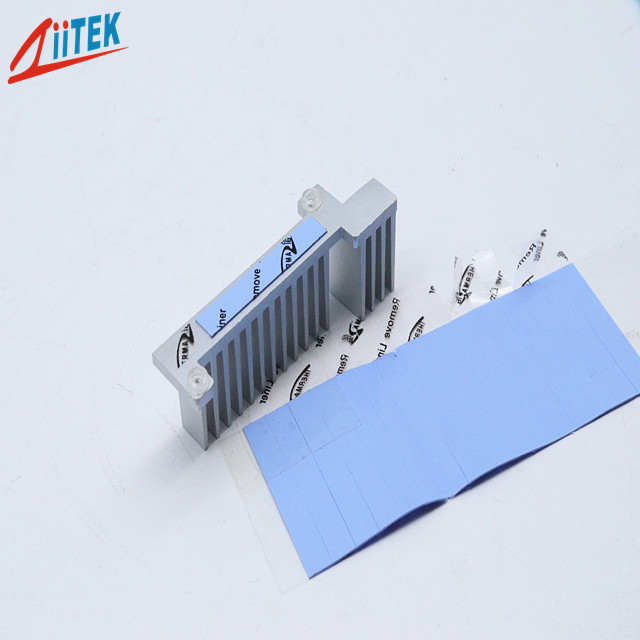

Silicone Rubber Thermally Conductive Pad 3.2W/M-K For Notebook

Silicone Rubber Thermally Conductive Pad 3.2W/M-K For Notebook

Silicone Rubber Thermally Conductive Pad 3.2W/M-K For Notebook
video
Silicone Rubber Thermally Conductive Pad 3.2W/M-K For Notebook
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF5120S thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Hardness: 45shore00 KEYWORD: Blue Silicone Rubber Pads
Color: Blue Part Number: TIF5120S
Material: Silicone Thickness: 3.0mmT
High Light:

thermal silicone pad 3.2W/M-K

,

3.2W/M-K Thermally Conductive Pad

,

Thermally Conductive Pad For Notebook

China company supplied thermally conductive silicone rubber 3.2W/M-K,Continuos Use Temp: -40to 160℃ For notebook



Company Profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market.

Our vast experience allows us to assist our customers best in thermal engineering field.

We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!



TIF500S Datasheet-REV02.pdf


The TIF5120S is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

Features
<Good thermal conductive:3.2 W/mK
<Thickness:3.0mmT
<Hardness:45 Shore 00

<Outstanding thermal performance

<High tack surface reduces contact resistance

<RoHS compliant

<UL recognized



Applications

<LED Power Supply

<LED Controller

<LED Ceilinglamp

<LED Flesible strip, LED bar

<LED PanelLight

<LED floor light

<routers





Typical Properties of TIF 5120S

Product Name
TIF5120S Series
Colour
Blue
Construction & Compostion
Ceramic filled silicone rubber
Specific Gravity
3.0g/cc

Thickness

3.0mmT
Hardness
45 Shore 00
Tensile Strength
40 psi
Continuos Use Temp
-40to 160℃
Dielectric Breakdown Voltage
>5500 VAC
Thermal conductivity
3.2 W/mK



Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)



Consult the factory to alternate thickness.


Silicone Rubber Thermally Conductive Pad 3.2W/M-K For Notebook 0





FAQ:

Q:Do big buyers have promotional prices?

A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.



Q: What is your terms of payment ?

A: Payment<=2000USD, T/T in advance. Paying in time and faithful for several months, we can apply other payment term for you, pay together in every month or 30 days.
