94 V0 1.5W/MK Thermal Conductive Gap Pad 0.50mmT For Semiconductor ATE

94 V0 1.5W/MK Thermal Conductive Gap Pad 0.50mmT For Semiconductor ATE

94 V0 1.5W/MK Thermal Conductive Gap Pad 0.50mmT For Semiconductor ATE
video
94 V0 1.5W/MK Thermal Conductive Gap Pad 0.50mmT For Semiconductor ATE
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF120-05ES thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Hardness: 12±5 Shore00 KEYWORD: Blue Silicone Rubber Pads
Color: Blue Part Number: TIF120-05ES
Material: Silicone Thickness: 0.5mmT
High Light:

Thermal Gap Pad 1.5W/MK

,

Thermal Conductive Gap Pad 0.50mmT

,

1.5W/MK Thermal Conductive Gap Pad

94 V0 1.5W/MK thermal conductive gap pad 0.50mmT For Semiconductor automated test equipment (ATE)


Company Profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.



TIF100-05ES-Datasheet.pdf

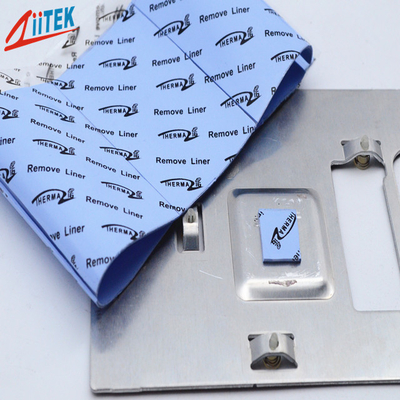

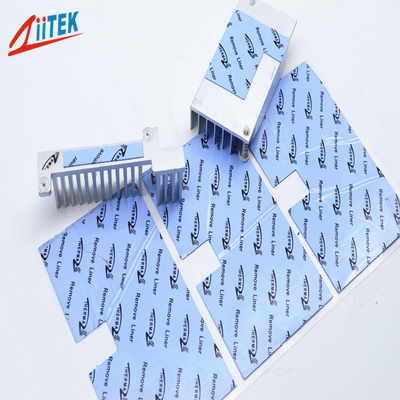

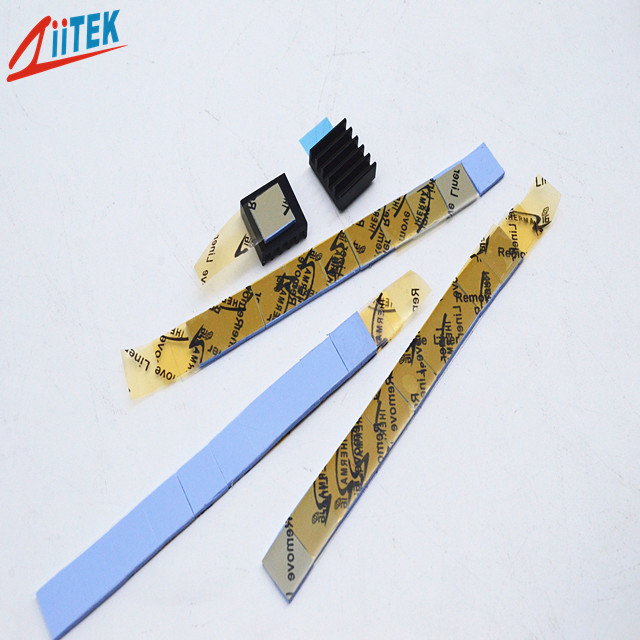

The TIF120-05ES is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling

Features
<Good thermal conductive:1.5 W/mK
<Thickness:0.5mmT
<Hardness:12±5  Shore 00

<Moldability for complex parts

<High tack surface reduces contact resistance

<Electrically isolating


Applications

<Semiconductor automated test equipment (ATE)

<CPU

<display card

<Memory Modules

<Mass storage devices

<Automotive electronics

<Set top boxes





Typical Properties of TIF120-05ES

Product Name
TIF120-05ESSeries
Colour
Blue
Construction & Compostion
Ceramic filled silicone rubber

Density

2.0 g/cm3

Thickness

0.5mmT
Hardness
12±5  Shore 00
Tensile Strength
40 psi
Continuos Use Temp
-40to 160℃
Dielectric Breakdown Voltage
>5500 VAC
Thermal conductivity
1.5 W/mK




Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)



Consult the factory to alternate thickness.




94 V0 1.5W/MK Thermal Conductive Gap Pad 0.50mmT For Semiconductor ATE 0

Our services



Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples



After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.





FAQ:

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.



Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
