| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF1100-01ES thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Hardness: | 12±5 Shore00 | KEYWORD: | Drak Gray Silicone Rubber Pads |
|---|---|---|---|
| Color: | Drak Gray | Part Number: | TIF1100-01ES |
| Material: | Silicone | Thickness: | 2.5mmT |
| High Light: | 12±5 Shore 00 Thermally Conductive Pad,Silicone Rubber Thermally Conductive Pad,1.5 W/MK Thermally Conductive Pad |
||

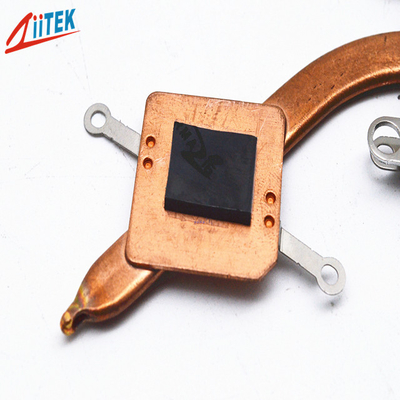

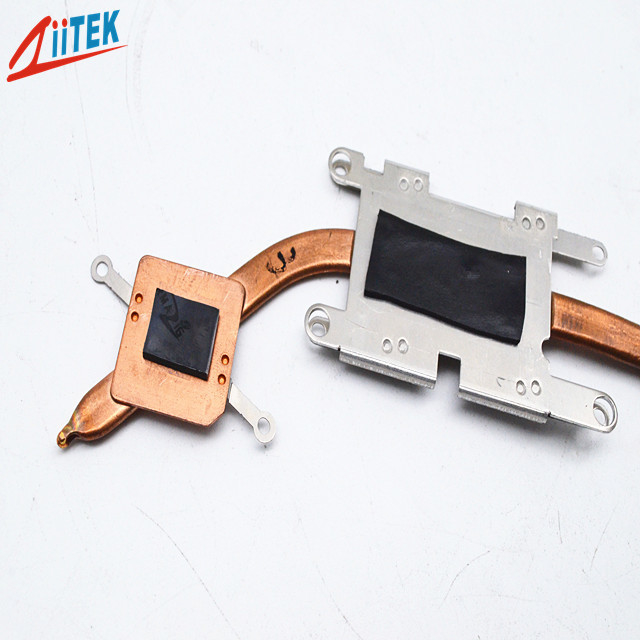

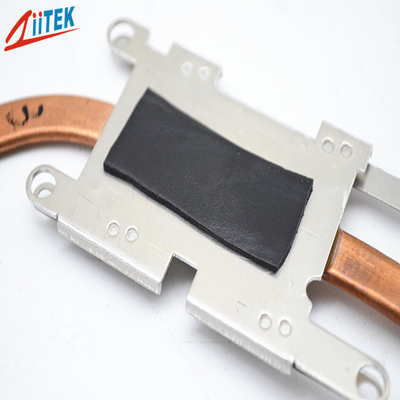

Factory Supply Thermally Conductive Silicone Rubber Ultra Soft,12±5 Shore 00 ,2.5mmT,1.5 W/MK,
factory supply thermally conductive silicone rubber ultra soft,12±5 Shore 00 ,2.5mmT,1.5 W/mK,
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
<High tack surface reduces contact resistance
<RoHS compliant
<notebook
<power supply
<Heat pipe thermal solutions
<Memory Modules
<CD-Rom, DVD-Rom cooling
<LED Power Supply
<LED Controller
<LED Ceilinglamp
|
Typical Properties of TIF1100-01ES
|
|||
|
Product Name
|
TIF1100-01ES Series
|
||
|
Colour
|
drak gray | ||
|
Construction & Compostion
|
Ceramic filled silicone rubber
|
||
|
Specific gravity |
1.9 g/cm3
|
||
|
Thickness |
2.5mmT
|
||
|
Hardness
|
12±5 Shore 00
|
||
|
Tensile Strength
|
40 psi
|
||
|
Continuos Use Temp
|
-40to 160℃
|
||
|
Dielectric Breakdown Voltage
|
>5500 VAC
|
||
|
Thermal conductivity
|
1.5 W/mK
|
||
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
