Thermal Conductive Pad Black Silicone Rubber 18 Shore 00 1.8W/MK

Thermal Conductive Pad Black Silicone Rubber 18 Shore 00 1.8W/MK

Thermal Conductive Pad Black Silicone Rubber 18 Shore 00 1.8W/MK
video
Thermal Conductive Pad Black Silicone Rubber 18 Shore 00 1.8W/MK
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF1120-18-01US thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Hardness: 18 Shore00 KEYWORD: Black Silicone Rubber Pads
Color: Black Part Number: TIF1120-18-01US
Material: Silicone
High Light:

Thermal Conductive Pad 1.8W/MK

,

Thermal Conductive Pad 18 Shore 00

,

Thermal Conductive Pad Black S

high cost-effective thermal conductive pad,black silicone rubber pads 18 Shore 00, 1.8W/mK


Company Profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market.

Our vast experience allows us to assist our customers best in thermal engineering field.

We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!



TIF100-18-01US-Specification-sheet.pdf


TIF1120-18-01US  thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.

Features
<Good thermal conductive:1.8W/mK
<Thickness:3.0mmT
<Hardness:18  Shore 00
<Colour: black

<Fiberglass reinforced for puncture, shear and tear resistance

<Naturally tacky needing no further adhesive coating

<High durability


Applications

<power supply

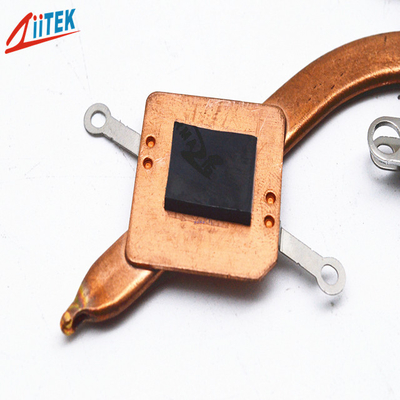

<Heat pipe thermal solutions

<Memory Modules

<Monitoring the Power Box

<AD-DC Power Adapters

<Rainproof LED Power

<Waterproof LED Power











Typical Properties of TIF1120-18-01US

Product Name

TIF1120-18-01US Series

Colour
black
Construction & Compostion
Ceramic filled silicone elastomer

Specific gravity

2.5 g/cc

Thickness

3.0mmT
Hardness
18 Shore 00
Dielectric constant@1MHz
4.5 MHz
Continuos Use Temp
-40to 160℃
Dielectric Breakdown Voltage
>5500 VAC
Thermal conductivity
1.8 W/mK
Volume Resistiviyt

1.0*1012 Ohm-cm

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)



TIF™ series Individual die cut shapes can be supplied.



Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Thermal Conductive Pad Black Silicone Rubber 18 Shore 00 1.8W/MK 0

FAQ

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .



Q: What kind of packaging you offer?

A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
