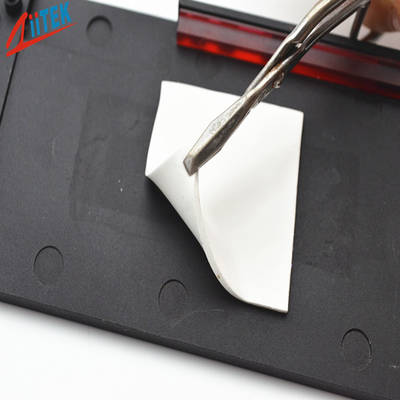

Rohs Compliant Cpu Thermal Pad Small Square Or Rectangular Sheet

Rohs Compliant Cpu Thermal Pad Small Square Or Rectangular Sheet

Rohs Compliant Cpu Thermal Pad Small Square Or Rectangular Sheet
video
Rohs Compliant Cpu Thermal Pad Small Square Or Rectangular Sheet
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF140-30-06US thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Hardness: 18 Shore00 KEYWORD: White Silicone Rubber Pads
Color: White Part Number: TIF140-30-06US
Material: Silicone Thermal Conductive: 3.0W/mK
High Light:

rohs compliant cpu thermal pad

,

square cpu thermal pad

,

rohs compliant thermal pad for cpu

high cost-effective RoHS compliant Moldability for complex parts silicone thermal pad for LED Controller,1.0mmT,3.0W/mK


Company Profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market.

Our vast experience allows us to assist our customers best in thermal engineering field.

We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!



TIF100-30-06US.pdf


TIF140-30-06US is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.

<Good thermal conductive:3.0W/mK
<Thickness:1.0mmT
<Hardness:18 Shore 00
<Colour: white

<Naturally tacky needing no further adhesive coating

<Available in varies thicknesses

<Broad range of hardnesses available

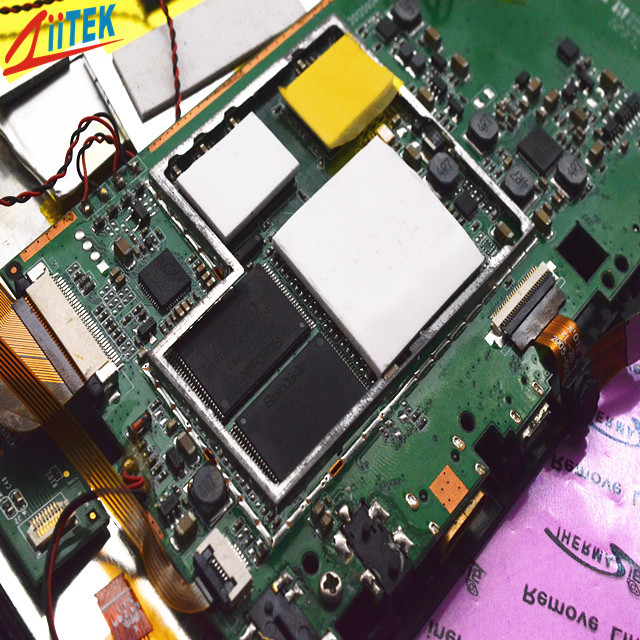

Applications

<CD-Rom, DVD-Rom cooling

<LED Power Supply

<LED Controller

<LED Ceilinglamp

<Monitoring the Power Box

<AD-DC Power Adapters









Typical Properties of TIF140-30-06US

Product Name

TIF140-30-06US Series

Colour
white
Construction & Compostion
Ceramic filled silicone elastomer

Specific gravity

3.0 g/cc

Thickness

1.0mmT
Hardness
18 Shore 00
Dielectric constant@1MHz
4.0 MHz
Continuos Use Temp
-40to 160℃
Dielectric Breakdown Voltage
>5500 VAC
Thermal conductivity
3.0 W/mK
Volume Resistiviyt

1.0*1012 Ohm-cm



Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL



Rohs Compliant Cpu Thermal Pad Small Square Or Rectangular Sheet 0
Rohs Compliant Cpu Thermal Pad Small Square Or Rectangular Sheet 1



Advantage



Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.

They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.



Rohs Compliant Cpu Thermal Pad Small Square Or Rectangular Sheet 2

FAQ

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
