| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF160-30-06US thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Hardness: | 18 Shore00 | KEYWORD: | White Silicone Rubber Pads |
|---|---|---|---|
| Color: | White | Part Number: | TIF160-30-06US |
| Material: | Silicone | Thermal Conductive: | 3.0W/mK |
| Highlight: | soft silicone thermal heatsink insulator pads,3.0w/mk silicone thermal heatsink insulator pads,compressible thermal pad for cpu |
||

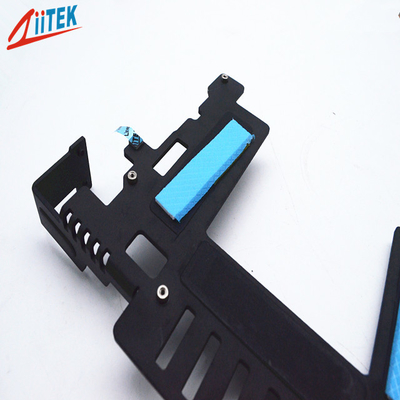

Soft and compressible for low stress applications 1.5mmT thermally conductive silicone rubber for CPU,3.0W/mK
Company Profile
With professional R&D capabilities and over 13 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.
<Moldability for complex parts
<Outstanding thermal performance
<High tack surface reduces contact resistance
<cooling components to the chassis of frame
<High speed mass storage drives
<Heat Sinking Housing at LED-lit BLU in LCD
<LED TV and LED-lit lamps
<RDRAM memory modules
<Micro heat pipe thermal solutions
|
Typical Properties of TIF160-30-06US
|
|||
|
Product Name
|
TIF160-30-06US Series |
||
|
Colour
|
white | ||
|
Construction & Compostion
|
Ceramic filled silicone elastomer
|
||
|
Specific gravity |
3.0 g/cc
|
||
|
Thickness |
1.5mmT
|
||
|
Hardness
|
18 Shore 00
|
||
|
Dielectric constant@1MHz
|
4.0 MHz
|
||
|
Continuos Use Temp
|
-40to 160℃
|
||
|
Dielectric Breakdown Voltage
|
>5500 VAC
|
||
|
Thermal conductivity
|
3.0 W/mK
|
||
| Volume Resistiviyt |
1.0*1012 Ohm-cm |
||
Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
