Led Controller 1.5mmt Cpu Pad Available In Varies Thicknesses

Led Controller 1.5mmt Cpu Pad Available In Varies Thicknesses

Led Controller 1.5mmt Cpu Pad Available In Varies Thicknesses
video
Led Controller 1.5mmt Cpu Pad Available In Varies Thicknesses
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF160-50-11US thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Hardness: 20 Shore00 KEYWORD: Gray Silicone Rubber Pads
Name: Led Controller 1.5mmt Cpu Pad Available In Varies Thicknesses Part Number: TIF160-50-11US
Material: Silicone
High Light:

led controller cpu pad

,

1.5mmt cpu pad

,

high hardness thermal pad for cpu

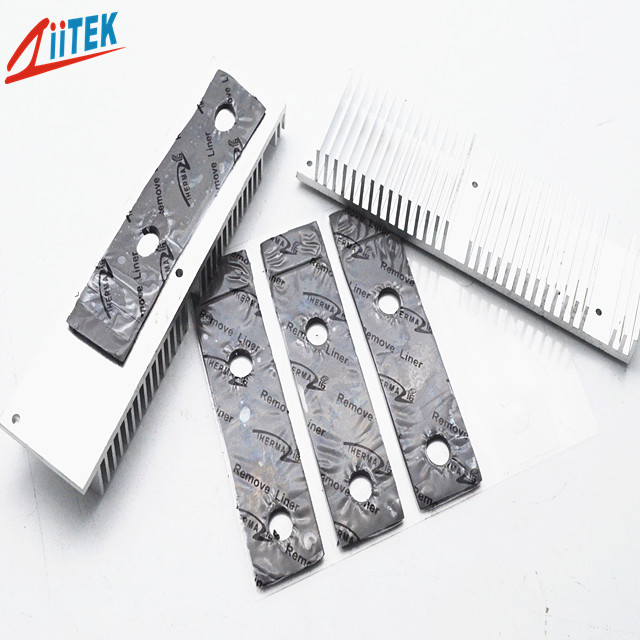

Available in varies thicknesses Outstanding thermal performance silicone sheets for LED Controller ,1.5mmT



Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.


TIF100-50-11US-Datasheet-REV02.pdf


TIF160-50-11US is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.

<Good thermal conductive:5.0W/mK
<Thickness:1.5mmT
<Hardness:20 Shore 00
<Colour: gray

<Moldability for complex parts

<Outstanding thermal performance

<High tack surface reduces contact resistance


Applications

<LED Power Supply

<LED Controller

<LED Ceilinglamp

<Monitoring the Power Box

<AD-DC Power Adapters

<Rainproof LED Power







Typical Properties of TIF160-50-11US

Product Name

TIF160-50-11US Series

Colour
gray
Construction & Compostion
Ceramic filled silicone elastomer

Specific gravity

2.9 g/cc

Thickness

1.5mmT
Hardness
20 Shore 00
Dielectric constant@1MHz
4.2 MHz
Continuos Use Temp
-40to 160℃
Dielectric Breakdown Voltage
>5500 VAC
Thermal conductivity
5.0 W/mK
Volume Resistiviyt

1.0*1012 Ohm-cm



Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.

Request adhesive on double side with "A2" suffix.



Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.



Led Controller 1.5mmt Cpu Pad Available In Varies Thicknesses 0





Ziitek Culture



Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.





Led Controller 1.5mmt Cpu Pad Available In Varies Thicknesses 1

FAQ

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
