| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF140-30-05US thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Application: | Notebook | Continuos Use Temp: | -40to 160℃ |
|---|---|---|---|
| Color: | Blue | Name: | High Durability 4.0 MHz Silicone Pads For SMD LED Module |
| Specific Gravity: | 3.0 G/cc | Dielectric Constant: | 4.0 MHz |
| Highlight: | high durability cpu thermal pad,4.0 mhz cpu thermal pad,smd silicone pad thermal conductivity |
||

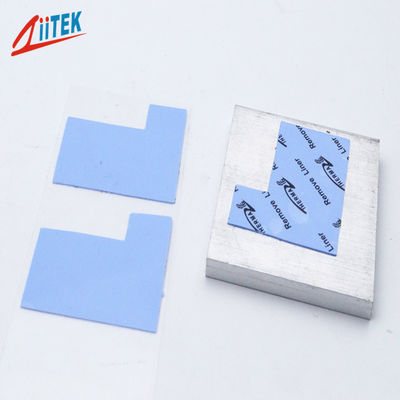

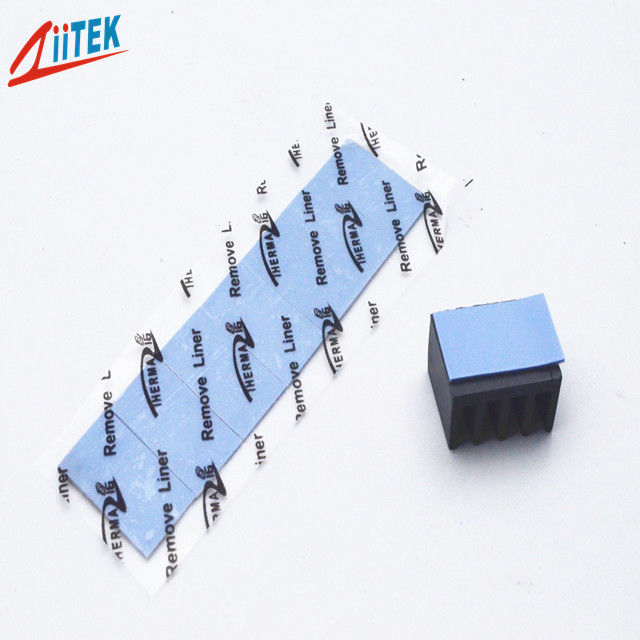

3.0W/mK high cost-effective silicone pads for power supply blue color
Company Profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
<Moldability for complex parts
<Outstanding thermal performance
<High tack surface reduces contact resistance
<mainboard/mother board
<notebook
<power supply
<Heat pipe thermal solutions
<Memory Modules
<Mass storage devices
|
Typical Properties of TIF140-30-05US
|
|||
|
Product Name
|
TIF140-30-05US Series |
||
|
Colour
|
blue | ||
|
Construction & Compostion
|
Ceramic filled silicone elastomer
|
||
|
Specific gravity |
3.0 g/cc
|
||
|
Thickness |
1.0mmT
|
||
|
Hardness
|
18 Shore 00
|
||
|
Dielectric constant@1MHz
|
4.0 MHz
|
||
|
Continuos Use Temp
|
-40 to 160℃
|
||
|
Dielectric Breakdown Voltage |
>5500 VAC
|
||
|
Thermal conductivity
|
3.0 W/mK
|
||
| Volume Resistiviyt |
1.0*1012 Ohm-cm |
||
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
FAQ
Q: What is your terms of payment ?
A: Payment<=2000USD, T/T in advance. Paying in time and faithful for several months, we can apply other payment term for you, pay together in every month or 30 days.
