RoHS Compliant Heat Sink Thermal Pad Suitable For Heat Pipe Thermal Solutions With Excellent Electrical Insulation Properties

RoHS Compliant Heat Sink Thermal Pad Suitable For Heat Pipe Thermal Solutions With Excellent Electrical Insulation Properties

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF1160-20-10UF thermal pad
Document: TIF100-20-10UF_Data Sheet.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 24*13*12cm carton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Products Name: RoHS Compliant Heat Sink Thermal Pad Suitable For Heat Pipe Thermal Solutions With Excellent Electrical Insulation Properties Thickness: 4.0mmT
Density: 2.8 G/cm³ Breakdown Strength(V/mm): ≥5500
Keyword: Thermal Pad Certification: ISO9001
Application: Heat Pipe Thermal Conductivity: 2.0K/m·K
Highlight:

RoHS Heat Sink Pad

,

4mm Heat Sink Pad

,

4mm Thermal Pad For Heat Sink

Product Overview

The TIF® 1160-20-10UF Series is a structurally supportive thermal pad designed to deliver effective heat dissipation while ensuring structural support and durability. It reliably fills interface gaps, transfers heat, and provides mechanical support for stacked components, resisting compressive deformation. This product is an ideal choice for applications that require a balance between heat dissipation, insulation, and mechanical stability.

Key Features
  • Good thermal conductivity
  • Good softness and fillability
  • Self-adhesive without the need for additional surface adhesives
  • Good insulation performance
Applications
  • Cooling components to the chassis of frame
  • High-speed mass storage drives
  • Heat sinking housing at LED-lit BLU in LCD
  • LED TV and LED-lit lamps
  • RDRAM memory modules
  • Micro heat pipe thermal solutions
Typical Properties of TIF® 100-20-10UF Series
PropertyValueTest Method
ColorGrayVisual
Construction & CompositionCeramic filled silicone elastomerZKTM J024
Density (g/cm³)2.8ASTM D792
Thickness Range (inch/mm)0.010~0.200 / 0.25~5.00ASTM D374
Hardness (Shore OO)75ASTM 2240
Recommended Operating Temperature-40 to 200°CZKTM J025
Breakdown Strength (V/mm)≥5500ASTM D149
Dielectric Constant @1MHz6.5ASTM D150
Volume Resistivity (Ohm-cm)>1.0×10¹²ASTM D257
Flame RatingV-0UL 94 (E331100)
Thermal Conductivity (W/m-K)2.0ASTM D5470
Thermal Conductivity (W/m-K)2.0ISO 22007
Packaging Details & Lead Time
Packaging of Thermal Pad
  1. With PET film or foam for protection
  2. Use paper card to separate each layer
  3. Export carton inside and outside
  4. Meet customers' requirements — customized
Lead Time

Quantity (Pieces): 5000

Estimated Time (days): To be negotiated

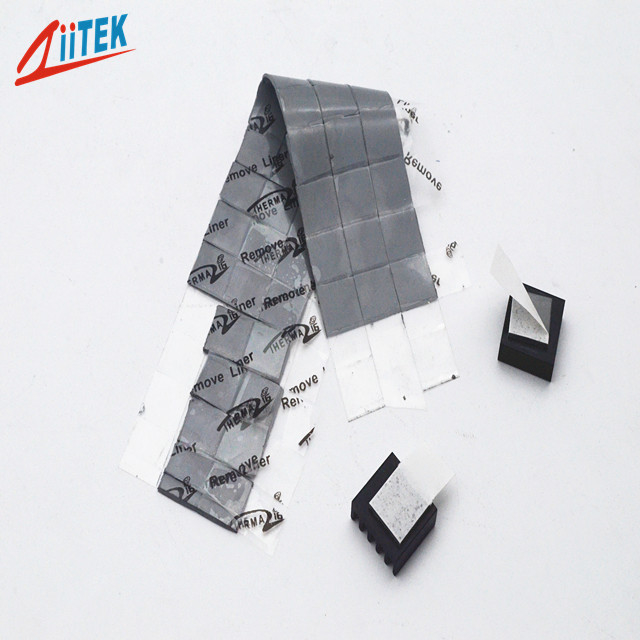

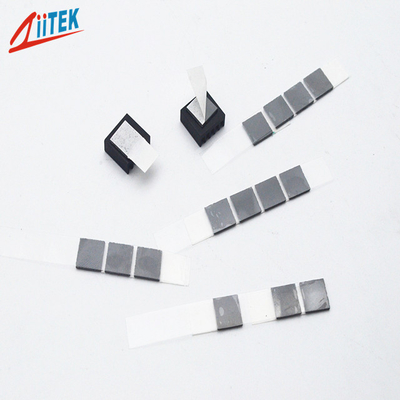

TIF 1160-20-10UF Series thermal pad product sample showing gray ceramic-filled silicone elastomer construction
Independent R&D Team
How to Place an Order
  1. Click the "Sent messages" button to continue with the process.
  2. Fill out the message form by entering a subject line and your message. This message should include any questions you might have about the products as well as your purchase requests.
  3. Click the "Send" button when you are finished to complete the process and send your message to us.
  4. We will reply to you as soon as possible via email or online.
Frequently Asked Questions

Q: Do you accept custom orders?

A: Yes, we welcome custom orders. Our custom elements include dimension, shape, color, and coating on one side or two sides with adhesive or fiberglass. If you want to place a custom order, please kindly offer a drawing or leave your custom order information.

Q: What is a Thermal Interface Material (TIM)?

A: TIM (Thermal Interface Material) refers to a class of materials used to fill microscopic air gaps between a heat source and a heat sink. TIMs help reduce interface thermal resistance and improve heat transfer from the heat source to the cooling structure. Common TIMs include thermal pads, thermal gels, thermal greases, phase change materials (PCMs), and liquid metal.

Q: What is Thermal Conductivity?

A: Thermal conductivity indicates a material's ability to conduct heat and is typically measured in W/m·K. Under the same testing conditions, a higher thermal conductivity generally indicates better heat-conduction capability.

Q: What is Thermal Resistance?

A: Thermal resistance indicates the resistance to heat flow through a material or interface and is typically expressed in K/W or °C/W. Lower thermal resistance generally means that heat can pass through the material more efficiently.

Q: What is the difference between Thermal Conductivity and Thermal Resistance?

A: Thermal conductivity primarily reflects the intrinsic heat-conduction capability of a material, while thermal resistance is also affected by factors such as thermal conductivity, material thickness, contact area, and interface conditions. In practical applications, it is important to consider not only thermal conductivity but also the overall thermal resistance of the TIM layer.

Company Profile

Ziitek is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically and thermally conductive interface pads, thermal grease, thermal conductive plastic, silicone rubber, silicone foams, and phase changing materials products, with well-equipped testing equipment and strong technical force.
