China Wholesale Thermal Conductive Graphite Sheet for Mobile Phone

China Wholesale Thermal Conductive Graphite Sheet for Mobile Phone

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHS
Model Number: TIR380-C-T2
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1-10USD/pcs
Packaging Details: 32*35*12cm cantons
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Product Name: China Wholesale Thermal Conductive Graphite Sheet For Mobile Phone Material: Carbon Nano Composite Copper Foil Vacuum Sputtering
Feature: Ultra Soft Typical Thermal Conductiivity(In Z Axis): 30W/m-K
Typical Thermal Conductiivity(In Z-Y Axis): 700W/mK Thickness: 0.08mmT
Keywords: Thermal Conductive Graphite Sheet
Highlight:

China Thermal Conductive Graphite Sheet

,

Mobile Phone Thermal Conductive Graphite Sheet

,

Wholesale Thermal Conductive Graphite Sheet

China Wholesale Thermal Conductive Graphite Sheet for Mobile Phone

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

TIR™380-C-T2 Series products are a new material with highly effective heat conductivity and absorption, stabilized device function and reduce the chance of malfunction by spreading the high temperature heat radiated from specific parts or devices.

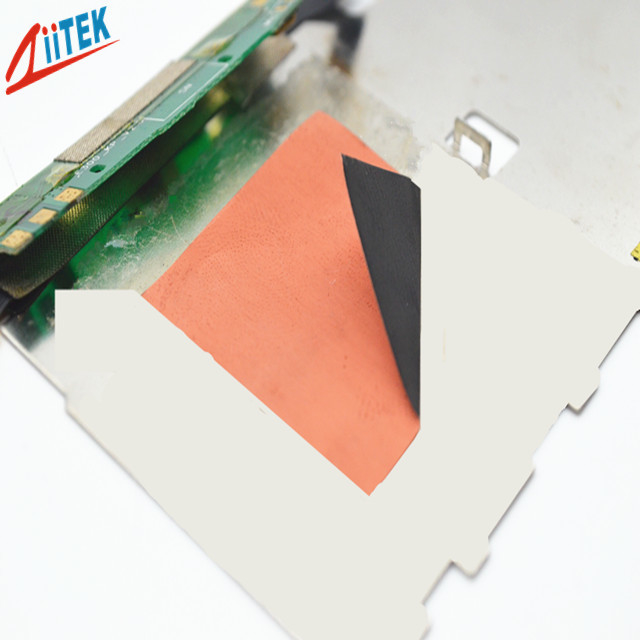

China Wholesale Thermal Conductive Graphite Sheet for Mobile Phone 0

Feature



> Good thermal conductive: 700 W/mK

> Moldability for complex parts
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized



Application



> PDP,LCD TV,Set top box

> Laptop,Notebook,Projector

> Mobile phone,Hand‐held devices

> Automotive electronics

Typical Properties of TIR™300C series
Product Name TIR™340C-T2 TIR™360-C-T2 TIR™380-C-T2 Test Method
Colour Black
Material Cearbon namo composite copper foil vacuum sputtering
Total Thickness 0.040 mm 0.060 mm 0.080mm ASTM D751
Copper foil thickness 0.038mm 0.057mm 0.077mm ASTM D751
Single-sided coating thickness 0.0010mm 0.0015mm 0.0015mm ASTM D751
Thickness Tolerance +/- 10% +/- 10% +/- 10% ASTM D751
Density 2.7 g/cc 2.7 g/cc 2.7 g/cc ASTM D297
Hardness 85 Shore A ASTM D2240
Operation Temperature -40℃~ 400℃ ******
Volume Resistivity 5.2X10³ Ohm-meter ASTM D257
Tensile Strength 30psi 35psi 40psi ASTM D412
Typical Thermal Conductivit (In Z axis) 30W/m-K 30W/m-K 30W/m-K ASTM D5470
Typical Thermal Conductivity (In X-Y axis) 700W/m-K 700W/m-K 700W/m-K ASTM D5470
Thermal Resistance @100psi 0.065 (in²℃/W) 0.079 (in²℃/W) 0.092 (in²℃/W) ASTM D5470

Standard Sheets Sizes : 500mm x 200m

TIR™ 300C series Individual die cut shapes can be supplied..

Consult the factory alternate thickness

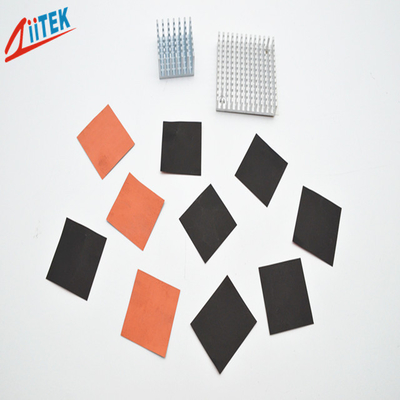

China Wholesale Thermal Conductive Graphite Sheet for Mobile Phone 1



Our services



Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples.



After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.



Packaging Details & Lead time

1.with PET film or foam-for protection.
2. use Paper Card To Separate Each Layer.
3. export carton inside and outside.
4. meet with customers' requirement-customized.

Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated.
