| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | RoHS |
| Model Number: | TIE280-12AB |
| Minimum Order Quantity: | 10kg |
|---|---|
| Price: | 1-100USD/kg |
| Packaging Details: | 1kg/can |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 10000kg/month |
| Material: | Epoxy Glue | Usage: | Bonding Electronics |
|---|---|---|---|
| Appearance Sured: | Black Solid | Continuous Use Temp: | -40 To 160℃ |
| Thermal Conductivity: | 1.2 W/mK | Name: | High Temperature Waterproof Dull Black Solid Thermal Epoxy Glue For Electronic Components Potting |
| Keywords: | Thermal Epoxy Glue | ||
| Highlight: | Solid Thermal Epoxy Glue,Dull Gray Thermal Epoxy Glue,Industrial Application Thermal Epoxy Glue |
||

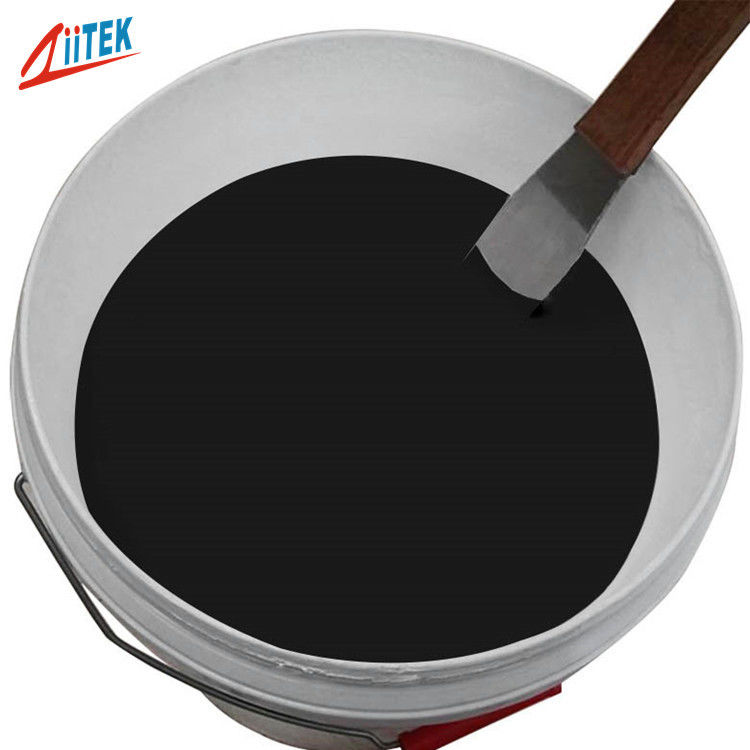

High Temperature Waterproof Dull Black Solid Thermal Epoxy Glue for Electronic Components Potting
Product Summary:
TIE™280-12AB is a two compound, high thermal conductive, low temperature cured, long pot life,fire resistant epoxy encapsulant compound. lt is design for potting of capacitors and electricaldevices.
TIE280-12AB-Series-Datasheet.pdf
Feature
> Good thermal conductive: 1.2W/mK
> Excellent insulation and smoothly sourface.
> Low shrinkage
> Low viscosity , expediting air releaseed.
> Excellent in solvents and water proof.
> Longer life time.
> Excellent thermal shock efficiecy andimpact resistance
Applications
> Automotive starters potting; General potting;
> Thermal detector potting
> Ferrite adhesion; TIP type LED; Good adhesion toaromatic polyester
> Relay sealant; Good adhesion to rubber, ceramics,PCB and plastics

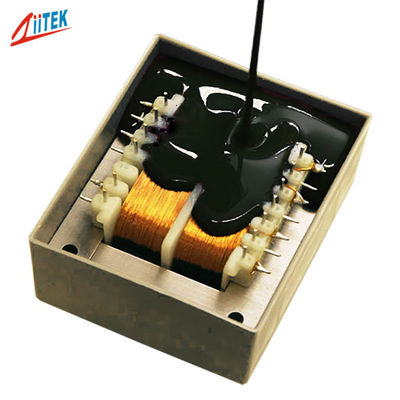

> Power transformers and coils; Potting capacitors;Potting of small electrical devices
> Adhesion to metal glass and plastic;LCD & substrates adhesion; Coating and sealant;Coil ; IGBTS;Transformer; Fire retardant
> Optical / medical component adhesive
| Typical Properties of TIE280-12AB Series | |||
| Typical Uncured Material | |||
| TIETM280-12A(Resin) | Mixing ratio (weight ratio) A:=1 :1 |
||
| Color | Black | ||
| Viscosity @25℃ Brookfield | 15000 cPs | Viscosity @25℃ Brookfield | 10000 cPs |
| Operating time (@25℃) | 45 mins | ||
| Shelf life @25℃ in sealed | 12 months | specific Gravity | 1.6 g/cc |
| Mixture Color | Black | ||
| TIE280-12B(Hardener) | Cure Schedule | ||
| Color | Black | Cure at 25C | 3 hrs |
| Viscosity @25℃ Brookfield | 7000 cPs | ||
| Shelf life @25℃ in sealed container | 12 months | Cure at 7o°c | 30 mins |
| Cured Properties | |||
| Hardness @25℃ | 85 Shore D | ||
| Operating temperature | -40℃ ~160℃ | ||
| Glass transition temperature Tg | 92℃ | ||
| Rate of tension | 0.10% | ||
| Coefficient of thermal expansion, /℃ | 3.0x 10^(-5) | ||
| Fire resistance uL | 94 V-0 | ||
| Moisture absorption % wt gain 24 hours water immersion @25℃ | <0.1% | ||
| Thermal Conductivity | 1.2 W/m-K | ||
| Dielectric Breakdown Voltage | 300 volts / mil | ||
| Dielectric Constant@1MHz | 4.2 | ||
| volume resistivity, ohm-cm @ 25℃ | 3.0x 10^13 | ||
Package:
1kg/can
5KG A/B each.
10KG A/B each.
