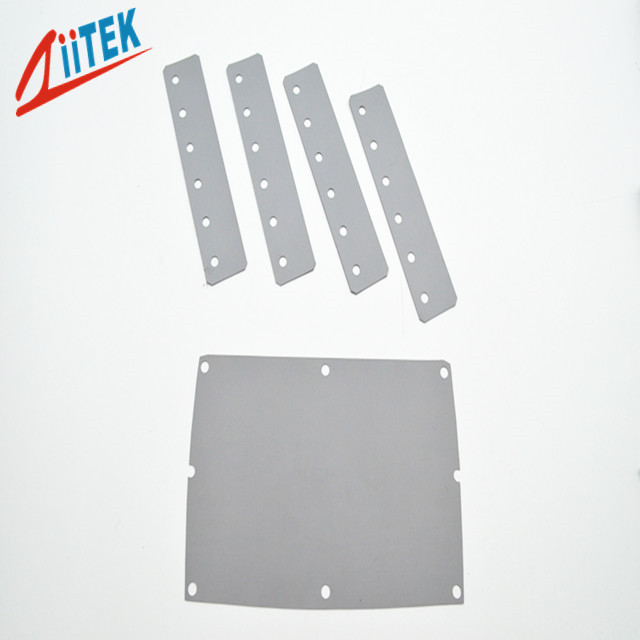

Thermal Insulation Materials Insulation Silicone Heat Electrical Cooler Material Heat Resistant Thermal Pad for GPU CPU
Company pfrofile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
TIS800-Series-Datasheet.pdf
The TIS™800 Series products are the high-efficiency insulation ones with thermal conduction properties. The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.
Features:
> Highly compliant surface characteristic with high thermal conductivity
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures
Applications:
> Power conversion equipment
> Power semiconductors:To packages, MOSFETs & IGBTs
> Audio and Video components
> Automotive control units
> Motor controllers
> General high pressure interface
|
Typical Properties of TIS™800 Series
|
| Product Name |
TISTM806 |
TISTM808 |
TISTM810 |
TISTM812 |
TISTM818 |
Test Method |
| Color |
Gray |
Gray |
Gray |
Gray |
Gray |
Visual |
Construction &
Compostion |
Ceramic filled silicone e |
*** |
| Composite Thickness |
0.006"/
0.152mm
|
0.008"/
0.203mm
|
0.010"/
0.254mm
|
0.012"/
0.304mm
|
0.018"/
0.457mm
|
ASTM D751 |
| Specific Gravity |
2.2 g/cc |
ASTM D297 |
| Heat Capacity |
1 l/g-K |
ASTM C351 |
| Hardness |
65 Shore A |
ASTM 2240 |
| Tensile Strength |
450 psi |
>600 psi |
>600 psi |
>600 psi |
>600 psi |
ASTM D412 |
| Continuos Use Temp |
-45℃ to 180℃ |
*** |
| Dielectric Breakdown Voltage |
>1500 VAC |
>3500 VAC |
>5000 VAC |
>5000 VAC |
>5000 VAC |
ASTM D149 |
| Dielectric Constant |
5.5 MHz |
ASTM D150 |
| Volume Resistivity |
5.0X10¹² Ohm-meter |
ASTM D257 |
| Fire rating |
94 V0 |
equivalent UL |
| Thermal conductivity |
1.6 W/m-K |
ASTM D5470 |
| Thermal Impedance @50psi |
0.21℃-in²/W |
0.35℃-in²/W |
0.82℃-in²/W |
1.23℃in²/W |
1.83℃-in²/W |
ASTM D5471 |
Standard Thicknesses:
0.009"(0.228mm) 0.012"(0.304mm)
0.018"(0.457mm)
Consult the factory alternate thickness.
Standard Sizes:
12" x 160'(304mm x 48.76M)
Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on doule side with "A2" suffix.
Reinforcement:
TIS™ series sheets are fiberglass reinforced.
Packaging Details & Lead time
The packaging of thermal insulation materials
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
