High Voltage Resist Thermal Conductive Insulator Silicone Sheet for IGBT
Company pfrofile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
TIS800K-Series-Datasheet.pdf

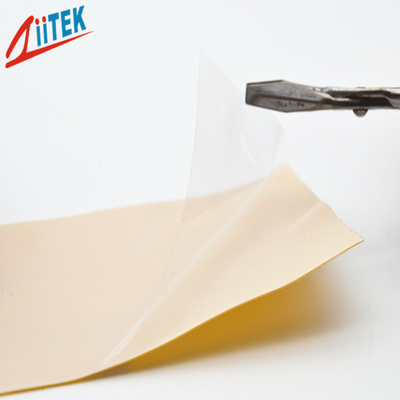

TIS800K Series is a high performance insulator.It combines MT Kapton film with a filled silicone rubber.The result is aproduct with good cut-through properties and excellent thermal performance.
TIS800K is designed to resist cut through in screw mounting applications while providing a more consistent breakdown voltage over other insulator constructions.The soft conformal coating on the film core provides an excellent mating surface for low pressure clip mounting applications.
Features:
> Highly compliant surface characteristic with high thermal conductivity
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures
Applications:
> Power conversion equipment
> Power semiconductors:To packages, MOSFETs & IGBTs
> Audio and Video components
> Automotive control units
> Motor controllers
> General high pressure interface
| Typical Properties of TIS™800K series |
| Product Name |
TIS™806K |
TIS™808K |
TIS™810K |
Test Method |
| Color |
Light Amber |
Visual |
| Composite Thickness |
0.005"/0.127mm |
0.007"/0.178mm |
0.008"/0.203mm |
ASTM D374 |
| MT Kapton ® Thickness |
0.001"/0.025mm |
0.001"/0.25mm |
0.002"/0.50mm |
ASTM D374 |
| Total Thickness |
0.006"/0.152mm |
0.008"/0.203mm |
0.01"/0.254mm |
ASTM D374 |
| Specific Gravity |
2.0 g/cc |
ASTM D297 |
| Tensile Strength |
>17.8Kpsi |
>20 Kpsi |
>20 Kpsi |
ASTM D412 |
| Continuous Use Temp |
-40 to 130℃ |
*** |
| Dielectric Breakdown Voltage |
>4000 VAC |
>5000 VAC |
>6000 VAC |
ASTM D149 |
| Dielectric Constant |
3.8MHz |
ASTM D150 |
| Volume Resistivity |
3.5X10¹³ Ohm-meter |
ASTM D257 |
| Flame Rating |
94 V0 |
equivalent UL |
| Thermal conductivity |
1.3 W/mK |
| Thermal Impedance@50psi |
0.12℃-in²/W |
0.16℃-in²/W |
0.21℃-in²/W |
ASTM D5470 |
Standard Thicknesses:
0.006"(0.152mm) , 0.008"(0.203mm),0.010"(0.254mm)
Consult the factory alternate thickness.
Standard Sizes:
10" x 100'(254mm x 25.4M)

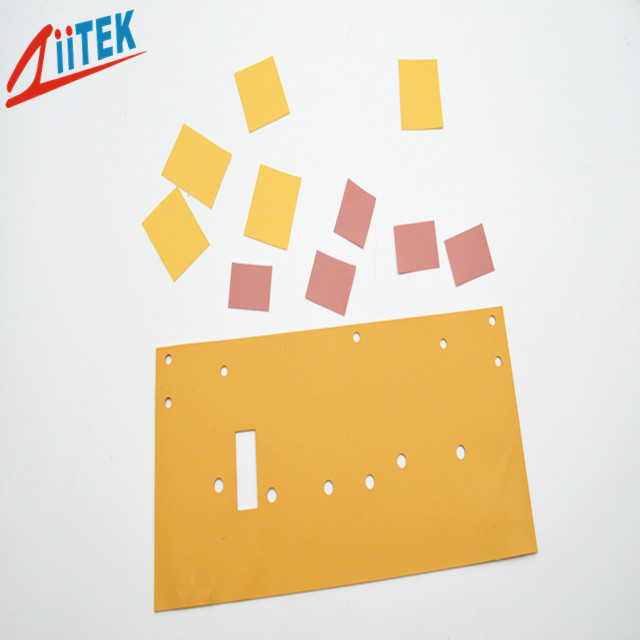

Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on doule side with "A2" suffix.
Packaging Details & Lead time
The packaging of thermal insulation materials
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
