Name: Wholesale Thermal Silicone Pad Electronic Heat-Conducting Insulating Material for GPU CPU
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIS100-01 series
Price: 4.10 USD
Availability: InStock

Home Products Thermally Conductive Electrical Insulator

Wholesale Thermal Silicone Pad Electronic Heat-Conducting Insulating Material for GPU CPU

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL & RoHS
Model Number:	TIS100-01 series

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/pcs
Packaging Details:	242312CM
Delivery Time:	3-6 work days

Contact Now

Detailed Product Description

Keyword:	Thermal Insulator Sheet	Application:	Chip And IGBT Heat Sink
Continous Use Temp:	-45 To 180℃	Compliance:	UL & RoHS
Materials:	Ceremic Filled Silicone Elastomer	Feature:	Soft And High Thermal Conductive
Highlight:	Wholesale Thermal Silicone Pad , GPU CPU Thermal Silicone Pad , Electronic Heat-Conducting Insulating Material

High Voltage Resist Thermal Conductive Insulator Silicone Sheet for IGBT

Company pfrofile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

Wholesale Thermal Silicone Pad Electronic Heat-Conducting Insulating Material for GPU CPU 0

Products details:

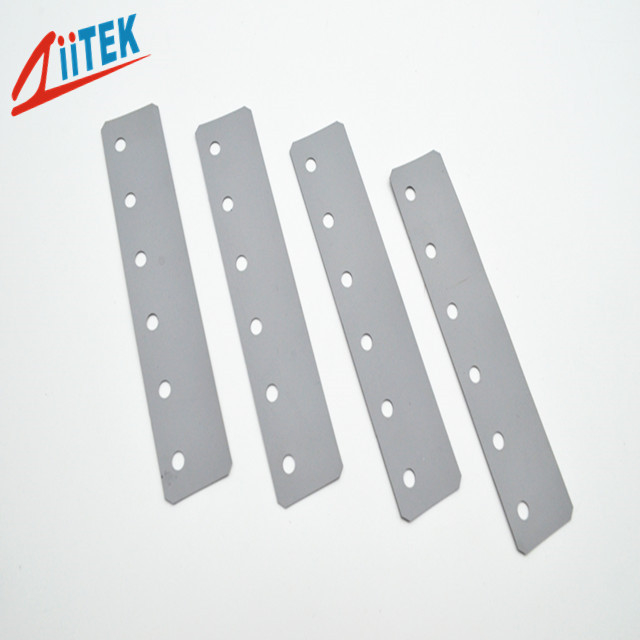

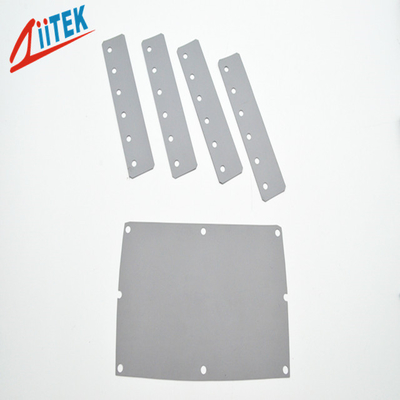

TIS100-01 Series products are the high-efficiency insulation ones with thermal conduction properties.The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.

TIS100-01-Serice-Datasheet.pdf

Wholesale Thermal Silicone Pad Electronic Heat-Conducting Insulating Material for GPU CPU 1

Features:

> Highly compliant surface characteristic with high thermal conductivity
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures

Applications:

> Power conversion equipment
> Power semiconductors:To packages, MOSFETs & IGBTs
> Audio and Video components
> Automotive control units
> Motor controllers
> General high pressure interface

Typical Properties TIF^TM100-01 Series
Color	Gray	Visual
Construction & Composition	Ceramic filled silicone elastomer	******
Thickness range	0.15mm-0.45mm	ASTM D374
Specific Gravity	2.06 g/cc	ASTM D297
Tensile Strength	425 Kpsi	ASTM D412
Continuous Use Temperature	-45~180℃	******
Dielectric breakdown voltage	＞3500VAC	ASTM D149
Dielectric Constant@1MHz	5.5	ASTM D150
Volume Resistivity	＞4*10¹² Ohm-cm	ASTM D257
Thermal Conductivity	1.0W/mk	ISO22007.2.2
Flame Rating	94 V0	UL E331100

Product Specification

Product Thicknesses

TIS 106-01: 0.15mm

TIS 108-01: 0.20mm

TIS 109-01: 0.23mm

TIS 110-01: 0.25mm

TIS 112-01: 0.30mm

TIS 118-01: 0.45mm

Product Sizes

12" x 160(304mm x 48.76M)

Individual die cut shapes and custom thickness can be supplied.

Pleasecontact us for confirming.

The product come standard with fiberglass reinforcement designated bythe suffix "FG".

Wholesale Thermal Silicone Pad Electronic Heat-Conducting Insulating Material for GPU CPU 2

Packaging Details & Lead time

The packaging of thermal insulation materials

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Our services

Online-service : 12 hours , Inquiry reply within fastest.

Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.
