Adhesive Double Sided Thermal Acrylic Tape for High Power Led Strips

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHS
Model Number:	TIA806FG

Payment & Shipping Terms:

Minimum Order Quantity:	1000rolls
Price:	0.1-10 USD/pcs
Packaging Details:	242312cm
Delivery Time:	3-6 work days
Payment Terms:	T/T
Supply Ability:	1000000rolls/month

Contact Now

Detailed Product Description

Color:	White	Feature:	Fiberglass Adhesive Double Side
Keywords:	Thermal Acrylic Tape	Application:	LED Light Led Strips
Name:	Fiberglass Adhesive Double Sided Thermal Tape For High Power Led Strips	Adhesive Type:	Acrylic Adhesive
Highlight:	Adhesive Thermal Acrylic Tape , Double Sided Thermal Acrylic Tape , Thermal Acrylic Tape for Led Strips

Adhesive Double Sided Thermal Acrylic Tape for High Power Led Strips

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

The TIA™800FG Series products are mostly used for bonding heat dissipation fins, microprocessors and other power consumption semiconductors. This type of adhesive tape possesses ultimate bonding strength with low thermal impedance, with which in effect can be able to replace the method of lubricating grease and mechanical fixing.

TIA800FG-Series-Datasheet-REV01.pdf

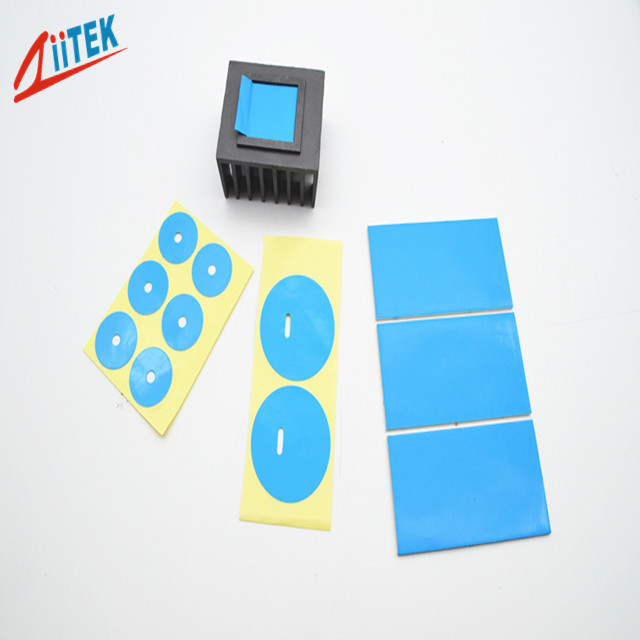

Adhesive Double Sided Thermal Acrylic Tape for High Power Led Strips 0

Features

> Thermal Conductivity: 0.8 W/mK
> High bond strength to a variety of surfaces double sided pressure sensitive adhesive tape
> High performance, thermally conductive acrylic adhesive

Applications

> Mount heat sink onto BGA graphic processor or drive processor
> Mount heat spreader onto power converter PCB or onto motor control PCB
> High performance, thermally conductive acrylic adhesive
> Can be used instead of heat cure adhesive,screw mounting or clip mounting

Typical Properties of TIA™800FG Series
Product Name	TIA^TM805FG	TIA^TM806FG	TIA^TM808FG	TIA^TM810FG	TIA^TM815FG	TIA^TM820FG	Test Method
Color	White						Visual
Adhesive Type	Acrylic Adhesive						********
Backing Type	Glass fiber						********
Composite Thickness	0.005" 0.127mm	0.006" 0.152mm	0.008" 0.203mm	0.010" 0.254mm	0.015" 0.381mm	0.020" 0.508mm	ASTM D374
Aluminum Foil Thickness	±0.001" ±0.025mm	±0.001" ±0.025mm	±0.0012" ±0.03mm	±0.0012" ±0.03mm	±0.0015" ±0.038mm	±0.002" ±0.05mm	ASTM D374
Voltage Breakdown	> 2000 Vac	> 2000 Vac	> 2300 Vac	> 3000 Vac	> 3500 Vac	> 3500 Vac	ASTM D149
Peel Adhesion	1200 g/inch2						JIS K02378
Holding Power 25℃/Days	> 120 kg/inch2						JIS K023711
Holding Power 120℃/Hours	> 10 kg/inch2						JIS K023711
Recommend Using Pressure	10 psi						********
Thermal Conductivity	0.8 W/mK						********
Thermal Impedance@50psi	0.52℃-in²/W	0.59℃-in²/W	0.83℃-in²/W	0.91℃-in²/W	1.15℃-in²/W	1.43℃-in²/W	ASTM D5470

Standard Thicknesses:
0.005"(0.127mm) 0.006"(0.152mm) 0.008"(0.203mm) 0.010"(0.254mm) 0.015"(0.381mm) 0.020"(0.508mm)
Consult the factory alternate thickness.

Standard Sizes:
10" x 18"(254mm x 457mm) 10" x 400'(254mm x 121.9M)
Individual die cut shapes can be supplied.

Reinforcement:
TIA™800 Series sheets are fiberglass reinforced.

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
