Name: Wholesale High Thermal Conductive Flexible Graphite Sheet For Smart Phone
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIR™600
Price: 4.10 USD
Availability: InStock

Home Products Thermal Graphite Sheet

Wholesale High Thermal Conductive Flexible Graphite Sheet For Smart Phone

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHS
Model Number:	TIR™600

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10USD/pcs
Packaging Details:	323512cm cantons
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Material:	Synthetic Graphite	Feature:	Ultra Soft
Color:	Black	Product Name:	Manufacturer Wholesale High Thermal Conductive Flexible Graphite Sheet For Smart Phone
Keywords:	Thermal Graphite Sheet	Hardness:	85 ShoreA
Highlight:	Flexible Graphite Sheet For Smart Phone , High Thermal Conductive Graphite Sheet , Wholesale Graphite Sheet

Manufacturer Wholesale High Thermal Conductive Flexible Graphite Sheet For Smart Phone

With professional R&D capabilities and over 18 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

TIR™600 Series products are high-performance and heat-conductive interface materials with the reasonable prices.They can be used in applications where no requirement for electric insulation is specified.The unique grain orientationand plate structure enable these products to adapt to different contact surfaces closely, and thus the maximized heatconduction function is attained.

TIR-600-Series-Natural-graphite-gasket (1).pdf

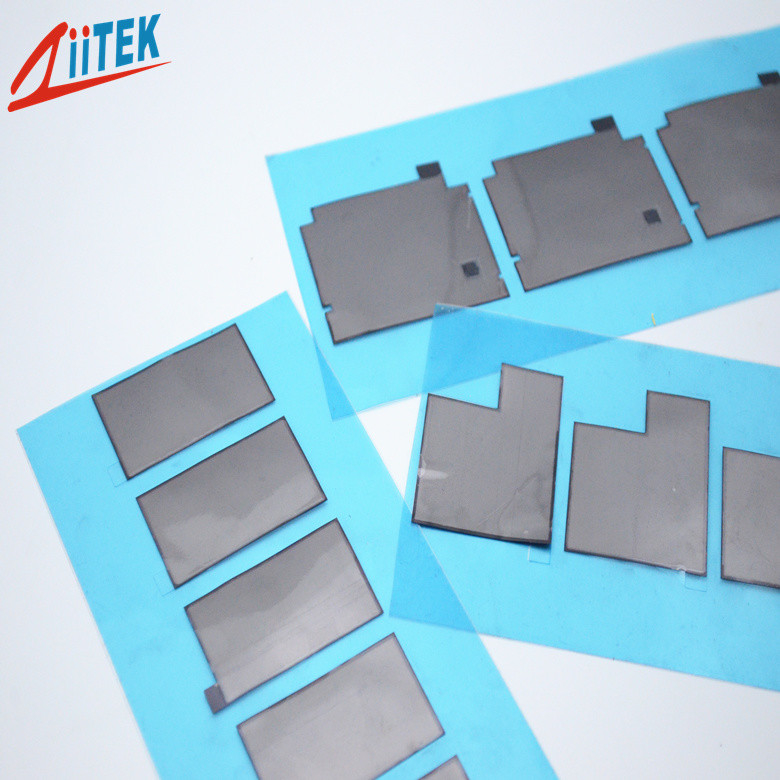

Wholesale High Thermal Conductive Flexible Graphite Sheet For Smart Phone 0

Feature

Good thermal conductive 240W/mK

Easy to assemble

Ultra-thin type

RoHS Compliant

Application

PDP,LCD TV,Set top box

Laptop,Notebook,Projector

Mobile phone,Hand‐held devices

Automotive electronics

Typical Properties of TIR™600 series
Product Name	TIR™605	TIR™606	TIR™610	TIR™620	Test Method
Colour	Black
Material	Natural Graphite
Thickness	0.005" (0.127 mm)	0.006" (0.152 mm)	0.010" (0.254 mm)	0.020" (0.508 mm)	ASTM D751
Total Thickness	+/- 10%	+/- 10%	+/- 5%	+/- 5%	ASTM D751
Density	2.2 g/cc	2.2 g/cc	2.2 g/cc	2.2 g/cc	ASTM D297
Hardness	85 Shore A				ASTM D2240
Operation Temperature	-200℃~ 300℃				******
Volume Resistivity	3.2X10³ Ohm-meter				ASTM D257
Typical Thermal Conductivit (In Z axis)	6.0W/m-K	6.0W/m-K	6.0W/m-K	6.0W/m-K	ASTM D5470
Typical Thermal Conductivity (In X-Y axis)	240 W/m-K	240 W/m-K	240 W/m-K	240 W/m-K	******
Thermal Resistance @100psi	0.037 (in²℃/W)	0.042 (in²℃/W)	0.057 (in²℃/W)	0.098 (in²℃/W)	ASTM D5470

Standard Sheets Sizes :

500mm*50m

TIR™ 600 series Individual die cut shapes can be supplied.

Consult the factory altermate thickness

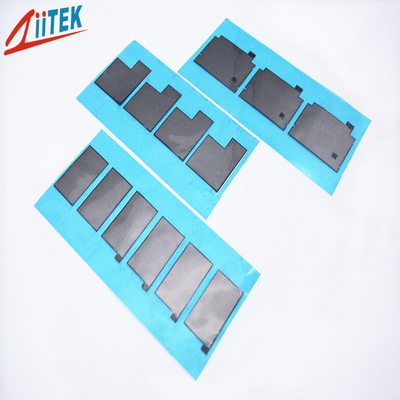

Wholesale High Thermal Conductive Flexible Graphite Sheet For Smart Phone 1

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract

Packaging Details & Lead time

1.with PET film or foam-for protection.
2. use Paper Card To Separate Each Layer.
3. export carton inside and outside.
4. meet with customers' requirement-customized.

Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated.

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.
