Name: Works Under Low Pressure Carbon Fibre Based Thermal Pad For Optoelectronics industry
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TS-TIR700-25
Price: 4.10 USD
Availability: InStock

Home Products Thermal Graphite Sheet

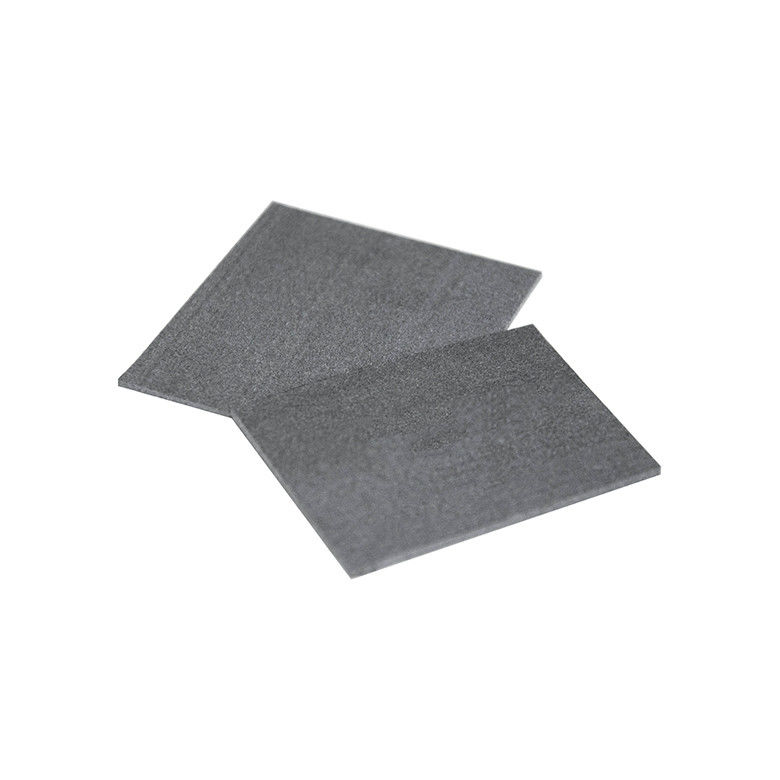

Works Under Low Pressure Carbon Fibre Based Thermal Pad For Optoelectronics industry

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHS
Model Number:	TS-TIR700-25

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10USD/pcs
Packaging Details:	241312cm cartons
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Products Name:	Works Under Low Pressure Carbon Fibre Based Thermal Pad For Optoelectronics Industry	Keywords:	Thermal Pad
Feature:	Ultra-low Thermal Resistance	Thermal Conductiivity:	25W/m-K
Color:	Gray	Hardness:	85±5/60±10 Shore 00
Material:	Carbon Fiber Filled Silicone	Density:	2.9g/cc
Application:	Optoelectronics Industry
Highlight:	Optoelectronics Carbon Fibre Based Thermal Pad , Low Pressure carbon fibre thermal pad , carbon fibre thermal pad

Works Under Low Pressure Carbon Fibre Based Thermal Pad For Optoelectronics industry

Company profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

Products introduction
TS-TIR^®700-25 Series series is a high-performance carbon-based thermal pad that combines highly thermally conductive carbon fiber with polymer silicone materials. Utilizing advanced manufacturing processes to precisely distribute thermal pathways, it achievese xceptional thermal conductivity, effectively reducing interfacial thermal resistance and enhancing heat dissipation efficiency. With its ultra-thin, lightweight design and mechanical flexibility, it is suitable for 5G equipment, high-performance chips, and other high heat flux applications.

Feature

>Good thermal conductivity 25w/mK

>Ultra-low thermal resistance
>works under low pressure.

>Non-insulating material with electrical conductivity

>Non-adhesive surface

Application

>Between chips and heat dissipation modules

>5G communication equipment
>Optoelectronics industry

>wearable devices

Typical Properties of TIR^®700-25 series
Product Name	TIR^®700-25		Test Method
Colour	Gray		Visual
Construction	Carbon fiber filled silicone		*****
Thickness range	0.01"~0.02" (0.3~0.5 mm)	0.04"~0.20"(1.0~5.0 mm)	ASTM D374
Hardness	85±5 Shore 00	60±10 Shore 00	ASTM D2240
Density	2.9g/cm3		ASTM D792
Operation Temperature	-40℃~ 200℃		******
Thermal impedance	25.0W/m-K		ASTM D5470
Specific heat capacity (J/g ℃)	0.75		ASTM E1269 @25℃
Flame Rating	V-0		UL94
RoHS	Compliant		IEC62321

Product Specification
Standard Thickness:0.01" (0.3mm), 0.02"(0.5mm), 0.04"(1.0mm), 0.06" (1.5mm), 0.08" (2.0mm), 0.10" (2.5mm), 0.12" (3.0mm)

Standard Size: 1.97"×1.97"(50.0mm x 50.0mm)

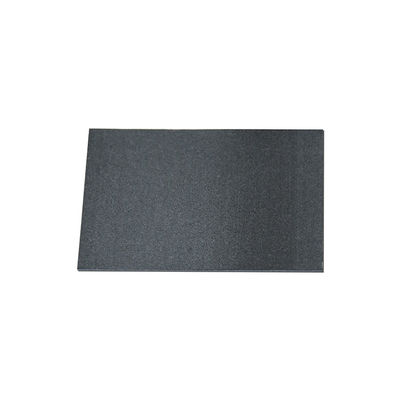

Works Under Low Pressure Carbon Fibre Based Thermal Pad For Optoelectronics industry 0

Packaging Details & Lead time

1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated

Independent R&D team

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us

4. We will reply you as soon as possible with Email or online.
