| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | RoHS |
| Model Number: | TIR™606 |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | 0.1-10USD/pcs |
| Packaging Details: | 32*35*12cm cantons |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Material: | Natural Graphite | Feature: | Ultra High Thermal Conductivity |
|---|---|---|---|
| Color: | Black | Hardness: | 85 ShoreA |
| Keywords: | Graphite Sheet | Operation Temperature: | -200℃ To 300℃ |
| Thickness: | 0.006"(0.152mm) | Density: | 2.2g/cc |
| Highlight: | Mobile Phones Thermal Graphite Sheet,Low Thermal Resistance Thermal Conductive Sheet,Low Thermal Resistance Thermal Graphite Sheet |
||

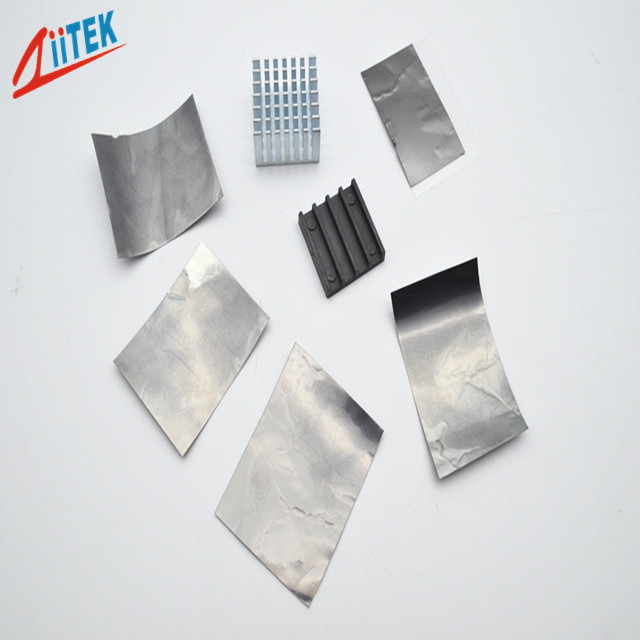

Low Thermal Resistance Thermal Conductive Sheet Graphite Sheet for Mobile Phones
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
The TIR™606 series graphite sheet delivers up to 240W/m-K thermal conductivity, with ultra-high performance in a lightweight, thin design. It offers twice the thermal diffusion of copper and weighs only one-fifth as much. Cost-effective at one-third the price of synthetic graphite sheets, TIR™606 series graphite sheet is easy to process, cut into shapes, and mass-produce with double-sided tape and insulating materials. With over 98wt% carbon content, it meets EU environmental standards, making it a reliable and eco-friendly thermal management solution.
TIR-600-Series-Natural-graphite-gasket (1).pdf
Features
> Ultra high thermal conductivity
> Easy to assemble
> Low mass decreases space
> EMI reduction
Applications
Electronic components - 5G, Aerospace, AI, AIoT, AR/VR/MR/XR, Automotive, Consumer Devices, Datacom, Electric Vehicle, Electronic Products, Energy Storage, Industrial, Lighting Equipment, Medical, Military, Netcom, Panel, Power Electronics, Robot, Servers, Smart Home, Telecom, etc.
| Typical Properties of TIR™600 series | |||||
| Product Name | TIR™605 | TIR™606 | TIR™610 | TIR™620 | Test Method |
| Colour | Black | ||||
| Material | Natural Graphite | ||||
| Thickness |
0.005" (0.127 mm) |
0.006" (0.152 mm) | 0.010" (0.254 mm) | 0.020" (0.508 mm) | ASTM D751 |
| Total Thickness | +/- 10% | +/- 10% | +/- 5% | +/- 5% | ASTM D751 |
| Density | 2.2 g/cc | 2.2 g/cc | 2.2 g/cc | 2.2 g/cc | ASTM D297 |
| Hardness | 85 Shore A | ASTM D2240 | |||
| Operation Temperature | -200℃~ 300℃ | ****** | |||
| Volume Resistivity | 3.2X10³ Ohm-meter | ASTM D257 | |||
| Typical Thermal Conductivit (In Z axis) | 6.0W/m-K | 6.0W/m-K | 6.0W/m-K | 6.0W/m-K | ASTM D5470 |
| Typical Thermal Conductivity (In X-Y axis) | 240 W/m-K | 240 W/m-K | 240 W/m-K | 240 W/m-K | ****** |
| Thermal Resistance @100psi | 0.037 (in²℃/W) | 0.042 (in²℃/W) | 0.057 (in²℃/W) | 0.098 (in²℃/W) | ASTM D5470 |
Standard Sheets Sizes :
500mm*50m

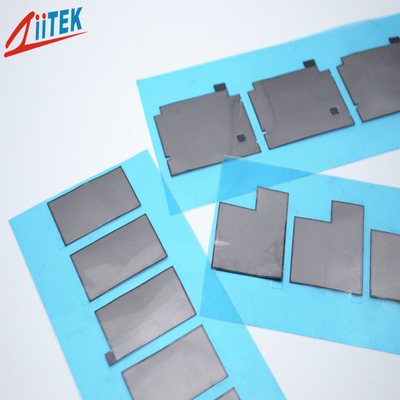

TIR™ 600 series Individual die cut shapes can be supplied.
Consult the factory altermate thickness
Packaging Details & Lead time
The packaging of Graphite Sheet
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How to find a right thermal conductivity for my applications
A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
Q: How do I request customized samples of graphite sheet?
A: To request samples, you can leave us message on website, or contact us by email or call us.
