Name: CPU GPU Gap Filling Material Thermally Conductive Electrical Insulation Silicone Pad for Heatsink Cooling
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIS100-05 Series
Price: 4.10 USD
Availability: InStock

Home Products Thermally Conductive Electrical Insulator

CPU GPU Gap Filling Material Thermally Conductive Electrical Insulation Silicone Pad for Heatsink Cooling

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL & RoHS
Model Number:	TIS100-05 Series

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/pcs
Packaging Details:	242312CM
Delivery Time:	3-6 work days

Contact Now

Detailed Product Description

Keyword:	Electrical Insulation	Application:	CPU GPU Gap Filling
Continous Use Temp:	-45 To 180℃	Compliance:	UL & RoHS
Materials:	Ceremic Filled Silicone Elastomer	Feature:	High Thermal Conductive And High Dielectric Etrength
Highlight:	Heatsink Cooling Silicone Pad , Thermally Conductive Electrical Insulation Silicone Pad , CPU GPU Silicone Pad

CPU GPU Gap Filling Material Thermally Conductive Electrical Insulation Silicone Pad for Heatsink Cooling

Company pfrofile

With professional R&D capabilities and over 18 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

CPU GPU Gap Filling Material Thermally Conductive Electrical Insulation Silicone Pad for Heatsink Cooling 0

Products details:

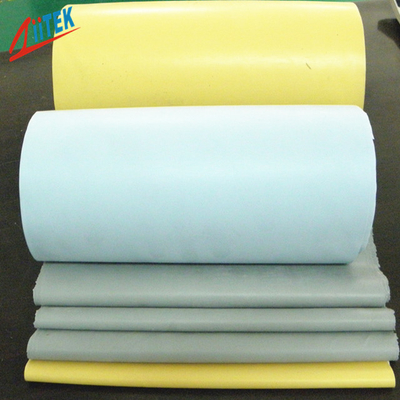

TIS100-05 Series products are the high-efficiency insulation ones with thermal conduction properties.The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.

TIS100-05-Serice-Datasheet-REV01.pdf

CPU GPU Gap Filling Material Thermally Conductive Electrical Insulation Silicone Pad for Heatsink Cooling 1

Features:

> High thermal conductive and High dielectric etrength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures

Applications:

> Car Battery & Power Supply
> Power semiconductors:To packages, MOSFETs & IGBTs
> Audio and Video components
> Automotive control units
> Motor controllers

Typical Properties of TIS100-05 series
Product Name	TIS109-05	TIS112-05	TIS118-05	Test Method
Color	blue			Visual
Construction &Compostion	Ceramic filled silicone elastomer / Fiberglass			*******
Composite Thickness	0.23mm	0.3mm	0.45mm	ASTM D374
Hardness	50 Shore 00			ASTM D751
Specific Gravity	1.72g/cc			ASTM D297
Tensile Strength	425 Kpsi			ASTM D412
Continuous Use Temp	-45 to 180℃			*******
Dielectric Breakdown Voltage	>3500 VAC			ASTM D149
Dielectric Constant	5.5 MHz			ASTM D150
Volume Resistivity	4.0X10¹³ Ohm-meter			ASTM D257
Flame Rating	94 V0			E331100
Thermal conductivity	1.0 W/mK			ASTM D5470

Standard Thicknesses:
0.009"(0.228mm)0.012"(0.304mm)0.018"(0.457mm)

Consult the factory alternate thickness.

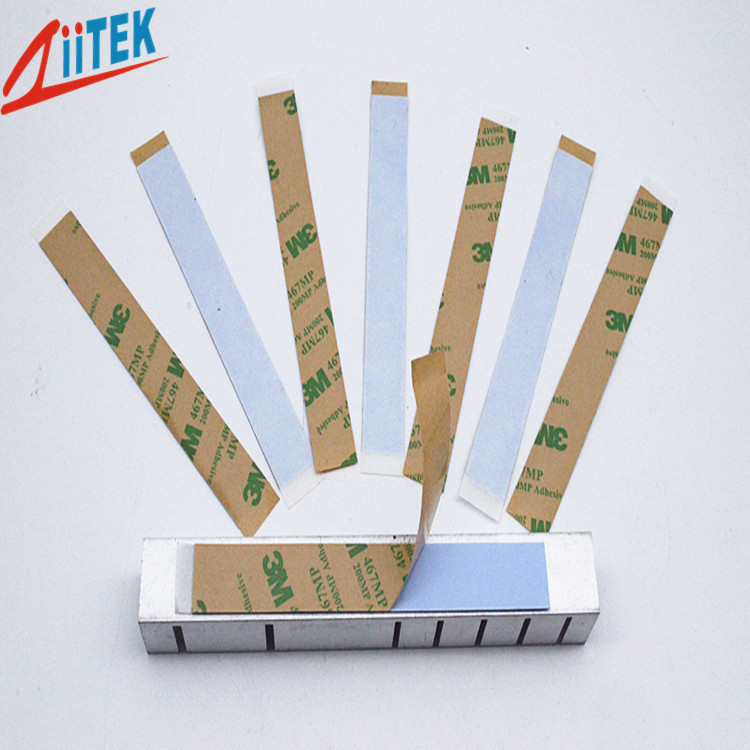

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.

Request adhesive on doule side with "A2" suffix.

Standard Sizes:
12" x 160"(304mm x 48.76M)
lndividual die cut shapes can be supplied.

Packaging Details & Lead time

The packaging of thermal insulation materials

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
