4.5W/MK Thermal Conductive glue Material Conductive Epoxy Resin Potting Compound adhesive Gel Low Thermal Resistance

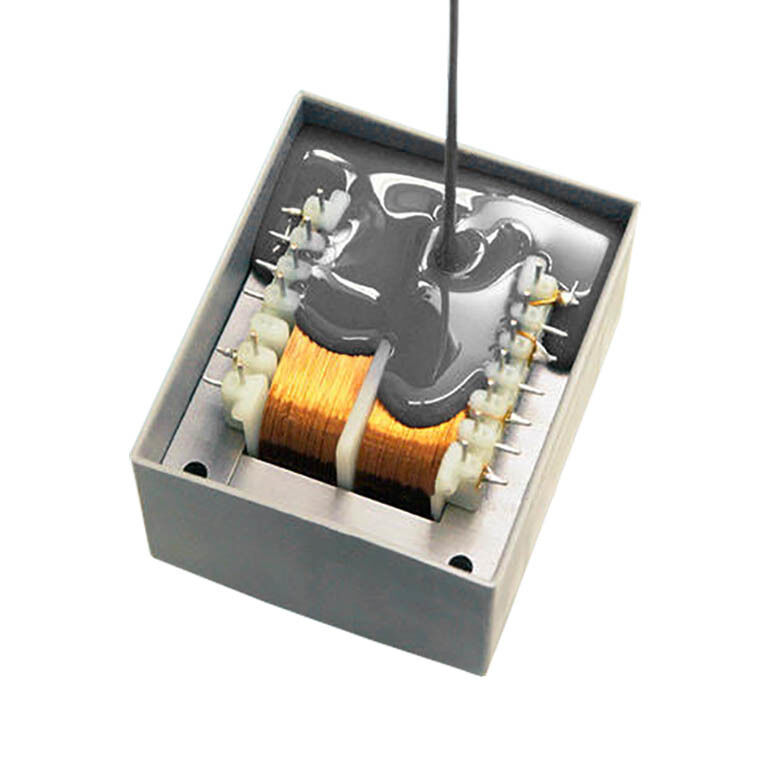

TIE®380-45 is a single-component heat-curable modified epoxy resin adhesive containing high-purity thermally conductive fillers. It features high thermal conductivity, low shrinkage, high bonding strength, and excellent thermal shock resistance. Ready-to-use,it is suitable for automatic dispensing / screen printing. It is used for structural thermal conductive bonding, fixing,and potting of electronic components and heat sinks, improving heat dissipation efficiency and long-term reliability.
Feature
> High thermal conductivity
> Single-component design, easy and efficient to use
> Strong bonding performance and stable structure
> Low shrinkage rate
> Good thermal shock resistance
Application
> Thermal conductive bonding for power electronic devices
> LED lighting field
> Encapsulation and fixing of precision electronic components
> PCB board heat dissipation treatment
> Thermal conductive bonding of core components of medical devices
| Typical Properties of TIE®380-45 |
| Property |
Value |
Test Method |
| Construction & Composition |
Epoxy resin |
- |
| Appearance (Before Curing) |

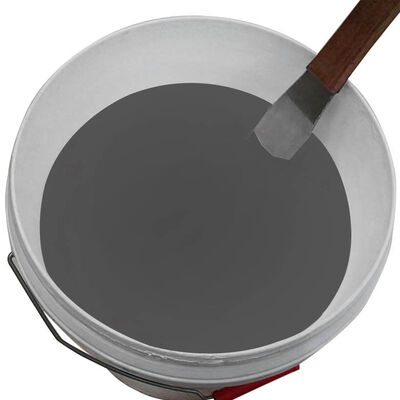

Gray Paste |
Visual |
| Appearance (After Curing) |
Gray Solid |
Visual |
| Components |
Single Component |
- |
| Viscosity(cps) |
15,000 |
GB/T 10247 |
| Density(g/cm³) |
2.0 |
ASTM D2240 |
| Hardness(Shore A) |
92 |
ASTM D2240 |
| Recommended Operating Temperature (°C) |
-40 ~ 200℃ |
- |
| Shear strength (psi) (AI/AI) 25℃ |
>2900 |
ASTM D1002 |
| Thermal Conductivity(W/m-K) |
4.5 |
ASTM D5470 |
| Shelf Life (Day) @25℃ |
10 (Unopened) |
- |
| Shelf Life (Month) @0℃ |
6(Unopened) |
- |
| Curing Conditions |
| Curing Temperature 100°C |
Curing Time 4h |
Ziitek Test Method |
| Curing Temperature 125°C |
Curing Time 4h |
Ziitek Test Method |
Application Guide
Notice:
1.Pleascareulreadthesafetyandhginenformaioneforeuseandstriclfolwteinstructionsontheproductlabeansaftmanual
2.To ensure thatelectronicpackagingcomponentsmaintain stable andexcellent performanceover thelong term,thesurfaceof the components must be thoroughly cleaned before each packaging to remove dust, moisture, salt, grease,and other contaminants. These substances can cause quality issues such as short circuits, poor adhesion, and corrosion.
3. Storage methods and temperature can affect the shelf life.
Safety/Hygiene:
1. Similar to other resin products,this product is irritating to human skin and eyes. In some individuals,skin contact or inhalation of its emitted vapors may cause allergic reactions, primarly characterized by rash and skin itching. In high-temperature work environments,it may also trigger respiratory odor sensitivity.
2. The curing agent is corrosive to skin and eyes. Direct contact can cause burns. In some individuals, skin contact or inhalation of its emitted vapors may cause skin or respiratory allergies,with symptoms including rash, itching,and dificulty breathing. Odor sensitivity of the respiratory system may also occur during handling.
3. Good hygiene and safety practices must be observed when handling this product. Safety goggles and chemical-resistant clothing should be worn during work to avoid direct contact. For detailed information on engineering controls, personal protective equipment (PPE), and first aid measures, please refer to the Product Safety Data Sheet (SDS).
Product Specifications
1 kg/can, 300 ml/tube
If you would like to learn about products in different specifications, please contact our company.
If you want to learn more about thermal conductive materials,please visit our company's website.
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
