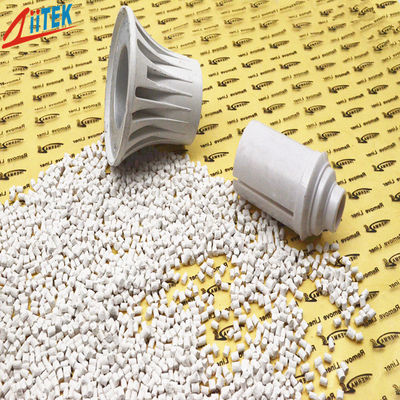

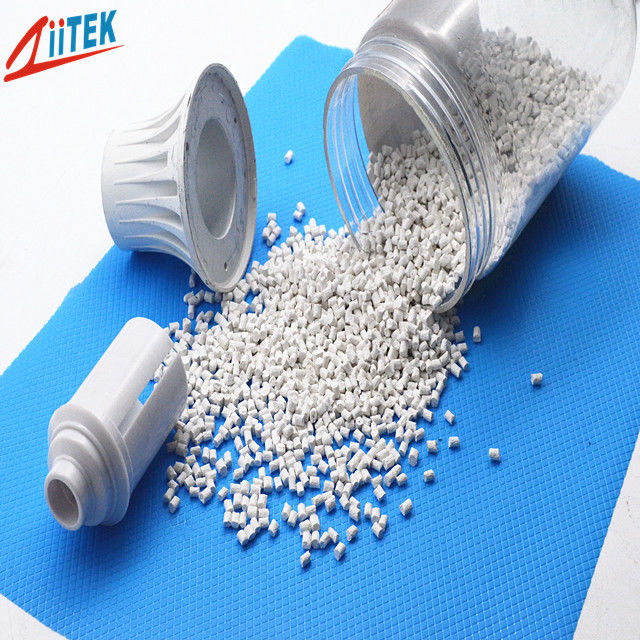

LED Thermal Conductive Nylon Granules Pellets Form White Plastic Heat Conduction Material

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHS
Model Number:	TCP200-30-06A

Payment & Shipping Terms:

Minimum Order Quantity:	10kg
Price:	USD 0.1-10/kg
Packaging Details:	25kg/bag
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	1000000pcs/month

Contact Now

Detailed Product Description

Products Name:	LED Thermal Conductive Nylon White Plastic Heat Conduction Material In Granules Pellets Form	Keyword:	Thermally Conductive Plastic
Application:	LED Light Housing	Feature:	Lighter Than Normal Aluminum Housing
Specific Gravity:	1.65 G/cm3	Heat Deflection Temperature:	150℃
Thermal Conductivity:	3.0W/m-K
Highlight:	Granules Pellets Heat Conduction Material , LED Thermal Conductive Nylon , White Plastic Heat Conduction Material

Lighter Than Normal Aluminum Housing White Heat Conductive Plastic 1.8W For LED Light Housing

TCP^TM200-30-06A is a Thermally Conductive Engineering Plastic developed for the housing design which requires high thermally conductivity and reduces the weight more than 30% comparing with the same aluminium devices.

TCP200-30-06A Thermally Conductive plastic.pdf

LED Thermal Conductive Nylon Granules Pellets Form White Plastic Heat Conduction Material 0

Application

TCP™200-30-06A can be used in applications such as Heat Sinking Housing at LED-lit BLU in LCD/LED TV and LED-lit lamps such as MR16. Also it can replace the normal Aluminum heat sink.

Features

> Good thermal conductivity:3.0W/mK
> Excellent thermal conductivity compared to normal engineering plastics
> Lighter than normal Aluminum housing 30% in weight
> Excellent mould ability in injection moulding
> Much higher production yield than normal Aluminum Die Casting
> Excellent flexibility in designing final products such as housings.

Typical Properties of TCP^TM200-30-06A
Items	Test method	Unit	Typical data
Physical Properties
Color	Visual	*****	White
Melt index	ASTM 1238	g/10min	9.8
Specific Gravity	ASTM D792	g/cm3	1.65
Shrinkage	ASTM D955	%	0.4~0.6
Mechanical Properties
Tensile Strength	ASTM D638	MPa	60
Flexural Strength	ASTM D790	MPa	106
Flexural Modulus	IASTM D638	MPa	8850
Impact Strength, notched	ASTM D256	kJ/m²	4.5
Electrical Properties
Dielectric Breakdown Voltage	ASTM D149	KV/mm	>10
Dielectric Constant, 1MHz	ASTM D150	*****	4.5
Volume Resistivity	ASTM D257	Ohm-meter	8.0 X 10¹²
Thermal Properties
Heat Deflection Temperature	ASTM D648	℃	150
Thermal Conductivity In Plane	ASTM D648	℃	120
Thermal Conductivity Throngh Plane	ASTM E5470	W/m-K	3.0
Flame retardancy	Min. thick. 1.0mm	Class	V-0
