Name: High Temperature Rohs Compliant Thermally Conductive Electrical Insulator Sheet For Car Battery
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIS100-02
Price: 4.10 USD
Availability: InStock

Home Products Thermally Conductive Electrical Insulator

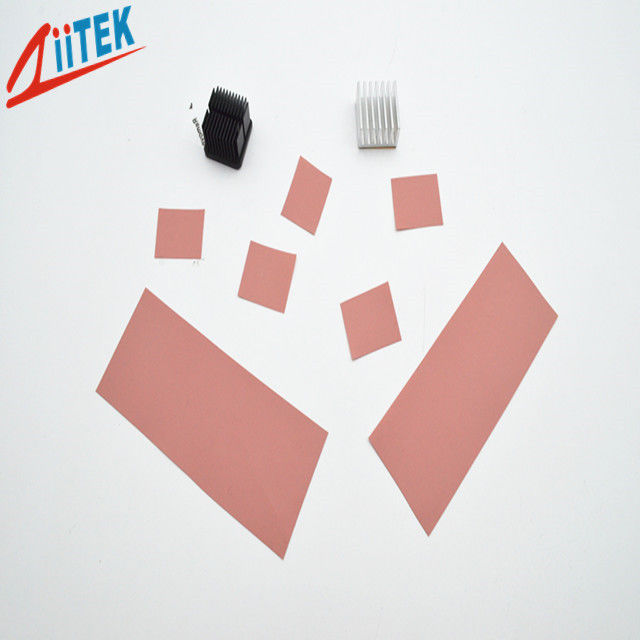

High Temperature Rohs Compliant Thermally Conductive Electrical Insulator Sheet For Car Battery

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL & RoHS
Model Number:	TIS100-02

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/pcs
Packaging Details:	242312CM
Delivery Time:	3-6 work days

Contact Now

Detailed Product Description

Products Name:	High Temperature Rohs Compliant Thermally Conductive Electrical Insulator Sheet For Car Battery	Continous Use Temp:	-45 To 180℃
Materials:	Ceramic Filled Silicone Elastomer / Fiberglass	Feature:	Low Thermal Resistance With High Voltage Isolation
Keyword:	Thermal Insulator Sheet	Sample:	Sample Available
Certificate:	UL & RoHS	Application:	Chip Heat Sink
Highlight:	Thermally Conductive Electrical Insulator Sheet , High Temperature Thermally Conductive Electrical Insulator , Car Battery Thermally Conductive Electrical Insulator

High Temperature Rohs Compliant Thermally Conductive Electrical Insulator sheet For Car Battery

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

TIS100-01-Serice-Datasheet.pdf

High Temperature Rohs Compliant Thermally Conductive Electrical Insulator Sheet For Car Battery 0

The TIS™100-01 Series products are the high-efficiency insulation oneswith thermal conduction properties.The supplement of the insulationbase film made by silica gel into the heat-conduction material creates agreat effect on both the insulation and heat conduction.

Features:

> Highly compliant surface characteristic with high thermal conductivity
> Good thermal conductive
> Moldability for complex parts
> Soft and compressible for low stress applications

Applications:

> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card

Typical Properties of TIS100-02 series
Product Name	TIS109-02	TIS112-02	TIS118-02	Test Method
Color	Pink			Visual
Construction &Compostion	Ceramic filled silicone elastomer / Fiberglass			*******
Composite Thickness	0.23mm	0.3mm	0.45mm	ASTM D374
Hardness	50 Shore A			ASTM D751
Specific Gravity	1.751g/cc			ASTM D297
Tensile Strength	425 Kpsi			ASTM D412
Continuous Use Temp	-45 to 180℃			*******
Dielectric Breakdown Voltage	>3500 VAC			ASTM D149
Dielectric Constant	5.5 MHz			ASTM D150
Volume Resistivity	4.0X10¹³ Ohm-meter			ASTM D257
Flame Rating	94 V0			E331100
Thermal conductivity	1.0 W/mK			ASTM D5470

Product Thicknesses

TIS 106-01: 0.15mm

TIS 108-01: 0.20mm

TIS 109-01: 0.23mm

TIS 110-01: 0.25mm

TIS 112-01: 0.30mm

TIS 118-01: 0.45mm

Product Sizes
12" x 160"(304mm x 48.76M)
lndividual die cut shapes and customthickness can be supplied.
Pleasecontact us for confirming.
The product come standard with fiberglass reinforcement designated bythe suffix " FG".

High Temperature Rohs Compliant Thermally Conductive Electrical Insulator Sheet For Car Battery 1

Packaging Details & Lead time

The packaging of Thermal insulation Pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Our services

Online-service : 12 hours , Inquiry reply within fastest.

Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.

High Temperature Rohs Compliant Thermally Conductive Electrical Insulator Sheet For Car Battery 2
