Thermal Insulation Materials Low Thermal Resistance for High Voltage Isolation

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHS
Model Number:	TIS112-05

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	0.1-10 USD/PCS
Packaging Details:	252413mm
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000 pcs/month

Contact Now

Detailed Product Description

Products Name:	Factory Sells Thermal Insulation Materials	Thermal Conductivity:	1.0W/mK
Keywords:	Thermal Insulation Materials	Compliance:	RoHS
Thickness:	0.3mm	Color:	Blue
Feature:	Low Thermal Resistant With High Voltage Isolation
Highlight:	Low Thermal Resistance Thermal Insulation Materials , High Voltage Isolation Thermal Insulation Materials

Factory Sells Thermal Insulation Materials

The TIS™112-05 Series products are the high-efficiency insulation ones with thermal conduction properties. The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.

TIS100-05-Serice-Datasheet-REV01.pdf

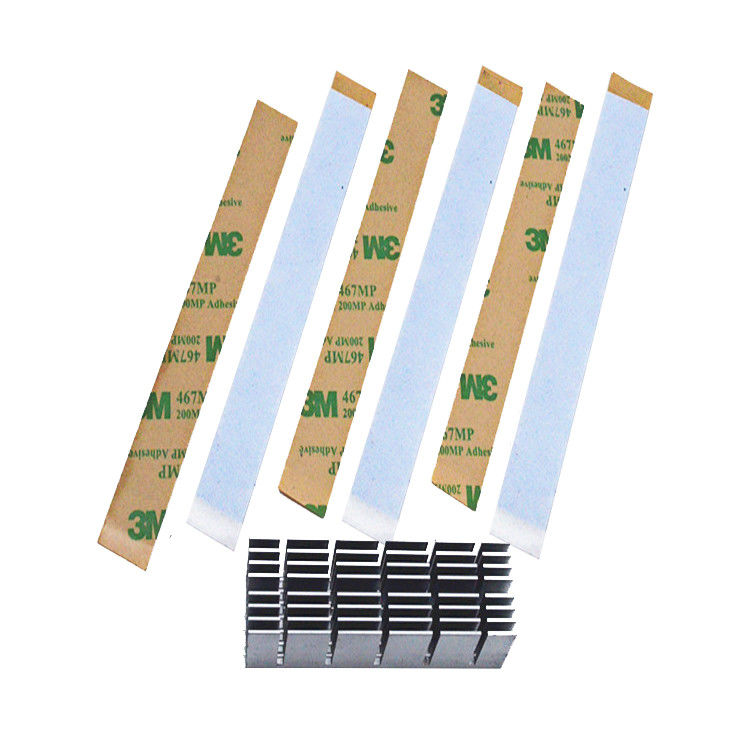

Thermal Insulation Materials Low Thermal Resistance for High Voltage Isolation 0

Features

> Available in varies thicknesses
> Broad range of hardnesses available
> Moldability for complex parts
> Outstanding thermal performance

Applications

> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics

Typical Properties of TIS100-05 series
Product Name	TIS109-05	TIS112-05	TIS118-05	Test Method
Color	blue			Visual
Construction &Compostion	Ceramic filled silicone elastomer / Fiberglass			*******
Composite Thickness	0.23mm	0.3mm	0.45mm	ASTM D374
Hardness	50 Shore 00			ASTM D751
Specific Gravity	1.72g/cc			ASTM D297
Tensile Strength	425 Kpsi			ASTM D412
Continuous Use Temp	-45 to 180℃			*******
Dielectric Breakdown Voltage	>3500 VAC			ASTM D149
Dielectric Constant	5.5 MHz			ASTM D150
Volume Resistivity	4.0X10¹³ Ohm-meter			ASTM D257
Flame Rating	94 V0			E331100
Thermal conductivity	1.0 W/mK			ASTM D5470

Standard Thicknesses:
0.009"(0.228mm)

0.012"(0.304mm)

0.018"(0.457mm)
Consult the factory alternate thickness.

Standard Sizes:
12" x 160"(304mm x 48.76M)
Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on doule side with "A2" suffix.

Packaging Details & Lead time

The packaging of Insulator Silicone Pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company profile

With professional R&D capabilities and over 18 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

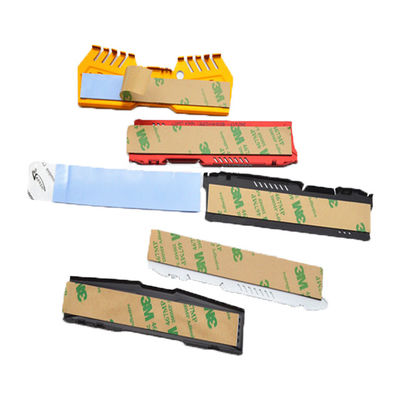

Thermal Insulation Materials Low Thermal Resistance for High Voltage Isolation 2

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Q: How much are the pads?

A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
