Name: Custom Laptop Insulation Sheet Silicone Hard Drive GPU CPU Thermal Conductive Pad Manufacturer Supplier
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF100-66U
Price: 4.10 USD
Availability: InStock

Home Products CPU Thermal Pad

Custom Laptop Insulation Sheet Silicone Hard Drive GPU CPU Thermal Conductive Pad Manufacturer Supplier

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL
Model Number:	TIF100-66U

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	0.1-10 USD/PCS
Packaging Details:	252413cm canton
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Products Name:	Manufacturer Supplier Custom Laptop Insulation Sheet Silicone Hard Drive GPU CPU Thermal Conductive Pad	Thermal Conductivity:	1.2 W/mK
Color:	Green	Hardness:	27±5 Shore 00
Material:	Ceramic Filled Silicon Elastomer	Specific Gravity:	2.1g/cm³
Keywords:	Thermal Conductive Pad
Highlight:	Custom Laptop Insulation Sheet , GPU CPU Thermal Conductive Pad , Silicone Hard Drive Thermal Conductive Pad

Manufacturer Supplier Custom Laptop Insulation Sheet Silicone Hard Drive GPU CPU Thermal Conductive Pad

Company Profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

Product introduction

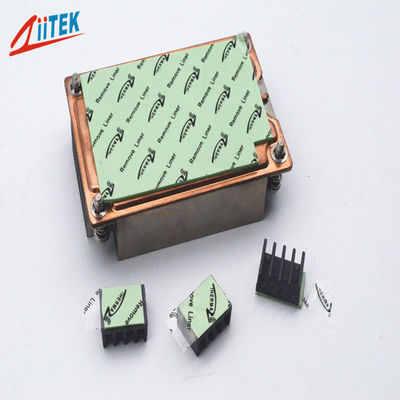

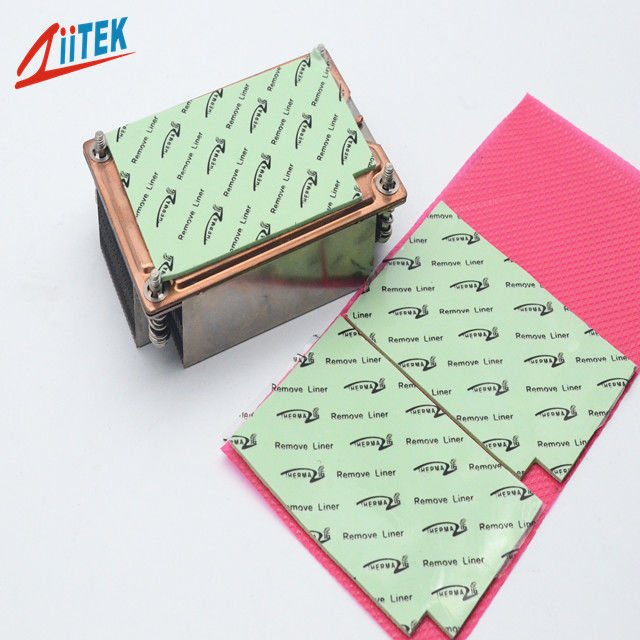

The TIF™100-66U Series thermally conductive interface materials are applied to fill theair gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elementsor even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.

Features

> Outstanding thermal performance 1.2 W/mK

> Naturally tacky needing no furtheradhesive coating

> Soft and Compressible for low stress applications
> Available in varies thickness

Applications

> CPU
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components

Typical Properties of TIF 100-66U
Product Name	TIF100-66U Series
Color	Green
Construction & Compostion	Ceramic filled silicone elastomer
Specific Gravity	2.1g/cc
Hardness	27±5 Shore 00
Continuos Use Temp	-40 to 160℃
Dielectric Breakdown Voltage(T=1.0mm,Vac)	≥5500 VAC
Dielectric constant @1MHz4.0	4.0
Volume Resistivity	≥1.0x10¹²Ohm-cm
Thermal conductivity	1.2 W/mK
Thickness	0.5mm to 5.0mmT
Flame Rating	94-V0

Standard Thicknesses:
0.010" (0.25mm),0.020" (0.51mm),0.030" (0.76mm),0.040" (1.02mm),

0.050" (1.27mm),0.060" (1.52mm),0.070" (1.78mm),0.080" (2.03mm),

0.090" (2.29mm),0.100" (2.54mm),0.110" (2.79mm),0.120" (3.05mm),

0.130" (3.30mm),0.140" (3.56mm),0.150" (3.81mm),0.160" (4.06mm),

0.170" (4.32mm) 0.180" (4.57mm),0.190" (4.83mm),0.200" (5.08mm)

Consult the factory alternate thickness.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Our services

Online-service : 12 hours , Inquiry reply within fastest.

Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.
