Name: Gray Silicone Thermal Insulation Materials Thermal Conductive Cooling Pad For Car Battery
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIS807-09-01
Price: 4.10 USD
Availability: InStock

Home Products Thermally Conductive Electrical Insulator

Gray Silicone Thermal Insulation Materials Thermal Conductive Cooling Pad For Car Battery

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL & RoHS
Model Number:	TIS807-09-01

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/pcs
Packaging Details:	241312cm cartons
Delivery Time:	3-6 work days

Contact Now

Detailed Product Description

Product Name:	Gray Silicone Thermal Insulation Materials Thermal Conductive Cooling Pad For Car Battery	Application:	Car Battery
Continous Use Temp:	-60 To 180℃	Compliance:	UL & RoHS
Materials:	Ceramic Filled Silicone Elastomer / Fiberglass	Feature:	Low Thermal Resistant With High Voltage Isolation
Thermal Conductive:	0.9W/mK	Keyword:	Thermal Insulation Materials

Gray Silicone Thermal Insulation Materials Thermal Conductive Cooling Pad For Car Battery

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

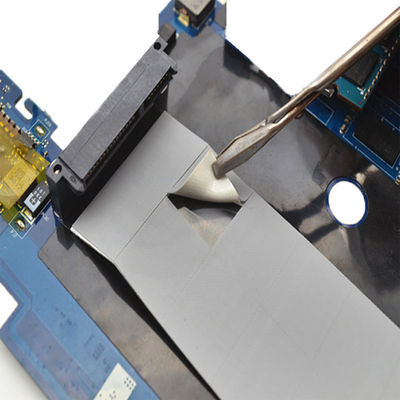

The TIS^®807-09-01 Series is acomposite of silicone rubber and fiberglass .Thematerial is flame retardant and is specially formulated for use asa thermakky conductive insulator,The primary use for TIS800 isto electrically isolate power sources from heat sinks.TIS 800 hasexcellent mechanical and physical characteristics.Surfaces arepliable and allow complete surface contact with excellent heat.

Features:
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures

Applications:
> Car Battery & Power Supply

> Power semiconductors
> Audio and Video components

> Motor controllers

Typical Properties of TIS^®807-09-01 Series
Property	Value	Test Method
Color	Gray	Visual
Construction &Compostion	Ceramic filled silicone elastomer /fiberglass	******
Thickness range	0.007inch (0.178mm)	ASTM D374
Tensile Strength(MPa)	50	ASTM D412
Density	2.4 g/cc	ASTM D297
Continuos Use Temp	-60 to 180℃	******
Breakdown Voltage(V/mm)	3500	ASTM D149
Dielectric Constant @ 1MHz	5.5	ASTM D150
Volume Resistivity	1.0X10¹² Ohm-meter	ASTM D257
Fire rating	94 V0	equivalent UL
Thermal conductivity	0.9W/m-K	ASTM D5470
Thermal impedance(℃-in²/W)@30psi	1.32	ASTM D5470

Standard Thicknesses

0.007inch (0.178mm)

Standard Sizes
12" x 160"(304mm x 48.76M)

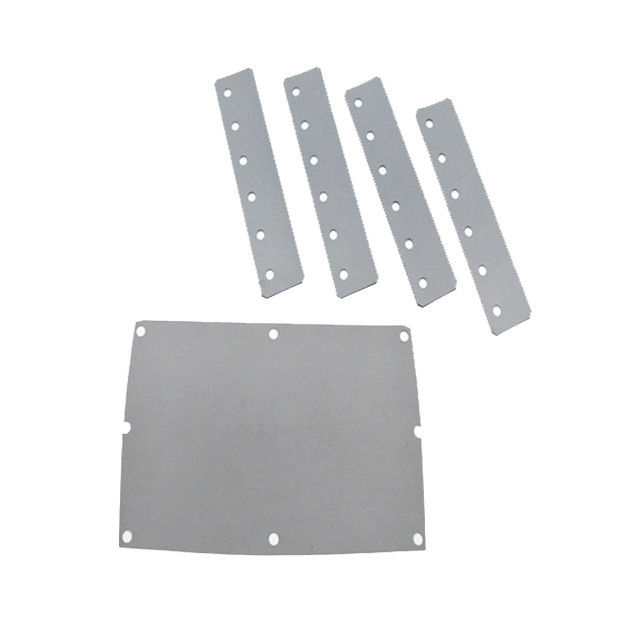

The TlS series can be die-cut into different shapes and provided. lf you need different thicknesses, please contact our company.

Gray Silicone Thermal Insulation Materials Thermal Conductive Cooling Pad For Car Battery 0

Packaging Details & Lead time

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Our services

Online-service : 12 hours , Inquiry reply within fastest.

Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.
