Name: Fiberglass Silicone Insulation Pad for Heat Dissipation in Ceramic Filled Silicone Elastomer
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIS809-16-02
Price: 4.10 USD
Availability: InStock

Home Products Thermally Conductive Electrical Insulator

Fiberglass Silicone Insulation Pad for Heat Dissipation in Ceramic Filled Silicone Elastomer

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL & RoHS
Model Number:	TIS809-16-02

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/pcs
Packaging Details:	241312cm cartons
Delivery Time:	3-6 work days

Contact Now

Detailed Product Description

Product Name:	Factory Direct Sale Fiberglass Thermally Conductive Insulator Pad Efficient Heat Dissipation Silicone Insulation Pad	Materials:	Ceramic Filled Silicone Elastomer / Fiberglass
Feature:	Low Thermal Resistant With High Voltage Isolation	Thermal Conductive:	1.6W/mK
Continous Use Temp:	-60 To 180℃	Compliance:	UL & RoHS
Color:	Pink	Application:	Car Battery & Power Supply
Keyword:	Silicone Insulation Pad
Highlight:	Ceramic Filled Silicone Insulation Pad , Heat Dissipation Silicone Insulation Pad , Fiberglass Silicone Insulation Pad

Factory Direct Sale Fiberglass Thermally Conductive Insulator Pad Efficient Heat Dissipation Silicone Insulation Pad

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

The TIS^®809-16-02 Series of products are highly efficient insulating products and they also have thermal conductivity. It achieves the effect of both insulation and heat conduction by adding insulating silicone base material to the heat-conducting material.

Features:
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures

Applications:
> Car Battery & Power Supply

> Power semiconductors
> Audio and Video components

> Motor controllers

Typical Properties of TIS^®809-16-02 Series
Property	Value	Test Method
Color	Pink	Visual
Construction &Compostion	Ceramic filled silicone elastomer /fiberglass	******
Thickness range	0.009inch (0.229mm)	ASTM D374
Tensile Strength(MPa)	50	ASTM D412
Density	2.4 g/cc	ASTM D297
Continuos Use Temp	-60 to 180℃	******
Breakdown Voltage(V/mm)	5500	ASTM D149
Dielectric Constant @ 1MHz	6.0	ASTM D150
Volume Resistivity	1.0X10¹² Ohm-meter	ASTM D257
Fire rating	94 V0	UL94(E331100)
Thermal conductivity	1.6W/m-K	ASTM D5470
Thermal impedance(℃-in²/W)@30psi	0.65	ASTM D5470

Standard Thicknesses

0.009inch (0.229mm)

Standard Sizes
12" x 160"(304mm * 48.76M)

The TlS series can be die-cut into different shapes and provided. lf you need different thicknesses, please contact our company.

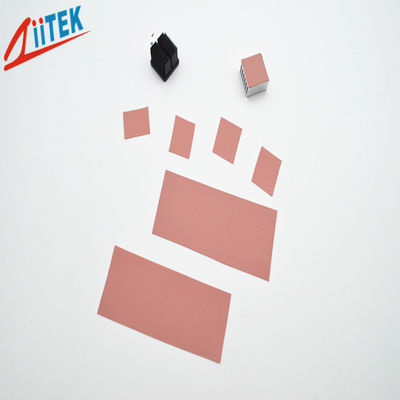

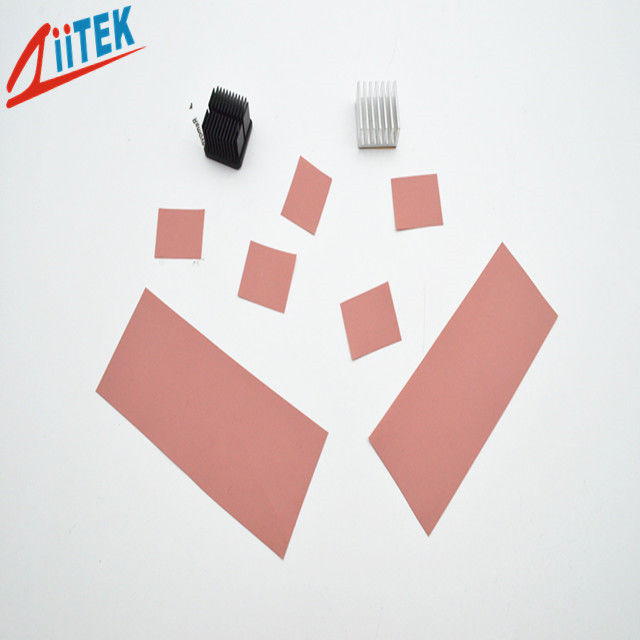

Fiberglass Silicone Insulation Pad for Heat Dissipation in Ceramic Filled Silicone Elastomer 0

Packaging Details & Lead time

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Independent R&D team

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online.
