Name: Excellent Thermal Resistance Thermal Insulator Pad For Electronic Components
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIS806K-09-01
Price: 4.10 USD
Availability: InStock

Home Products Thermally Conductive Electrical Insulator

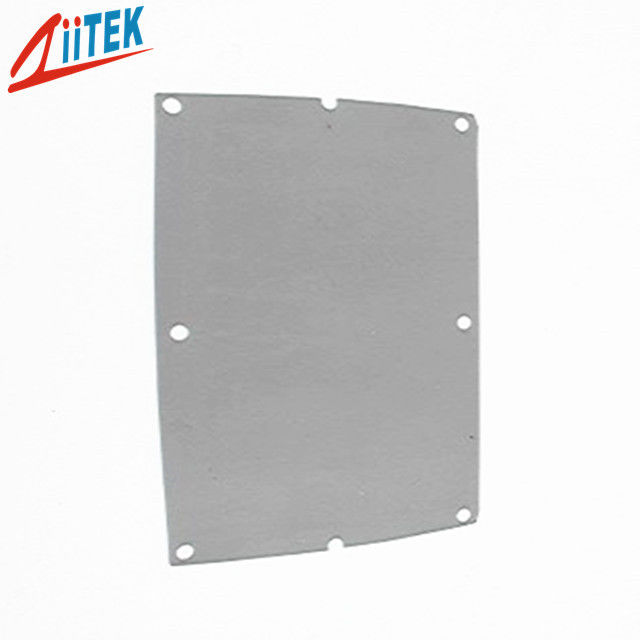

Excellent Thermal Resistance Thermal Insulator Pad For Electronic Components

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL & RoHS
Model Number:	TIS806K-09-01

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/pcs
Packaging Details:	241312cm cartons
Delivery Time:	3-6 work days

Contact Now

Detailed Product Description

Product Name:	Excellent Thermal Resistance Thermal Insulator Pad For Electronic Components	Materials:	Ceramic Filled Silicone Elastomer / Polyimide Film
Feature:	Low Thermal Resistant With High Voltage Isolation	Thermal Conductive:	0.9W/mK
Continous Use Temp:	-60 To 180℃	Compliance:	UL & RoHS
Color:	Gray	Application:	Electronic Components
Keyword:	Thermal Insulator Pad	Thickness Range(inch/mm):	0.006/0.152

Excellent Thermal Resistance Thermal Insulator Pad For Electronic Components

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

The TIS^®806K-09-01 Series of products are highly efficient insulating products and they also have thermal conductivity. It achieves the effect of both insulation and heat conduction by adding insulating silicone base material to the heat-conducting material.

Features:
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures

Applications:
> Car Battery & Power Supply

> Power semiconductors
> Audio and Video components

> Motor controllers

Typical Properties of TIS^®806K-09-01 Series
Property	Value	Test Method
Color	Gray	Visual
Construction &Compostion	Ceramic filled silicone elastomer /Polyimide film	******
Thickness range	0.006inch (0.152mm)	ASTM D374
Tensile Strength(MPa)	40	ASTM D412
Density	2.4 g/cc	ASTM D297
Continuos Use Temp	-60 to 180℃	******
Breakdown Voltage(V/mm)	6000	ASTM D149
Dielectric Constant @ 1MHz	5.0	ASTM D150
Volume Resistivity	1.0X10¹² Ohm-meter	ASTM D257
Fire rating	94 V0	UL94(E331100)
Thermal conductivity	0.9W/m-K	ASTM D5470
Thermal impedance(℃-in²/W)@30psi	0.58	ASTM D5470

Standard Thicknesses

0.006inch (0.152mm)

Standard Sizes
12" x 160"(304mm * 48.76M)

The TlS series can be die-cut into different shapes and provided. lf you need different thicknesses, please contact our company.

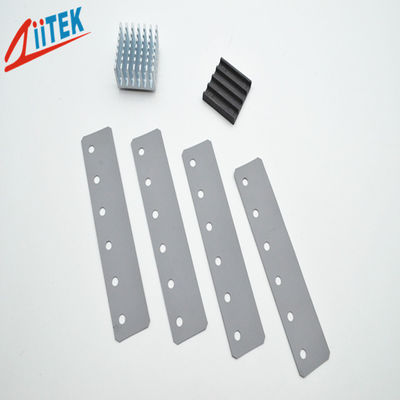

Excellent Thermal Resistance Thermal Insulator Pad For Electronic Components 0

Packaging Details & Lead time

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials.

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract.

5.Free sample offer.

6.Quality assurance contract.
