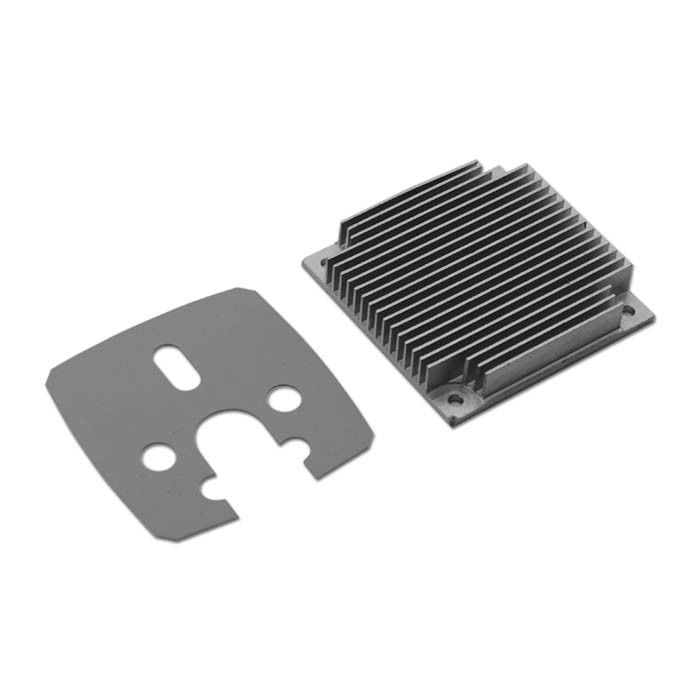

LTD Thermal Insulation Pad Customized Silicon Thermal Insulation Sheet Thermal Insulator Materials For CPU
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
The TIS®809-09-01 Series of products are highly efficient insulating products and they also have thermal conductivity. It achieves the effect of both insulation and heat conduction by adding insulating silicone base material to the heat-conducting material.
Features:
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures
> Easy release construction
> RoHS compliant
> UL recognized
Applications:
> Car Battery & Power Supply
> Power semiconductors
> Audio and Video components
> Motor controllers
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
| Typical Properties of TIS®800-09-01 Series |
| Property |
Value |
Test Method |
| Color |
Gray |
Visual |
| Construction &Compostion |
Ceramic filled silicone elastomer /Polyimide film |
****** |
| Thickness range |
0.009inch (0.229mm)
|
ASTM D374 |
| Tensile Strength(MPa) |
20 |
ASTM D412 |
| Density |
2.4 g/cc |
ASTM D297 |
| Continuos Use Temp |
-60 to 180℃ |
****** |
| Breakdown Voltage(V/mm) |
4500 |
ASTM D149 |
| Dielectric Constant @ 1MHz |
5.5
|
ASTM D150 |
| Volume Resistivity |
1.0X1013 Ohm-meter |
ASTM D257 |
| Fire rating |
94 V0 |
UL94(E331100) |
| Thermal conductivity |
0.9W/m-K |
ASTM D5470 |
| Thermal impedance(℃-in²/W)@30psi |
1.73 |
ASTM D5470 |
Standard Thicknesses
0.009inch (0.229mm)
Standard Sizes
12" x 160"(304mm * 48.76M)
The TlS series can be die-cut into different shapes and provided. lf you need different thicknesses, please contact our company.
Packaging Details & Lead time
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
