Name: Factory Custom Size Battery Led Laptop Termal Pad 2W 1.5mm Silicone Themals Conductive Pads
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF560-20-11US
Price: 4.10 USD
Availability: InStock

Home Products CPU Thermal Pad

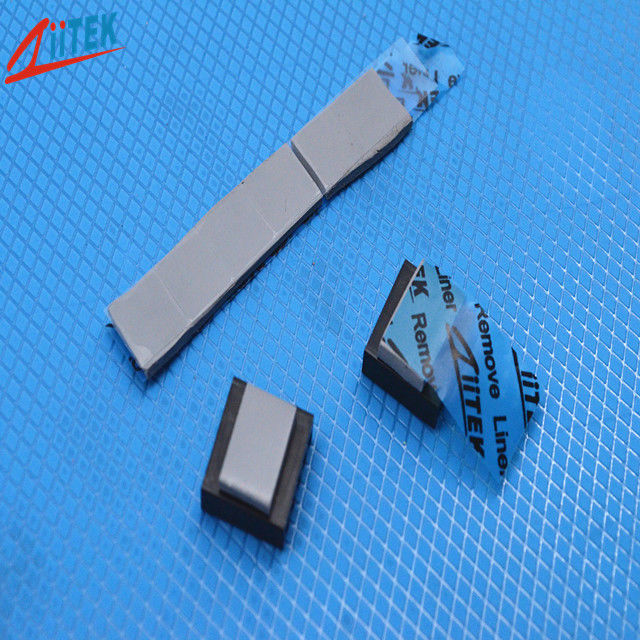

Factory Custom Size Battery Led Laptop Termal Pad 2W 1.5mm Silicone Themals Conductive Pads

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL & RoHS
Model Number:	TIF560-20-11US

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm cartons
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	1000000 pcs/month

Contact Now

Detailed Product Description

Products Name:	Factory Custom Size Battery Led Laptop Termal Pad 2W 1.5mm Silicone Themals Conductive Pads	Thickness:	1.5mmT
Keywords:	Led Termal Pad	Specific Gravity:	2.5g/cc
Dielectric Breakdown Voltage:	>5500 VAC	Thermal Conductivity:	2.0W/m-K
Color:	Dark Gray	Operating Temp:	-40~200℃
Application:	LED CPU GPU MOS Laptop
Highlight:	Led Laptop Termal Pad , 1.5mm Silicone Themals Conductive Pads , 2W Silicone Themals Conductive Pads

Factory Custom Size Battery Led Laptop Termal Pad 2W 1.5mm Silicone Themals Conductive Pads

Company Profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

Product introduction

TIF^®560-20-11US Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely_sensitive to mechanical stress. This product combines high thermal conductivity with an exceptionally gel-like softness, achieving a low-stress perfect fit. It is suitable for addressing issues in high-precision assemblies, such as large tolerances, uneven surfaces, and the susceptibility of delicate components to mechanical damage.

Features
> Good thermal conductive: 2.0W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Easy release construction
> Electrically isolating
> High durability

Applications
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU

Typical Properties of TIF^®500-20-11US Series
Property	Value		Test method
Color	Dark Gray		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	2.5		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.50)	(0.75~5.0)
Hardness	65 Shore 00	20 Shore 00	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	4.5 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Flame rating	V-0		UL94 (E331100)
Thermal conductivity	2.0 W/m-K		ASTM D5470
	2.0 W/m-K		ISO22007

Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X 16" (406 mm×406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Packaging Details & Lead time

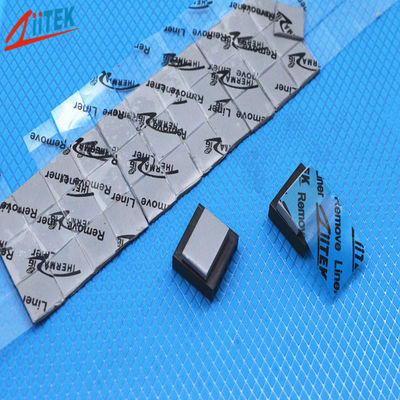

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Factory Custom Size Battery Led Laptop Termal Pad 2W 1.5mm Silicone Themals Conductive Pads 0

Independent R&D team

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online.

Tag:

laptop gpu thermal pad,

cpu cooling pad,

notebook thermal pad

Contact Details

Dongguan Ziitek Electronical Material and Technology Ltd.

Contact Person: Dana Dai

Tel: +86 18153789196
